Lincoln Aviator: Body Closures / General Procedures - Liftgate Alignment
Special Tool(s) /
General Equipment
Materials
| Name |
Specification |
Seam Sealer TA-2-B, 3M™ 08308, LORD Fusor® 803DTM |
-
|
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments
-

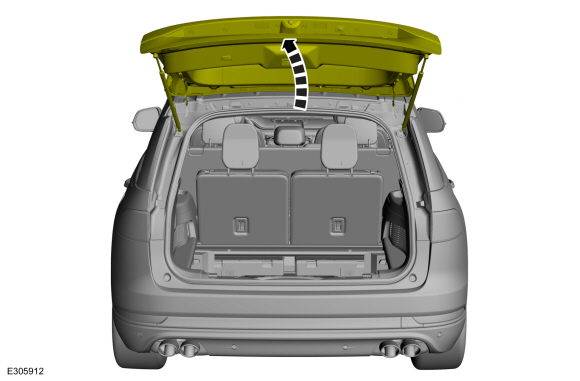

Open the liftgate.
-

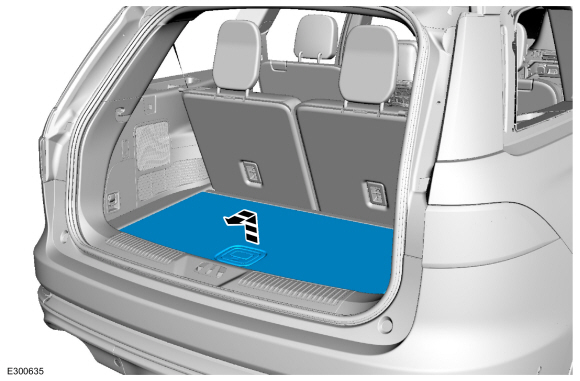

Remove the luggage compartment floor covering.
-

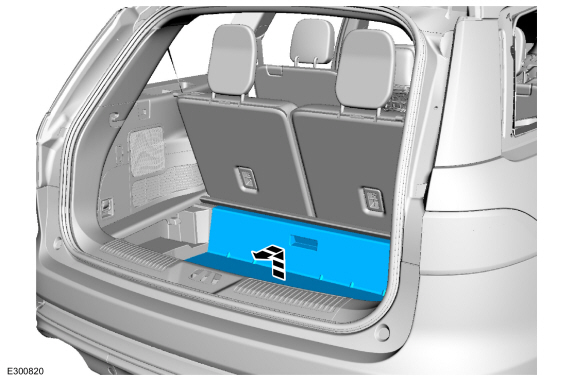

Remove the luggage compartment spare tire cover.
-
Position the liftgate opening weatherstrip aside.
-

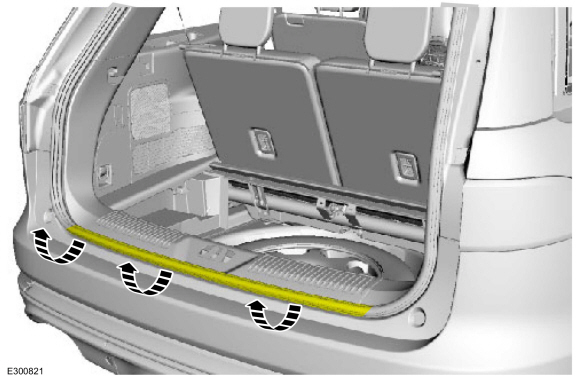

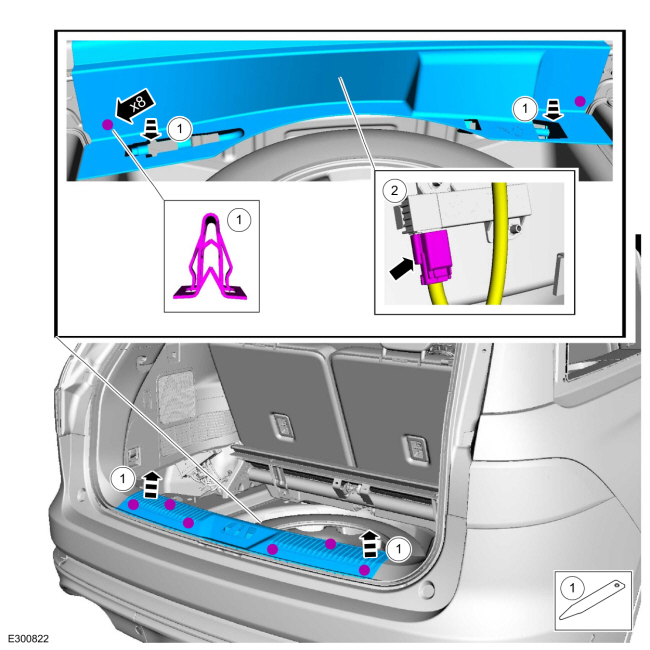

Remove the liftgate scuff plate trim panel.
-
Release the liftgate scuff plate trim panel clips.
Use the General Equipment: Interior Trim Remover
-
If equipped
Disconnect the keyless entry rear antenna electrical connector.
-

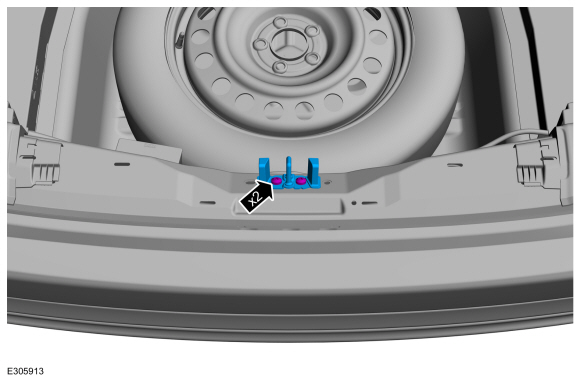

Remove the liftgate striker.
Torque:
18 lb.ft (25 Nm)
Liftgate left and right, up and down alignment
-

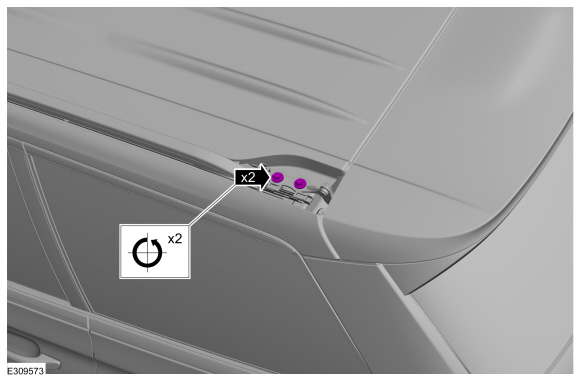

Loosen the bolts.
Loosen:
:
2 turn(s)
-

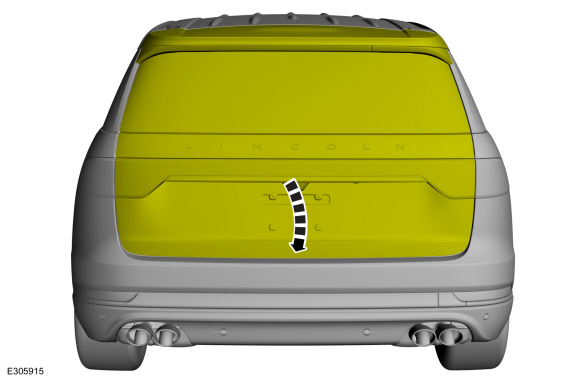

Carefully close the liftgate.
-
Adjust the liftgate as required.
-
Carefully open the liftgate.
-
Tighten the bolts.
Torque:
22 lb.ft (30 Nm)
Liftgate in and out alignment
-

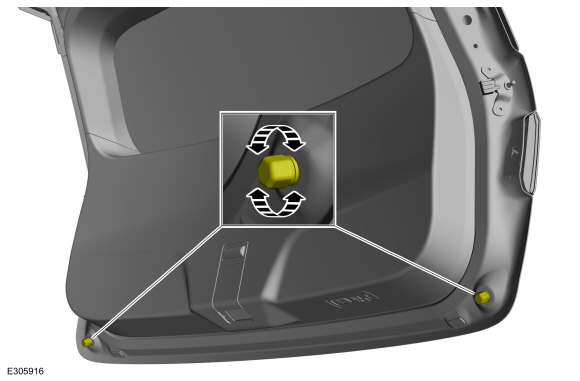

Adjust the stops.
-
On both sides
-

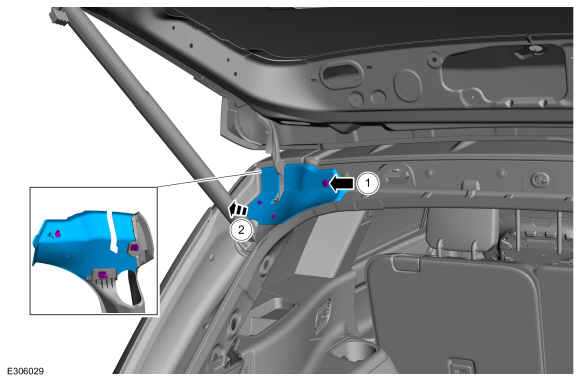

Remove the retainer.
-

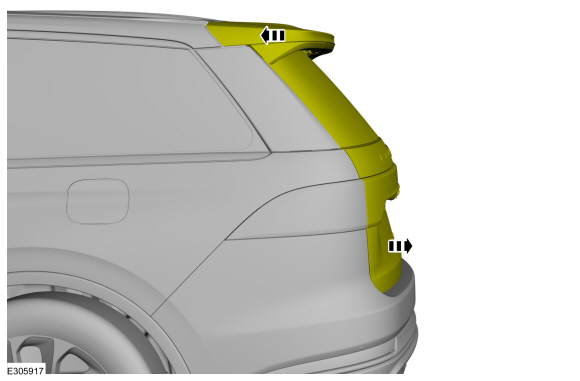

Gently pull and remove the drip moulding cover.
-
On both sides

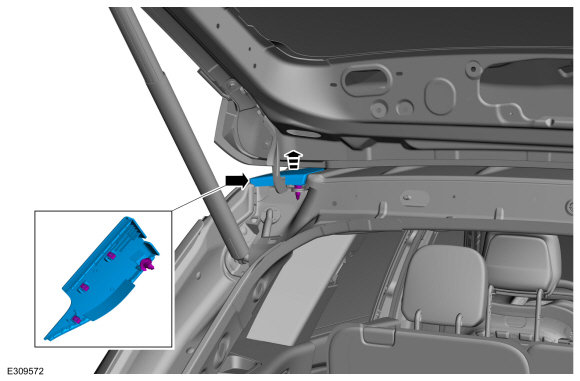

Remove the hinge cover.
-
Carefully close the liftgate.
-
On both sides

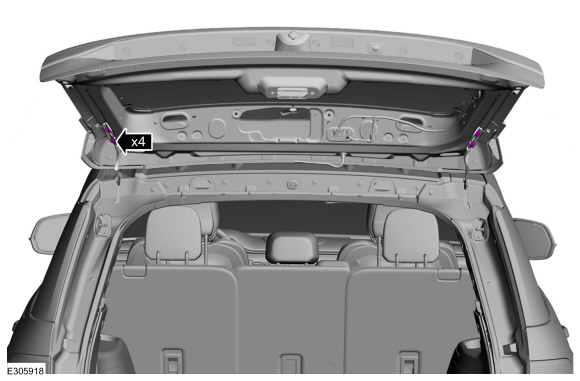

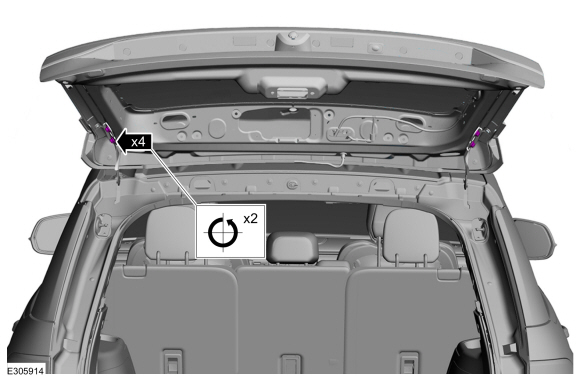

Loosen the bolts.
Loosen:
:
2 turn(s)
-
Adjust the liftgate as required.
-
On both sides
Tighten the bolts.
Torque:
22 lb.ft (30 Nm)
-
On both sides

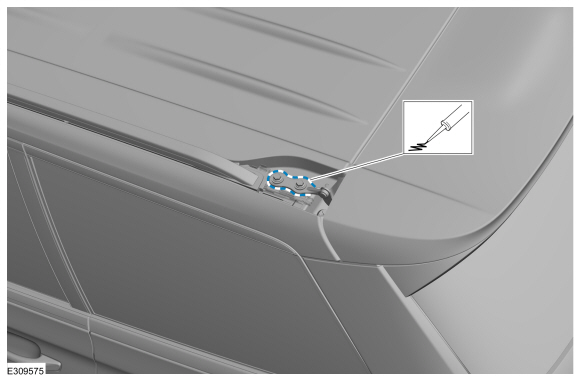

Apply seam sealer.
Material: Seam Sealer
/ TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
All alignments
-

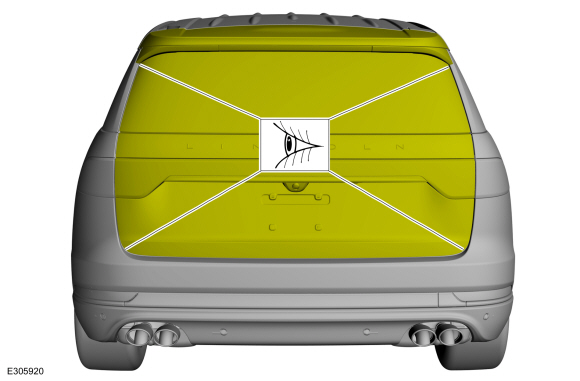

Inspect the body-to-liftgate door alignment.
-
Install the position aside and removed components.
-
If equipped with power liftgate, carry out the power liftgate initialization.
Refer to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
All alignments
Remove the hood latch.
Refer to: Hood Latch (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation)...
Initialization
Disconnect the battery or remove the RGTM fuse(s).
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures)...
