Lincoln Aviator 2020-2026 Service Manual / Chassis / Suspension / Suspension System - General Information / General Procedures - Rear Camber Adjustment

Lincoln Aviator: Suspension System - General Information / General Procedures - Rear Camber Adjustment

Special Tool(s) / General Equipment

Wheel Alignment System

Adjustment

NOTICE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

Using alignment equipment and the manufacturer's instructions, measure the rear camber.
Use the General Equipment: Wheel Alignment System

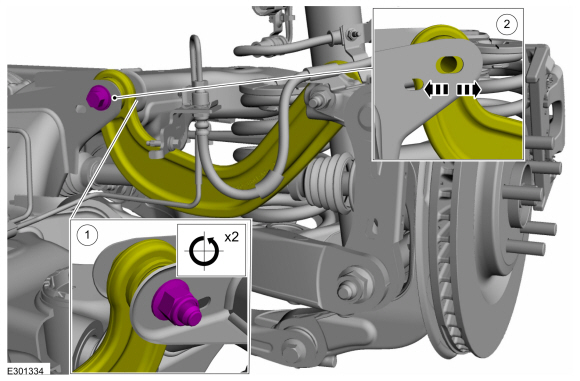

1. Loosen the upper arm-to-frame bolt counterclockwise (CCW) through 2 complete turns.
  Torque: 129 lb.ft (175 Nm)
1. Move the upper arm inboard or outboard to adjust rear camber as necessary.

Recheck alignment to verify camber change and adjust rear toe if necessary.
Refer to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
