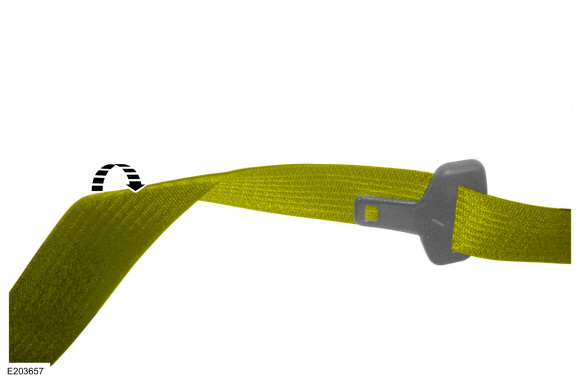

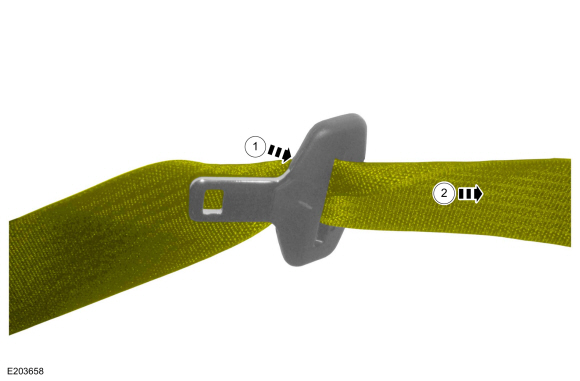

Lincoln Aviator: Seatbelt Systems / General Procedures - Seatbelt Tongue Rotated On Belt

General Procedures - Seatbelt System Functional Tests

Check Functional Test - Seatbelt Buckle and Tongue   WARNING: All seatbelt components must be inspected and corrected as part of any collision repair...

General Procedures - Seatbelt Twisted at the Seatbelt Guide

Adjustment NOTE: Typical D-ring shown, others similar. If required, remove the necessary trim panel(s). Fold the seatbelt as indicated...

Other information:

Lincoln Aviator 2020-2022 Service Manual: Removal and Installation - Generator - 3.0L EcoBoost

Removal NOTE: Removal steps in this procedure may contain installation details. Disconnect the battery. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures). Remove the air cleaner...

Lincoln Aviator 2020-2022 Service Manual: Diagnosis and Testing - Airbag Supplemental Restraint System (SRS)

Diagnostic Trouble Code (DTC) Chart Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).   Diagnostic Trouble Code Chart Module   DTC Description Action   BCM B00A0:11 Occupant Classification System: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B00A0:12 Occupant Classification System: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B1123:11 Restraints Ignition Relay: Circuit Short to Ground   GO to Pinpoint Test BN   BCM B1123:12 Restraints Ignition Relay: Circuit Short to Battery   GO to Pinpoint Test BN   BCM B11D8:01 Restraint Event Notification: General Electrical Failure   GO to Pinpoint Test U   DCME B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMF B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AX   DCMG B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   DCMH B1262:92 Crash Input Mismatch - CAN Active, Hardware Inactive: Performance Or Incorrect Operation   GO to Pinpoint Test AY   FCIM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   FCIM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   OCSM B0061:11 Passenger Seatbelt Tension Sensor: Circuit Short to Ground   GO to Pinpoint Test BC   OCSM B0061:12 Passenger Seatbelt Tension Sensor: Circuit Short to Battery   GO to Pinpoint Test BC   OCSM B0061:13 Passenger Seatbelt Tension Sensor: Circuit Open   GO to Pinpoint Test BC   OCSM B0061:64 Passenger Seatbelt Tension Sensor: Signal Plausibility Failure   GO to Pinpoint Test BC   OCSM B00A0:62 Occupant Classification System: Signal Compare Failure   GO to Pinpoint Test BD   OCSM B00C0:11 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Ground   GO to Pinpoint Test BE   OCSM B00C0:12 Passenger Seat Occupant Classification Sensor "A": Circuit Short To Battery   GO to Pinpoint Test BE   OCSM B00C0:16 Passenger Seat Occupant Classification Sensor "A": Circuit Voltage Below Threshold   GO to Pinpoint Test BE   OCSM B00C0:49 Passenger Seat Occupant Classification Sensor "A": Internal Electronic Failure   GO to Pinpoint Test BE   OCSM B00C0:7B Passenger Seat Occupant Classification Sensor "A": Low Fluid Level   GO to Pinpoint Test BE   OCSM B00C2:11 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Ground   GO to Pinpoint Test BF   OCSM B00C2:12 Passenger Seat Occupant Classification Sensor "C": Circuit Short to Battery   GO to Pinpoint Test BF   OCSM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test BG   OCSM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test BH   OCSM U0151:00 Lost Communication with Restraints Control Module: No Sub Type Information   GO to Pinpoint Test BI   OCSM U024C:00 Lost Communication with Seat Control Module "H": No Sub Type Information   GO to Pinpoint Test BJ   OCSM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test BK   OCSM U3000:41 Control Module: General Checksum Failure   GO to Pinpoint Test BL   OCSM U3000:42 Control Module: General Memory Failure   GO to Pinpoint Test BL   OCSM U3000:46 Control Module: Special Memory Failure   GO to Pinpoint Test BL   OCSM U3000:54 Control Module: Missing Calibration   GO to Pinpoint Test BM   OCSM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   OCSM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB   RCM B0001:11 Driver Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test A   RCM B0001:12 Driver Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test A   RCM B0001:13 Driver Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test A   RCM B0001:1A Driver Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test A   RCM B0001:2B Driver Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0001:4A Driver Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0002:11 Driver Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test B   RCM B0002:12 Driver Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test B   RCM B0002:13 Driver Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test B   RCM B0002:1A Driver Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test B   RCM B0002:2B Driver Frontal Stage 2 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0002:4A Driver Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0004:11 Driver Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test C   RCM B0004:12 Driver Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test C   RCM B0004:13 Driver Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test C   RCM B0004:1A Driver Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test C   RCM B0004:2B Driver Knee Bolster Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0004:4A Driver Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0010:11 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test D   RCM B0010:12 Passenger Frontal Stage 1 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test D   RCM B0010:13 Passenger Frontal Stage 1 Deployment Control: Circuit Open   GO to Pinpoint Test D   RCM B0010:1A Passenger Frontal Stage 1 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test D   RCM B0010:2B Passenger Frontal Stage 1 Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0010:4A Passenger Frontal Stage 1 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0011:11 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Ground   GO to Pinpoint Test E   RCM B0011:12 Passenger Frontal Stage 2 Deployment Control: Circuit Short to Battery   GO to Pinpoint Test E   RCM B0011:13 Passenger Frontal Stage 2 Deployment Control: Circuit Open   GO to Pinpoint Test E   RCM B0011:1A Passenger Frontal Stage 2 Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test E   RCM B0011:2B Passenger Frontal Stage 2 Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0011:4A Passenger Frontal Stage 2 Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0013:11 Passenger Knee Bolster Deployment Control: Circuit Short to Ground   GO to Pinpoint Test F   RCM B0013:12 Passenger Knee Bolster Deployment Control: Circuit Short to Battery   GO to Pinpoint Test F   RCM B0013:13 Passenger Knee Bolster Deployment Control: Circuit Open   GO to Pinpoint Test F   RCM B0013:1A Passenger Knee Bolster Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test F   RCM B0013:2B Passenger Knee Bolster Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0013:4A Passenger Knee Bolster Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0050:11 Driver Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test G   RCM B0050:12 Driver Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test G   RCM B0050:13 Driver Seatbelt Sensor: Circuit Open   GO to Pinpoint Test G   RCM B0050:1D Driver Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test G   RCM B0050:2B Driver Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0050:4A Driver Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0052:11 Passenger Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test H   RCM B0052:12 Passenger Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test H   RCM B0052:13 Passenger Seatbelt Sensor: Circuit Open   GO to Pinpoint Test H   RCM B0052:1D Passenger Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test H   RCM B0052:2B Passenger Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B0052:4A Passenger Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0054:11 Second Row Center Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test I   RCM B0054:12 Second Row Center Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test I   RCM B0054:13 Second Row Center Seatbelt Sensor: Circuit Open   GO to Pinpoint Test I   RCM B0054:1D Second Row Center Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test I   RCM B0054:2B Second Row Center Seatbelt Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0054:4A Second Row Center Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0070:11 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test J   RCM B0070:12 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test J   RCM B0070:13 Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test J   RCM B0070:1A Driver Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test J   RCM B0070:2B Driver Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0070:4A Driver Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0072:11 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test K   RCM B0072:12 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test K   RCM B0072:13 Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Open   GO to Pinpoint Test K   RCM B0072:1A Passenger Seatbelt Pretensioner "A" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test K   RCM B0072:2B Passenger Seatbelt Pretensioner "A" Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0072:4A Passenger Seatbelt Pretensioner "A" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007E:11 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test L   RCM B007E:12 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test L   RCM B007E:13 Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test L   RCM B007E:1A Driver Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test L   RCM B007E:2B Driver Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007E:4A Driver Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B007F:11 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Ground   GO to Pinpoint Test M   RCM B007F:12 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Short to Battery   GO to Pinpoint Test M   RCM B007F:13 Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Open   GO to Pinpoint Test M   RCM B007F:1A Passenger Seatbelt Pretensioner "C" Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test M   RCM B007F:2B Passenger Seatbelt Pretensioner "C" Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B007F:4A Passenger Seatbelt Pretensioner "C" Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B0082:11 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Ground   GO to Pinpoint Test N   RCM B0082:12 Passenger Seatbelt Load Limiter Deployment Control: Circuit Short to Battery   GO to Pinpoint Test N   RCM B0082:13 Passenger Seatbelt Load Limiter Deployment Control: Circuit Open   GO to Pinpoint Test N   RCM B0082:1A Passenger Seatbelt Load Limiter Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test N   RCM B0082:2B Passenger Seatbelt Load Limiter Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B0082:4A Passenger Seatbelt Load Limiter Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:09 Occupant Classification System: Component Failure   GO to Pinpoint Test O   RCM B00A0:4A Occupant Classification System: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00A0:63 Occupant Classification System: Circuit / Component Protection Time-Out   GO to Pinpoint Test O   RCM B00A0:64 Occupant Classification System: Signal Plausibility Failure   GO to Pinpoint Test O   RCM B00A0:68 Occupant Classification System: Event Information   GO to Pinpoint Test O   RCM B00B5:11 Driver Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test P   RCM B00B5:12 Driver Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test P   RCM B00B5:13 Driver Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test P   RCM B00B5:1D Driver Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test P   RCM B00B5:2B Driver Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00B5:4A Driver Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00C5:11 Passenger Seat Track Position Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test Q   RCM B00C5:12 Passenger Seat Track Position Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test Q   RCM B00C5:13 Passenger Seat Track Position Restraints Sensor: Circuit Open   GO to Pinpoint Test Q   RCM B00C5:1D Passenger Seat Track Position Restraints Sensor: Circuit Current Out of Range   GO to Pinpoint Test Q   RCM B00C5:2B Passenger Seat Track Position Restraints Sensor: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B00C5:4A Passenger Seat Track Position Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B00D5:01 Restraint System Passenger Disable Indicator: General Electrical Failure   GO to Pinpoint Test R   RCM B00D5:4A Restraint System Passenger Disable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1193:00 Crash Event Storage Full and Locked: No Sub Type Information   GO to Pinpoint Test S   RCM B11CF:11 Passenger Frontal Airbag Canister Vent: Circuit Short to Ground   GO to Pinpoint Test T   RCM B11CF:12 Passenger Frontal Airbag Canister Vent: Circuit Short to Battery   GO to Pinpoint Test T   RCM B11CF:13 Passenger Frontal Airbag Canister Vent: Circuit Open   GO to Pinpoint Test T   RCM B11CF:1A Passenger Frontal Airbag Canister Vent: Circuit Resistance Below Threshold   GO to Pinpoint Test T   RCM B11CF:2B Passenger Frontal Airbag Canister Vent: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B11CF:4A Passenger Frontal Airbag Canister Vent: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B11D8:11 Restraint Event Notification: Circuit Short To Ground   GO to Pinpoint Test U   RCM B11D8:12 Restraint Event Notification: Circuit Short To Battery   GO to Pinpoint Test U   RCM B11D8:13 Restraint Event Notification: Circuit Short To Open   GO to Pinpoint Test U   RCM B1202:01 Restraint System Passenger Enable Indicator: General Electrical Failure   GO to Pinpoint Test V   RCM B1202:4A Restraint System Passenger Enable Indicator: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1404:11 Driver Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test W   RCM B1404:12 Driver Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test W   RCM B1404:13 Driver Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test W   RCM B1404:1A Driver Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test W   RCM B1404:2B Driver Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1404:4A Driver Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1405:11 Driver Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test X   RCM B1405:12 Driver Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test X   RCM B1405:13 Driver Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test X   RCM B1405:1A Driver Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test X   RCM B1405:2B Driver Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1405:4A Driver Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1407:11 Passenger Side Airbag Deployment Control: Circuit Short to Ground   GO to Pinpoint Test Y   RCM B1407:12 Passenger Side Airbag Deployment Control: Circuit Short to Battery   GO to Pinpoint Test Y   RCM B1407:13 Passenger Side Airbag Deployment Control: Circuit Open   GO to Pinpoint Test Y   RCM B1407:1A Passenger Side Airbag Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test Y   RCM B1407:2B Passenger Side Airbag Deployment Control: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1407:4A Passenger Side Airbag Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1408:11 Passenger Side Curtain Deployment Control 1: Circuit Short to Ground   GO to Pinpoint Test Z   RCM B1408:12 Passenger Side Curtain Deployment Control 1: Circuit Short to Battery   GO to Pinpoint Test Z   RCM B1408:13 Passenger Side Curtain Deployment Control 1: Circuit Open   GO to Pinpoint Test Z   RCM B1408:1A Passenger Side Curtain Deployment Control 1: Circuit Resistance Below Threshold   GO to Pinpoint Test Z   RCM B1408:2B Passenger Curtain Deployment Control 1: Signal Cross Coupled   GO to Pinpoint Test AL   RCM B1408:4A Passenger Curtain Deployment Control 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140C:11 Second Row Driver Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AA   RCM B140C:12 Second Row Driver Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AA   RCM B140C:13 Second Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AA   RCM B140C:1D Second Row Driver Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AA   RCM B140C:2B Second Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140C:4A Second Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140D:11 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Ground   GO to Pinpoint Test AB   RCM B140D:12 Second Row Passenger Side Seatbelt Sensor: Circuit Short to Battery   GO to Pinpoint Test AB   RCM B140D:13 Second Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AB   RCM B140D:1D Second Row Passenger Side Seatbelt Sensor: Circuit Current Out of Range   GO to Pinpoint Test AB   RCM B140D:2B Second Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140D:4A Second Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140E:11 Third Row Driver Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AC   RCM B140E:12 Third Row Driver Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AC   RCM B140E:13 Third Row Driver Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AC   RCM B140E:1D Third Row Driver Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AC   RCM B140E:2B Third Row Driver Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140E:4A Third Row Driver Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B140F:11 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Ground   GO to Pinpoint Test AD   RCM B140F:12 Third Row Passenger Side Seatbelt Sensor: Circuit Short To Battery   GO to Pinpoint Test AD   RCM B140F:13 Third Row Passenger Side Seatbelt Sensor: Circuit Open   GO to Pinpoint Test AD   RCM B140F:1D Third Row Passenger Side Seatbelt Sensor: Circuit Current Out Of Range   GO to Pinpoint Test AD   RCM B140F:2B Third Row Passenger Side Seatbelt Sensor: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B140F:4A Third Row Passenger Side Seatbelt Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1410:11 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AE   RCM B1410:12 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AE   RCM B1410:13 Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AE   RCM B1410:1A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AE   RCM B1410:2B Second Row Driver Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1410:4A Second Row Driver Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1412:11 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Ground   GO to Pinpoint Test AF   RCM B1412:12 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Short To Battery   GO to Pinpoint Test AF   RCM B1412:13 Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Open   GO to Pinpoint Test AF   RCM B1412:1A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Circuit Resistance Below Threshold   GO to Pinpoint Test AF   RCM B1412:2B Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Signal Cross-Coupled   GO to Pinpoint Test AL   RCM B1412:4A Second Row Passenger Side Seatbelt Pretensioner Deployment Control: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:11 Driver Frontal Restraints Sensor: Circuit Short to Ground   GO to Pinpoint Test AG   RCM B1413:12 Driver Frontal Restraints Sensor: Circuit Short to Battery   GO to Pinpoint Test AG   RCM B1413:13 Driver Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AG   RCM B1413:4A Driver Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1413:81 Driver Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1413:96 Driver Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1414:11 Driver Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1414:12 Driver Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1414:13 Driver Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AI   RCM B1414:4A Driver Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1414:81 Driver Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1414:96 Driver Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1415:11 Driver Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1415:12 Driver Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1415:13 Driver Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AJ   RCM B1415:4A Driver Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1415:81 Driver Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1415:96 Driver Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B1417:11 Passenger Frontal Restraints Sensor: Circuit Short To Ground   GO to Pinpoint Test AK   RCM B1417:12 Passenger Frontal Restraints Sensor: Circuit Short To Battery   GO to Pinpoint Test AK   RCM B1417:13 Passenger Frontal Restraints Sensor: Circuit Open   GO to Pinpoint Test AK   RCM B1417:4A Passenger Frontal Restraints Sensor: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1417:81 Passenger Frontal Restraints Sensor: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1417:96 Passenger Frontal Restraints Sensor: Component Internal Failure   GO to Pinpoint Test AH   RCM B1418:11 Passenger Side Restraints Sensor 1: Circuit Short to Ground   GO to Pinpoint Test AJ   RCM B1418:12 Passenger Side Restraints Sensor 1: Circuit Short to Battery   GO to Pinpoint Test AJ   RCM B1418:13 Passenger Side Restraints Sensor 1: Circuit Open   GO to Pinpoint Test AJ   RCM B1418:4A Passenger Side Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1418:81 Passenger Side Restraints Sensor 1: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1418:96 Passenger Side Restraints Sensor 1: Component Internal Failure   GO to Pinpoint Test AH   RCM B1419:11 Passenger Side Restraints Sensor 2: Circuit Short to Ground   GO to Pinpoint Test AI   RCM B1419:12 Passenger Side Restraints Sensor 2: Circuit Short to Battery   GO to Pinpoint Test AI   RCM B1419:13 Passenger Side Restraints Sensor 2: Circuit Open   GO to Pinpoint Test AI   RCM B1419:4A Passenger Side Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1419:81 Passenger Side Restraints Sensor 2: Invalid Serial Data Received   GO to Pinpoint Test AH   RCM B1419:96 Passenger Side Restraints Sensor 2: Component Internal Failure   GO to Pinpoint Test AH   RCM B142D:00 Pyrotechnic End of Life Activation Performed: No Sub Type Information   GO to Pinpoint Test AV   RCM B1469:4A Unused Satellite Restraints Sensor 1: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B146A:4A Unused Satellite Restraints Sensor 2: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1492:68 Fuel Cutoff Event: Event Information   GO to Pinpoint Test AW   RCM B14ED:11 Restraint Event Notification 2: Circuit Short To Ground   GO to Pinpoint Test AX   RCM B14ED:12 Restraint Event Notification 2: Circuit Short To Battery   GO to Pinpoint Test AX   RCM B14ED:13 Restraint Event Notification 2: Circuit Open   GO to Pinpoint Test AX   RCM B14EE:11 Restraint Event Notification 3: Circuit Short To Ground   GO to Pinpoint Test AY   RCM B14EE:12 Restraint Event Notification 3: Circuit Short To Battery   GO to Pinpoint Test AY   RCM B14EE:13 Restraint Event Notification 3: Circuit Open   GO to Pinpoint Test AY   RCM B1534:4A Unused Deployable Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM B1535:4A Unused DC Sensor Device: Incorrect Component Installed   GO to Pinpoint Test AM   RCM C0061:68 Lateral Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0062:68 Longitudinal Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM C0063:68 Yaw Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0064:68 Roll Rate Sensor: Event Information   GO to Pinpoint Test AN   RCM C0065:68 Vertical Acceleration Sensor: Event Information   GO to Pinpoint Test AN   RCM U0028:08 Vehicle Communication Bus A: Bus Signal/Message Failures   GO to Pinpoint Test AO   RCM U0028:88 Vehicle Communication Bus A: Bus Off   GO to Pinpoint Test AO   RCM U0100:00 Lost Communication with ECM/PCM “A”: No Sub Type Information   GO to Pinpoint Test AP   RCM U0140:00 Lost Communication with Body Control Module: No Sub Type Information   GO to Pinpoint Test AQ   RCM U0146:00 Lost Communication with Gateway "A": No Sub Type Information   GO to Pinpoint Test AR   RCM U0154:00 Lost Communication with Restraints Occupant Classification System Module: No Sub Type Information   GO to Pinpoint Test AS   RCM U0253:00 Lost Communication with Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AT   RCM U0300:00 Control Module: No Sub Type Information   GO to Pinpoint Test AV   RCM U0401:00 Invalid Data Received from ECM/PCM A: No Sub Type Information   GO to Pinpoint Test AU   RCM U0401:81 Invalid Data Received from ECM/PCM A: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0422:00 Invalid Data Received From Body Control Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0422:81 Invalid Data Received From Body Control Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0455:81 Invalid Data Received From Restraints Occupant Classification System Module: Invalid Serial Data Received   GO to Pinpoint Test AU   RCM U0554:00 Invalid Data Received From Accessory Protocol Interface Module: No Sub Type Information   GO to Pinpoint Test AU   RCM U0557:82 Invalid Data Received From Front Controls Interface Module "A": Alive/Sequence Counter Incorrect/Not Updated   GO to Pinpoint Test AU   RCM U2024:57 Control Module Cal-Config Data: Invalid/Incompatible Software Component   GO to Pinpoint Test AV   RCM U2100:00 Initial Configuration Not Complete: No Sub Type Information   GO to Pinpoint Test AZ   RCM U2101:00 Control Module Configuration Incompatible: No Sub Type Information   GO to Pinpoint Test AO   RCM U2200:00 Control Module Configuration Memory Corrupt: No Sub Type Information   GO to Pinpoint Test AV   RCM U2300:55 Central Configuration: Not Configured   GO to Pinpoint Test BA   RCM U2300:64 Central Configuration: Signal Plausibility Failure   GO to Pinpoint Test BA   RCM U3000:04 Control Module: System Internal Failure   GO to Pinpoint Test AV   RCM U3000:46 Control Module: Calibration / Parameter Memory Failure   GO to Pinpoint Test AV   RCM U3000:49 Control Module: Internal Electronic Failure   GO to Pinpoint Test AV   RCM U3003:16 Battery Voltage: Circuit Voltage Below Threshold   GO to Pinpoint Test BB   RCM U3003:17 Battery Voltage: Circuit Voltage Above Threshold   GO to Pinpoint Test BB Symptom Chart(s) Symptom Chart: Supplemental Restraint System Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
