Lincoln Aviator: Accessory Drive - 3.0L EcoBoost / Removal and Installation - Accessory Drive Belt Tensioner
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-
Remove the accessory drive belt.
Refer to: Accessory Drive Belt (303-05A Accessory Drive - 3.0L EcoBoost, Removal and Installation).
-

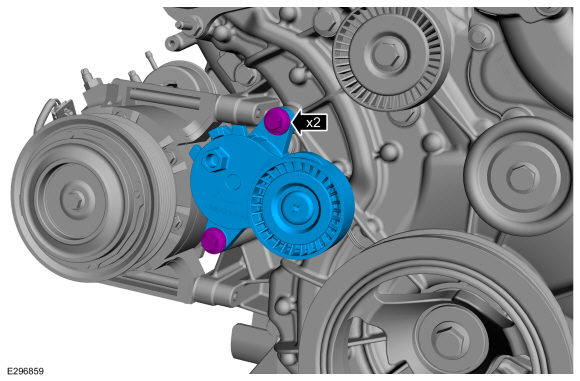

Remove the bolts and the accessory drive belt tensioner.
Torque:
18 lb.ft (25 Nm)
Installation
-
To install, reverse the removal procedure.
-

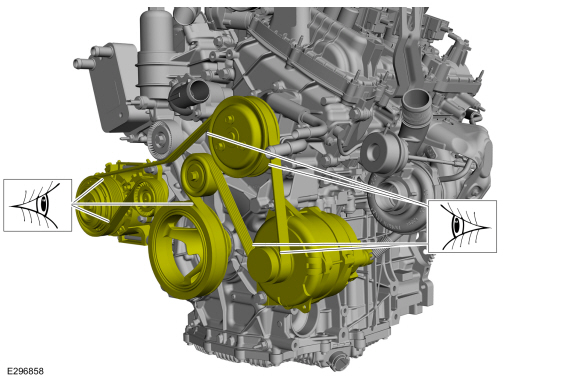

After installation, make sure the accessory drive belt is correctly seated on all pulleys.
Removal
Remove the accessory drive belt.
Refer to: Accessory Drive Belt (303-05A Accessory Drive - 3.0L EcoBoost, Removal and Installation)...
Other information:
Special Tool(s) /
General Equipment
Transmission Jack
Removal
NOTE:
Removal steps in this procedure may contain installation steps.
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures)...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
HUD
U0100:00
Lost Communication With ECM/PCM "A":No Sub Type Information
GO to Pinpoint Test J
HUD
U0140:00
Lost Communication With Body Control Module:No Sub Type Information
GO to Pinpoint Test K
HUD
U0164:00
Lost Communication With HVAC Control Module:No Sub Type Information
GO to Pinpoint Test M
HUD
U0208:00
Lost Communication With "Seat Control Module A":No Sub Type Information
GO to Pinpoint Test N
HUD
U0212:00
Lost Communication With Steering Column Control Module:No Sub Type Information
GO to Pinpoint Test O
HUD
U0232:00
Lost Communication With Side Obstacle Detection Control Module "A":No Sub Type Information
GO to Pinpoint Test P
HUD
U0233:00
Lost Communication With Side Obstacle Detection Control Module "B":No Sub Type Information
GO to Pinpoint Test P
HUD
U0238:00
Lost Communication With Digital Audio Control Module "D":No Sub Type Information
GO to Pinpoint Test Q
HUD
U023A:00
Lost Communication With Image Processing Module A:No Sub Type Information
GO to Pinpoint Test R
HUD
U0401:00
Invalid Data Received from ECM/PCM A:No Sub Type Information
GO to Pinpoint Test J
HUD
U0401:81
Invalid Data Received from ECM/PCM A:Invalid Serial Data Received
GO to Pinpoint Test J
HUD
U0401:82
Invalid Data Received from ECM/PCM A:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test J
HUD
U0405:56
Invalid Data Received From Cruise Control Module:Invalid/Incompatible Configuration
GO to Pinpoint Test S
HUD
U0424:00
Invalid Data Received From HVAC Control Module:No Sub Type Information
GO to Pinpoint Test M
HUD
U0424:81
Invalid Data Received From HVAC Control Module:Invalid Serial Data Received
GO to Pinpoint Test M
HUD
U0424:82
Invalid Data Received From HVAC Control Module:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test M
HUD
U0429:00
Invalid Data Received From Steering Column Control Module:No Sub Type Information
GO to Pinpoint Test O
HUD
U0429:82
Invalid Data Received From Steering Column
Control Module:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test O
HUD
U0431:00
Invalid Data Received From Body Control Module "A":No Sub Type Information
GO to Pinpoint Test K
HUD
U0509:82
Invalid Data Received From "Seat Control Module A":Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test N
HUD
U2100:00
Initial Configuration Not Complete:No Sub Type Information
GO to Pinpoint Test T
HUD
U2300:55
Central Configuration:Not Configured
GO to Pinpoint Test S
HUD
U3000:04
Control Module:System Internal Failures
GO to Pinpoint Test U
HUD
U3000:41
Control Module:General Checksum Failure
GO to Pinpoint Test U
HUD
U3000:42
Control Module:General Memory Failure
GO to Pinpoint Test U
HUD
U3000:47
Control Module:Watchdog/Safety µC Failure
GO to Pinpoint Test U
HUD
U3000:49
Control Module:Internal Electronic Failure
GO to Pinpoint Test U
HUD
U3001:98
Control Module Improper Shutdown Performance:Component Or System Over Temperature
GO to Pinpoint Test V
HUD
U3003:16
Battery Voltage:Circuit Voltage Below Threshold
GO to Pinpoint Test X
HUD
U3003:17
Battery Voltage:Circuit Voltage Above Threshold
GO to Pinpoint Test Y
HUD
U300A:64
Ignition Switch:Signal Plausibility Failure
GO to Pinpoint Test W
Symptom Chart
Symptom Chart: HUD
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
