Lincoln Aviator: Accessory Drive - 3.0L EcoBoost / Removal and Installation - Accessory Drive Belt Idler Pulley
Removal
-
Remove the accessory drive belt.
Refer to: Accessory Drive Belt (303-05A Accessory Drive - 3.0L EcoBoost, Removal and Installation).
-

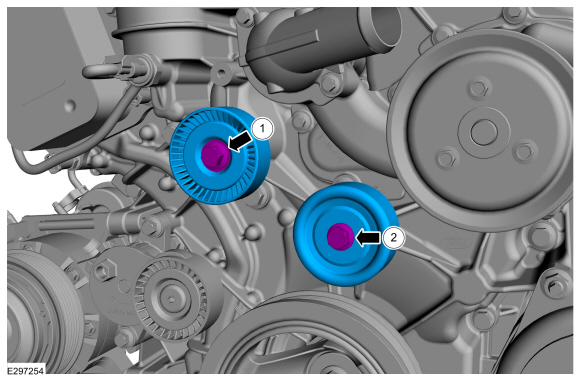

Remove the following items:
-
Torque:
18 lb.ft (25 Nm)
-
Torque:
35 lb.ft (47.5 Nm)
Installation
-
To install, reverse the removal procedure.
-
Install Accessory Drive Belt.
Refer to: Accessory Drive Belt (303-05A Accessory Drive - 3.0L EcoBoost, Removal and Installation).
Removal
NOTICE:
Under no circumstances should the accessory drive belt,
tensioner or pulleys be lubricated as potential damage to the belt
material and tensioner damping mechanism will occur...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation)...
