Lincoln Aviator: Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ) / Removal and Installation - Air Cleaner

Removal

NOTICE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.

NOTE: Removal steps in this procedure may contain installation details.

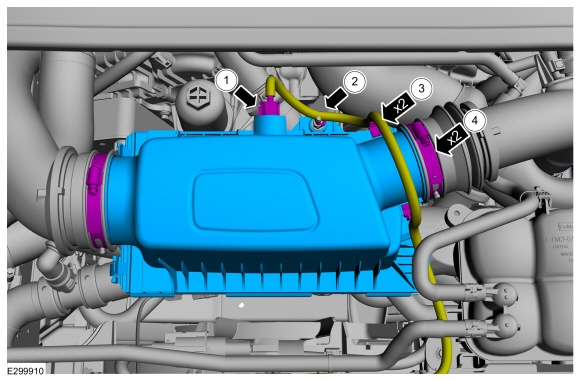

    1. Disconnect the IAT sensor electrical connector.
    1. Detach the clip.
    1. Detach electrical wire clips.
    1. Loosen the clamps and position the air cleaner outlet pipes LH and RH aside.
      Torque: 44 lb.in (5 Nm)
    1. Dislodge and relocate the air cleaner intake pipe.

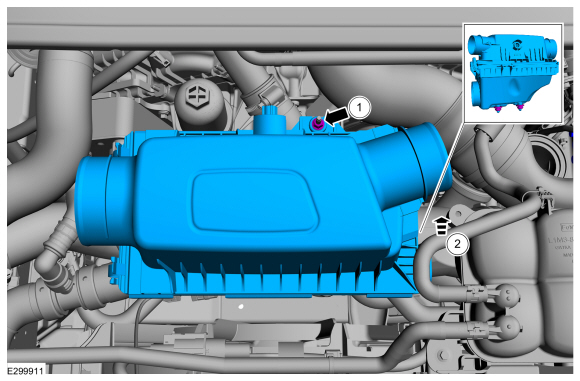

    1. Remove the nut.
      Torque: 80 lb.in (9 Nm)
    1. Detach and remove the air cleaner from the isolators.

Installation

  1. Inspect the turbocharger or engine air intake system components and clean, if necessary.
  1. To install, reverse the removal procedure.

    General Procedures - Charge Air Cooler (CAC) Cleaning

    Cleaning Remove the Turbocharger Boost Pressure (TCBP) sensor from the CAC. Refer to: Turbocharger Boost Pressure (TCBP) and Charger Air Cooler Temperature (CACT) Sensor (303-14A Electronic Engine Controls - 3...

    Removal and Installation - Air Cleaner Intake Pipe

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the front undershield. Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation)...
