Lincoln Aviator: Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ) / Removal and Installation - Air Cleaner Intake Pipe
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front undershield.
Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation).
-
Remove the front bumper.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

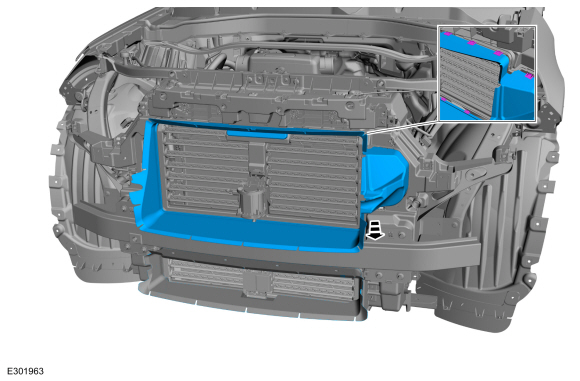

Pullout the top air deflector.
Torque:
33 lb.in (3.7 Nm)
-

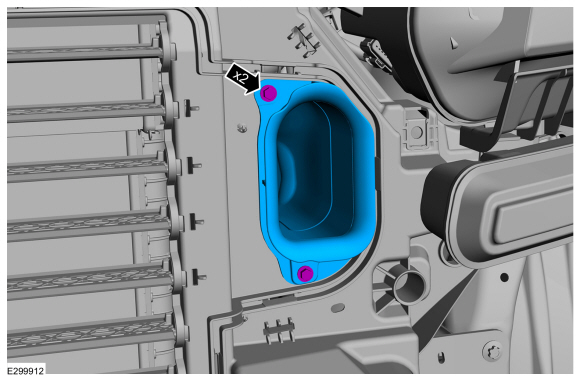

Loosen the bolts and remove the air intake venturi.
Torque:
33 lb.in (3.7 Nm)
-

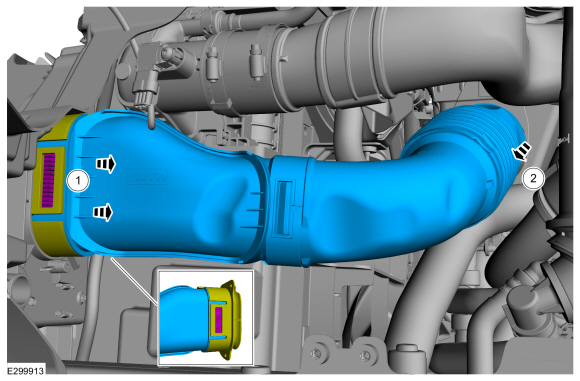

Detach and remove the air cleaner intake pipe form the air cleaner.
Installation
-
To install, reverse the removal procedure.
