Lincoln Aviator: Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ) / Removal and Installation - Air Cleaner Outlet Pipe LH
Special Tool(s) /
General Equipment
Hose Clamp Remover/Installer |
Removal
NOTICE:
The turbocharger compressor vanes can be damaged by even the
smallest particles. When removing any turbocharger or engine air intake
system component, ensure that no debris enters the system. Failure to
do so may result in damage to the turbocharger.
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in N, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

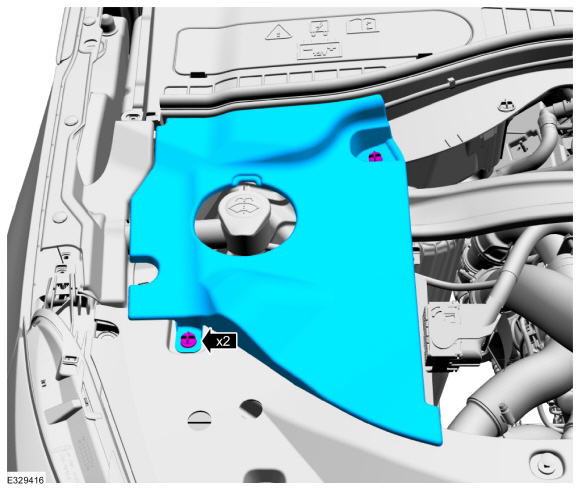

Remove the retainers and the RH engine compartment cover.
-

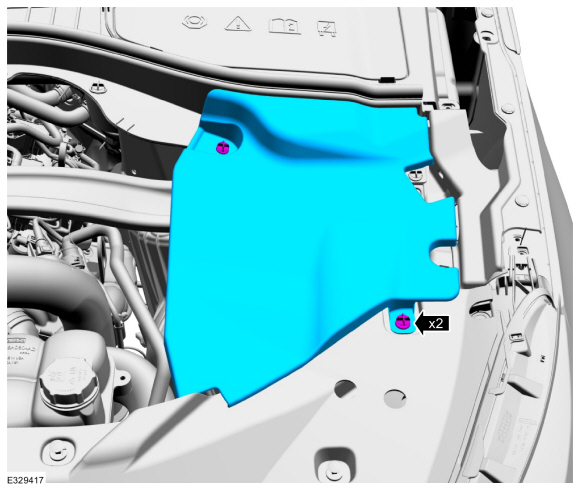

Remove the retainers and the LH engine compartment cover.
-

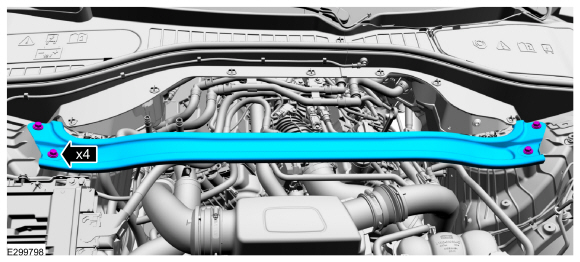

Remove the bolts and the suspension support bar.
Torque:
22 lb.ft (30 Nm)
-
-

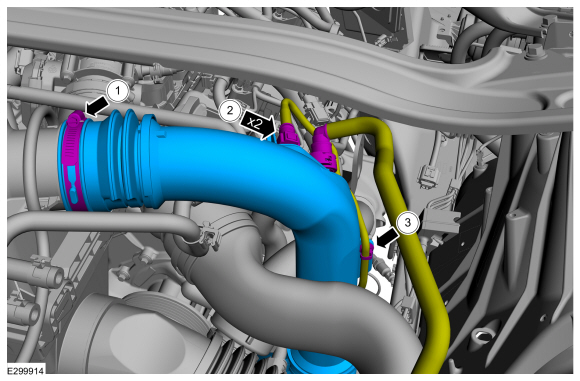

Loosen the hose clamp.
Torque:
42 lb.in (4.8 Nm)
-

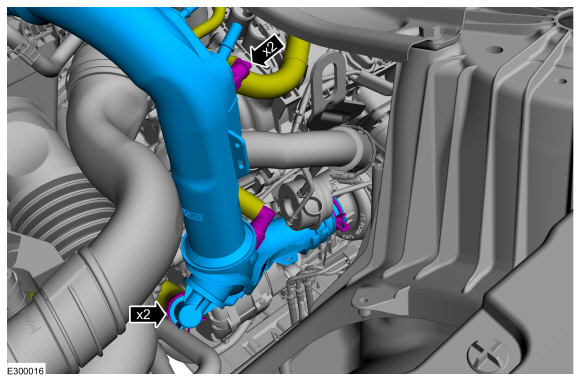

Remove the quick release connectors.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
-
Release the clip and position the wire harness aside.
-
Disconnect the quick release couplings and remove the hose clips to remove the pipe.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).
Use the General Equipment: Hose Clamp Remover/Installer
Installation
-
Inspect the turbocharger or engine air intake system components and clean, if necessary.
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front undershield.
Refer to: Engine Front Undershield (501-02 Front End Body Panels, Removal and Installation)...
Removal
NOTICE:
The turbocharger compressor vanes can be damaged by even the
smallest particles. When removing any turbocharger or engine air intake
system component, ensure that no debris enters the system...
