Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - AM/FM1 Antenna Amplifier
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the RH upper D-pillar trim panel.
Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

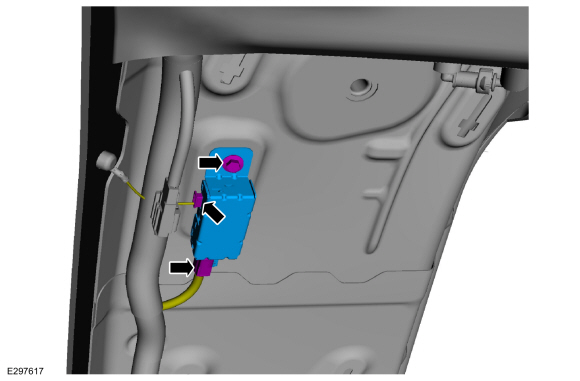

Disconnect the connectors, remove the screw and the AM/FM1 antenna amplifier.
Torque:
93 lb.in (10.5 Nm)
Installation
-
To install, reverse the removal procedure.
