Lincoln Aviator: Front Disc Brake / Removal and Installation - Brake Caliper Anchor Plate

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the brake pads.
    Refer to: Brake Pads (206-03 Front Disc Brake, Removal and Installation).

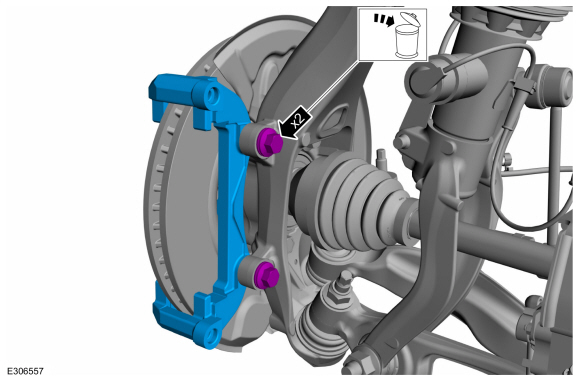

  1. Remove the bolts and the anchor plate. Discard the bolts
    Torque: 129 lb.ft (175 Nm)

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Brake Caliper

    Removal   WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers...

    Removal and Installation - Brake Disc

    Materials Name Specification Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B -  Removal   WARNING: Service actions on vehicles equipped with electronic brake booster and electronic parking brakes may cause unexpected brake application, which could result in injury to hands or fingers...
