Lincoln Aviator: Supplemental Climate Control / Removal and Installation - Cabin Heater Coolant Pump - 3.0L EcoBoost
Special Tool(s) /
General Equipment
Hose Clamp(s) |
Hose Clamp Remover/Installer |
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING:
Always allow the engine to cool before opening the
cooling system. Do not unscrew the coolant pressure relief cap when the
engine is operating or the cooling system is hot. The cooling system is
under pressure; steam and hot liquid can come out forcefully when the
cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.

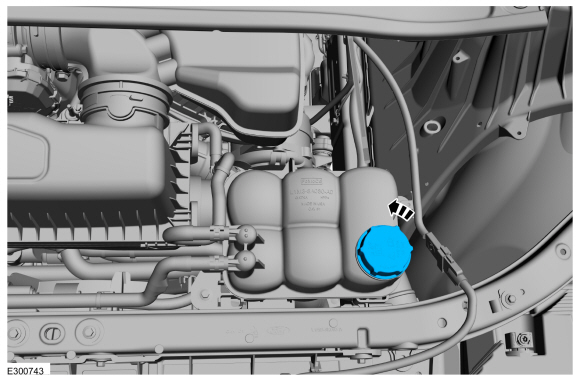

Release the cooling system pressure by slowly turning
the pressure relief cap between 2 and 3 turns and remove the pressure
relief cap.
-
Remove the CAC intake pipes. Refer to the appropriate procedure in Group 303.
-

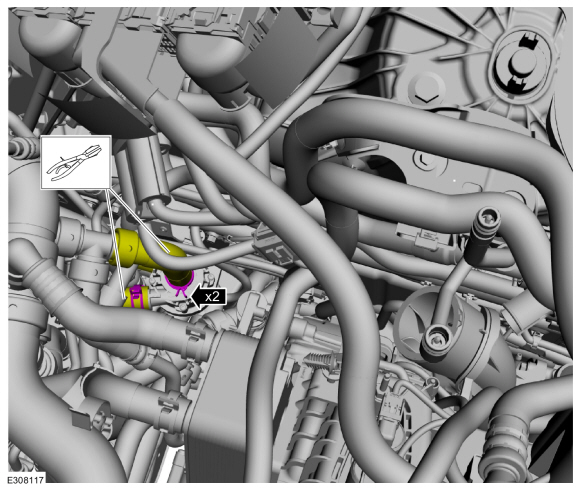

Release the hose clamps and disconnect inlet and outlet coolant hoses.
Use the General Equipment: Hose Clamp(s)
Use the General Equipment: Hose Clamp Remover/Installer
-
-
Disconnect electrical connector.
-

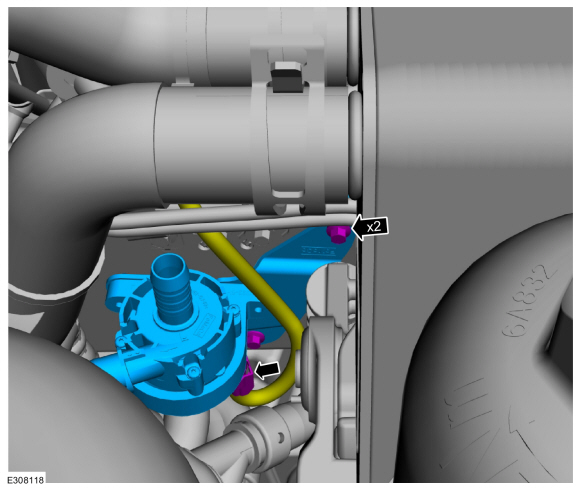

Remove the bolts and the cabin heater coolant pump.
Torque:
62 lb.in (7 Nm)
Installation
-
To install, reverse the removal procedure.
-
Fill and bleed the cooling system.
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
