Lincoln Aviator 2020-2026 Service Manual / Electrical / Climate Control System / Supplemental Climate Control / Removal and Installation - Cabin Heater Coolant Temperature Sensor

Lincoln Aviator: Supplemental Climate Control / Removal and Installation - Cabin Heater Coolant Temperature Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
  1. Remove the LH headlamp assembly.
    Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

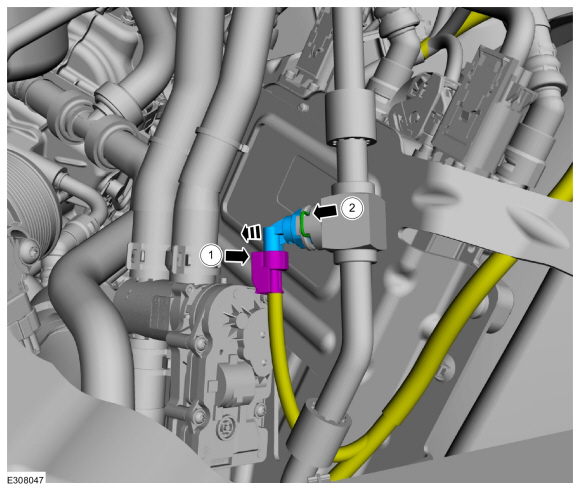

    1. Disconnect the electrical connector.
    1. Remove the locking clip and remove the cabin heater coolant temperature sensor.

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
