Lincoln Aviator 2020-2025 Service Manual / Powertrain / Engine / Engine Cooling - 3.0L EcoBoost / Removal and Installation - Cylinder Head to Coolant Outlet Connector Hose Assembly

Lincoln Aviator: Engine Cooling - 3.0L EcoBoost / Removal and Installation - Cylinder Head to Coolant Outlet Connector Hose Assembly

Special Tool(s) / General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
  1. Remove the intake manifold.
    Refer to: Intake Manifold (303-01A Engine - 3.0L EcoBoost, Removal and Installation).

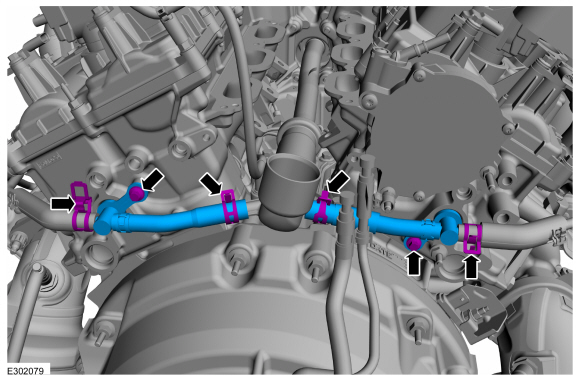

    • Release the clamps and disconnect the coolant hoses.
      Use the General Equipment: Hose Clamp Remover/Installer
    • Remove the fastener and remove the cylinder head to coolant outlet connector hose assembly.
      Torque: 89 lb.in (10 Nm)

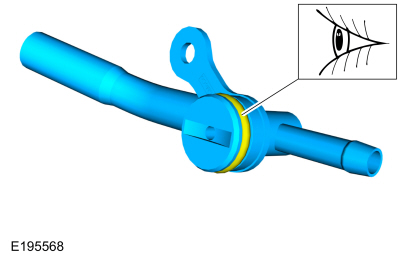

  1. Inspect the O-ring and replace if necessary.

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03A Engine Cooling - 3.0L EcoBoost, General Procedures).
