Lincoln Aviator 2020-2025 Service Manual / Powertrain / Engine / Evaporative Emissions - 3.0L EcoBoost / Removal and Installation - Evaporative Emission Canister

Lincoln Aviator: Evaporative Emissions - 3.0L EcoBoost / Removal and Installation - Evaporative Emission Canister

Removal

  WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
    • Remove the fasteners.
      Torque: 53 lb.in (6 Nm)
    • Remove the fastener.
      Torque: 22 lb.in (2.5 Nm)
    • Remove the pushpins.

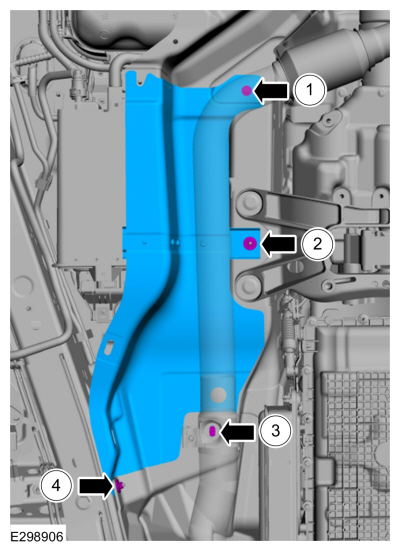

    • Remove the fasteners.

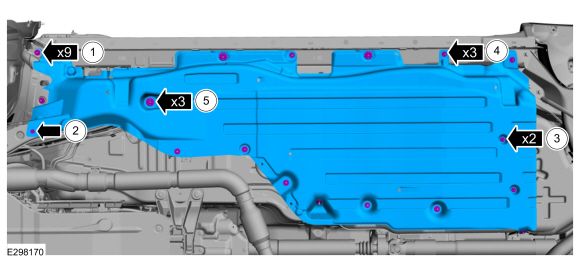

    • Remove the fasteners.
    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 53 lb.in (6 Nm)

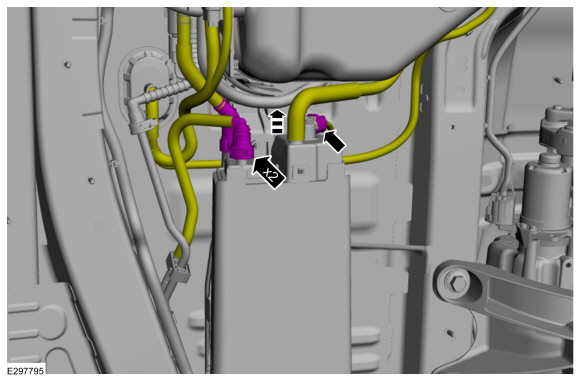

    • Disconnect the electrical connector.
    • Disconnect the vapour vent hose.
    • Disconnect the quick release couplings.
      Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 3.0L EcoBoost, General Procedures).

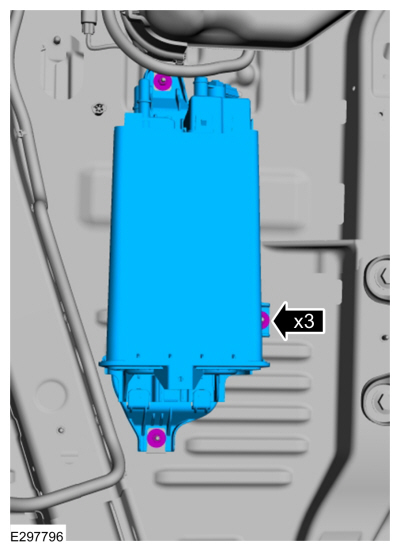

  1. Remove the fasteners and EVAP canister.
    Torque: 62 lb.in (7 Nm)

Installation

  1. NOTE: Ensure new EVAP canister mounting clips and bracket are used.

  1. To install, reverse the removal procedure.

    General Procedures - Evaporative Emission System Leak Test

    Activation Phase 1 - Leak Verification Run the EVAP Test with the scan tool. NOTE: Some small leaks may not be detected using the EVAP Test...

    Removal and Installation - Evaporative Emission Canister Purge Valve

    Removal   WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component...
