Lincoln Aviator 2020-2025 Service Manual / Powertrain / Engine / Evaporative Emissions - 3.0L EcoBoost / Removal and Installation - Evaporative Emission Canister Vent Solenoid

Lincoln Aviator: Evaporative Emissions - 3.0L EcoBoost / Removal and Installation - Evaporative Emission Canister Vent Solenoid

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).

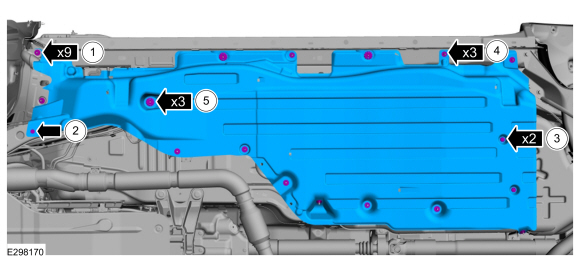

    • Remove the fasteners.
      Torque: 53 lb.in (6 Nm)
    • Remove the fastener.
      Torque: 22 lb.in (2.5 Nm)
    • Remove the pushpins.
    • Remove the fasteners.
    • Remove the fasteners.

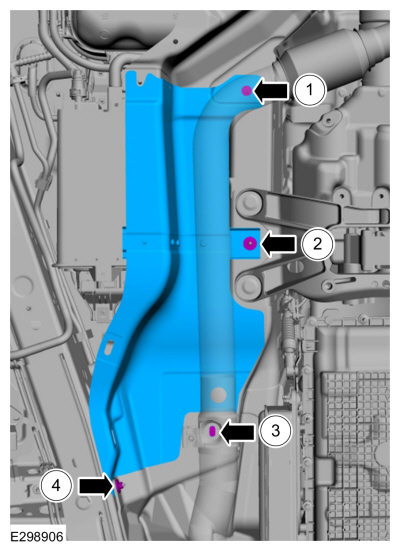

    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 97 lb.in (11 Nm)
    1. Remove the fastener.
      Torque: 53 lb.in (6 Nm)

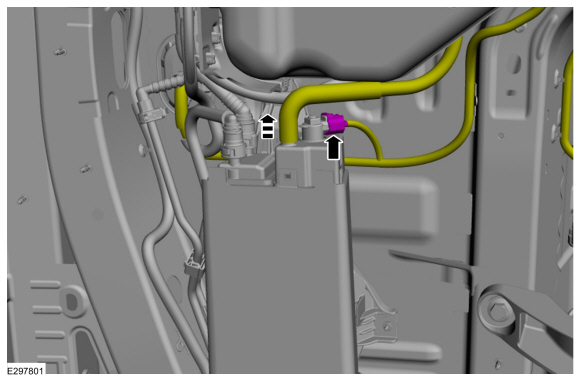

    • Disconnect the EVAP canister electrical connector.
    • Disconnect the vapor vent hose.

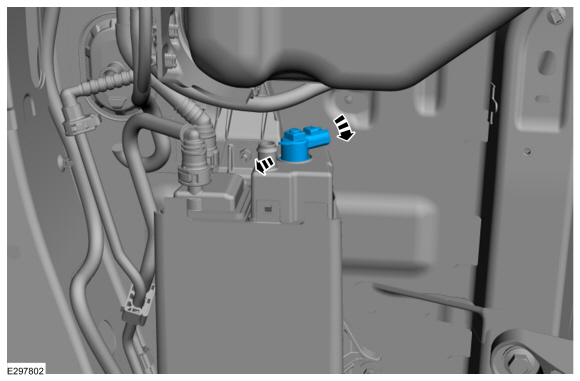

  1. Rotate the EVAP canister solenoid clockwise and remove the EVAP canister solenoid.

Installation

  1. To install, reverse the removal procedure.
