Lincoln Aviator: Information and Entertainment System - General Information / Removal and Installation - FM2 Diversity Antenna Amplifier

Removal

  1. Remove the LH upper D-pillar trim panel.
    Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

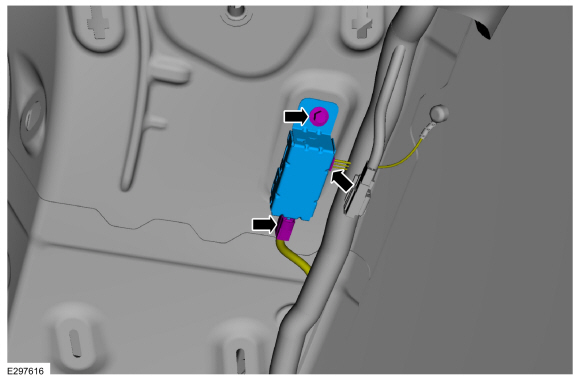

  1. Disconnect the connectors, remove the screw and the FM2 diversity antenna amplifier.
    Torque: 93 lb.in (10.5 Nm)

Installation

  1. To install, reverse the removal procedure.
