Lincoln Aviator 2020-2026 Service Manual / Body and Paint / Body and Paint / Bumpers / Removal and Installation - Front Bumper Cover

Lincoln Aviator: Bumpers / Removal and Installation - Front Bumper Cover

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the front wheels and tires.
    Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).
  1. On both sides.
    Remove the screws, release the retainers, release the clips and position front fender moulding aside.
    Use the General Equipment: Interior Trim Remover
    Torque: 22 lb.in (2.5 Nm)
  1. On both sides.

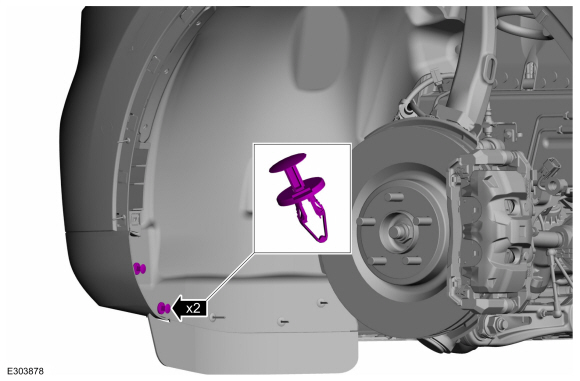

    Remove the fender liner push pins.
  1. On both sides.

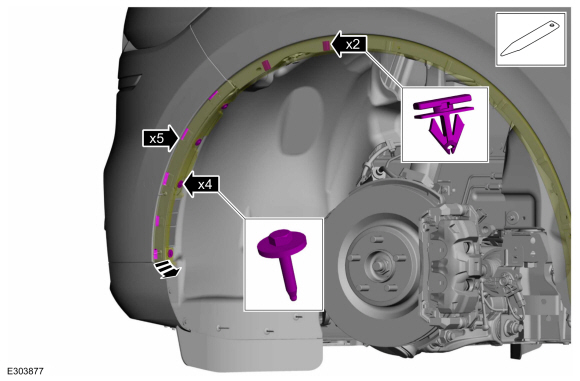

    Remove the fender liner screws.
    Torque: 22 lb.in (2.5 Nm)

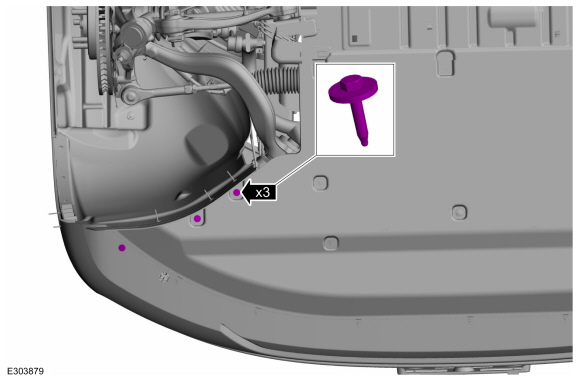

  1. Remove the screws.
    Torque: 22 lb.in (2.5 Nm)
  1. On both sides.

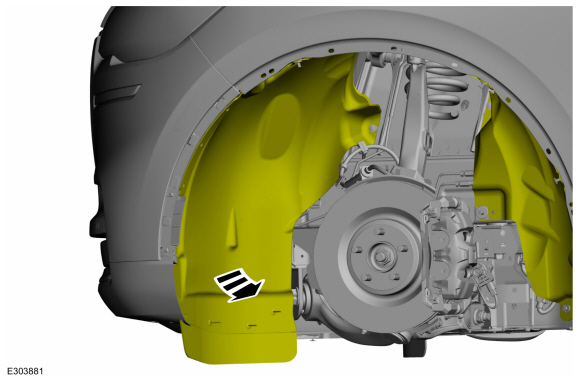

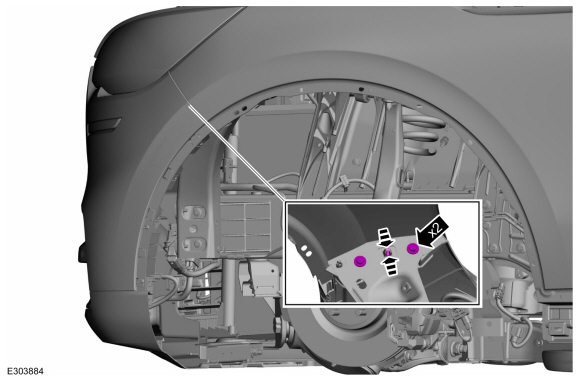

    Position the front fender liner aside.

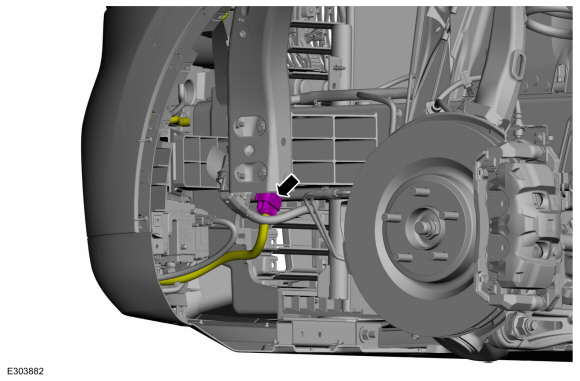

  1. Disconnect the front bumper cover harness electrical connector.
    1. Disconnect the front bumper cover harness electrical connector.
    1. Disconnect the front camera harness electrical connector.

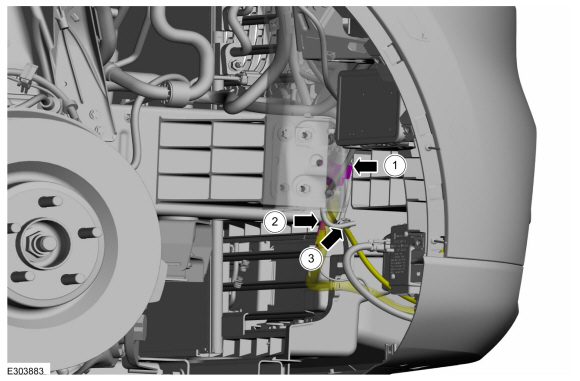

    1. Disconnect the washer hose and plug the washer hose end.
  1. On both sides.
    Remove the front bumper cover to fender bracket bolts and release the tab.
    Torque: 22 lb.in (2.5 Nm)

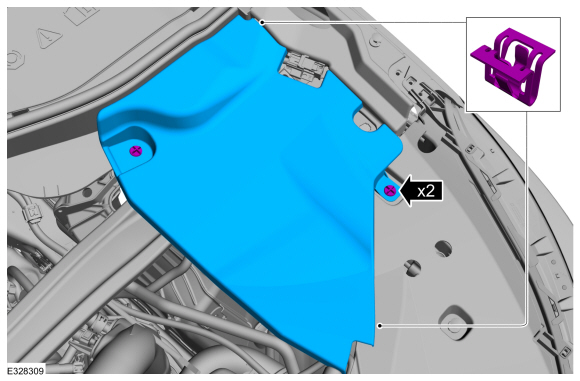

  1. Remove the retainers, release the clips and remove the LH engine compartment cover.

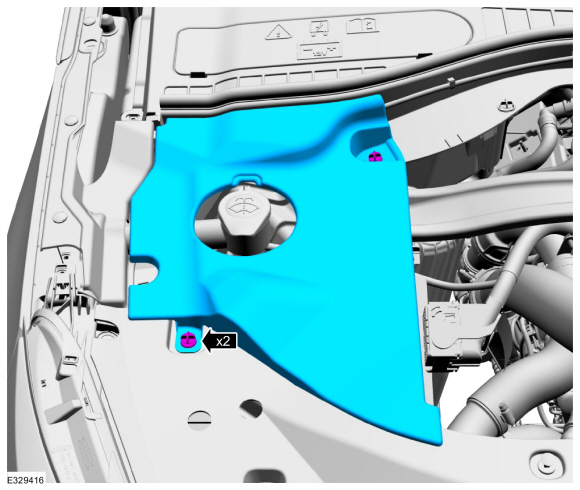

  1. Remove the retainers and the RH engine compartment cover.

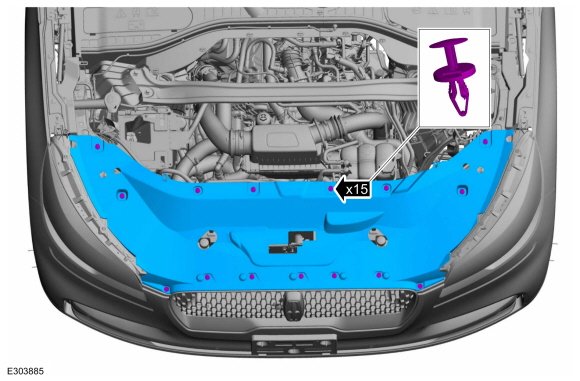

  1. Remove the push pins and the radiator sight shield.
  1. If equipped.
    Disconnect the electrical connector, the wiring harness retainers and position the engine block heater wiring harness aside.

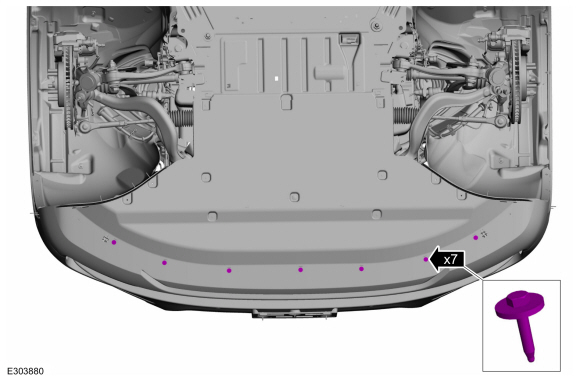

  1. Remove the Screws.
    Torque: 22 lb.in (2.5 Nm)

  1. NOTE: This step requires the aid of another technician.

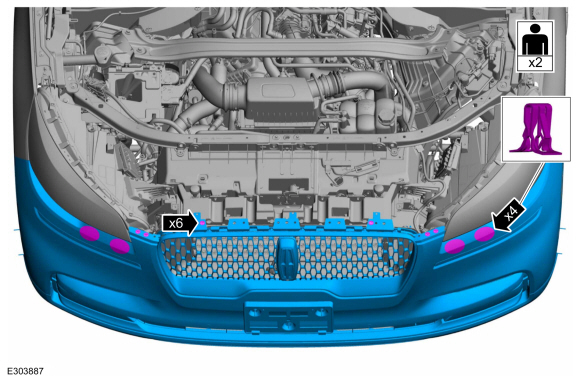

    Release the tabs, release the clips and remove the front bumper cover.
    Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.

Vehicles With: 360 Degree Camera

  1. Align the 360° cameras.
    Refer to: 360 Degree View Camera Alignment (413-13B Parking Aid - Vehicles With: Parking Aid Camera, General Procedures).

Vehicles With: Active Park Assist/Front Parking Aid

  1. If replacing the front bumper cover.
    Check the alignment of the front active park assist and front parking aid sensors.
    Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
    Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
    Refer to: Azimuth System Check (413-13C Parking Aid - Vehicles With: Active Park Assist, General Procedures).
  1. If any sensor fails the check, diagnose the sensor fault.
    Refer to: Parking Aid (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Diagnosis and Testing).
    Refer to: Parking Aid (413-13C Parking Aid - Vehicles With: Active Park Assist, Diagnosis and Testing).

    Removal and Installation - Front Bumper

    Special Tool(s) / General Equipment Interior Trim Remover Removal Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation)...

    Removal and Installation - Rear Bumper

    Removal NOTE: Removal steps in this procedure may contain installation details. All vehicles Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation)...
