Lincoln Aviator: Body Closures / Removal and Installation - Front Door Check Arm
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-

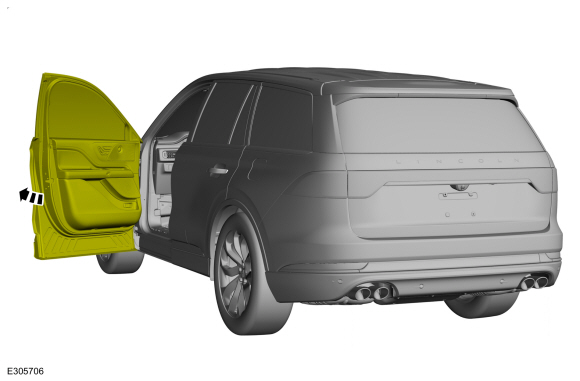

Open the door.
-

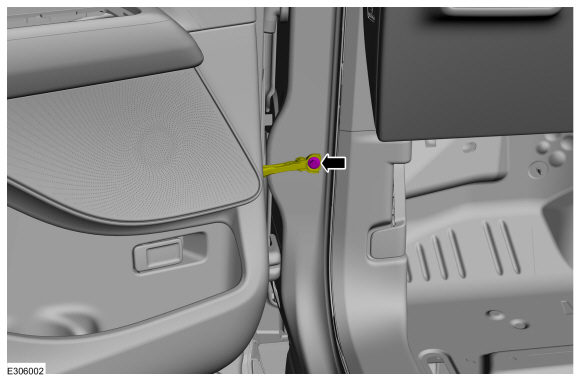

Remove the check arm bolt.
Torque:
18 lb.ft (25 Nm)
-

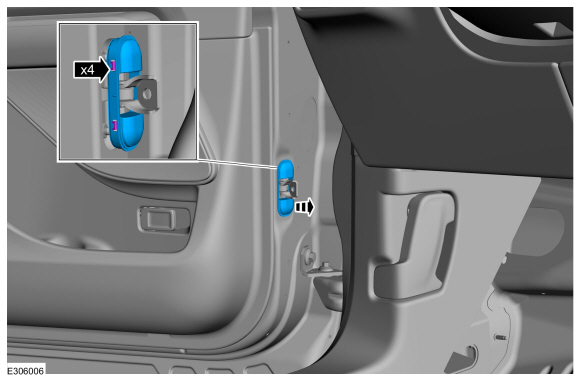

Remove the door check arm cover.
-

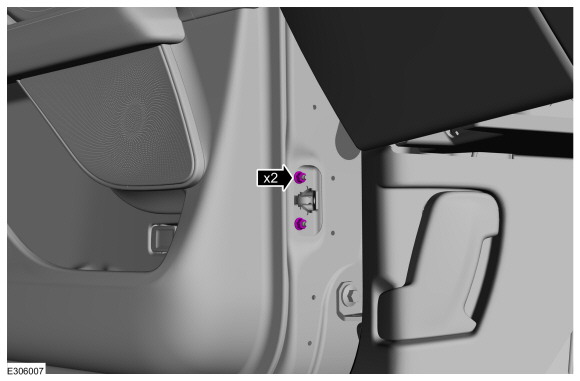

Remove the front door check arm nuts.
Torque:
80 lb.in (9 Nm)
-
Remove the front door speaker.
Refer to: Front Door Speaker (415-00 Information and Entertainment System - General Information, Removal and Installation).
-

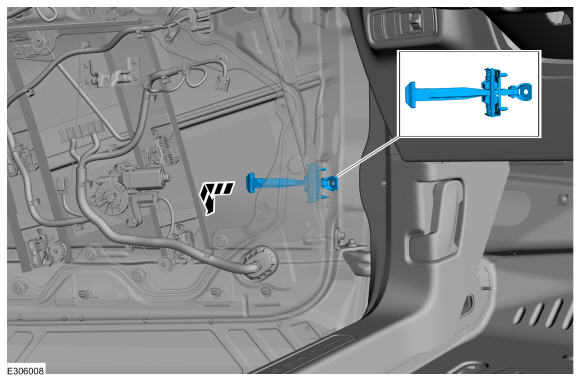

Remove the front door check arm assembly.
Installation
-
To install, reverse the removal procedure.
