Lincoln Aviator: Body Closures / Removal and Installation - Front Door
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
Open the door.
-

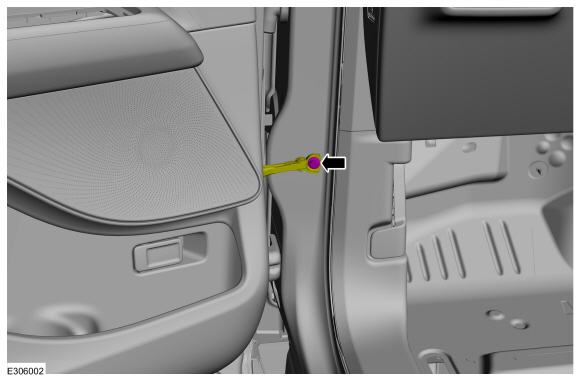

Remove the check arm bolt.
Torque:
18 lb.ft (25 Nm)
-

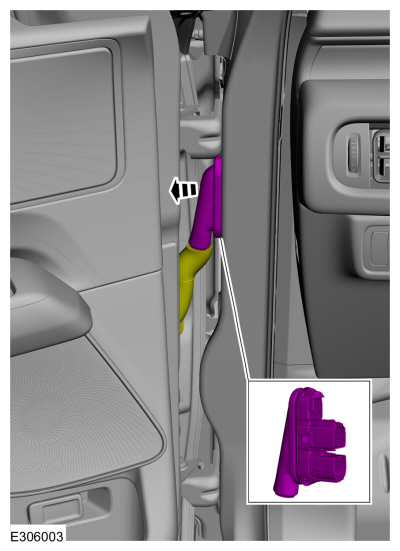

Disconnect the front door electrical connector.
-
NOTE:
This step requires the aid of another technician.

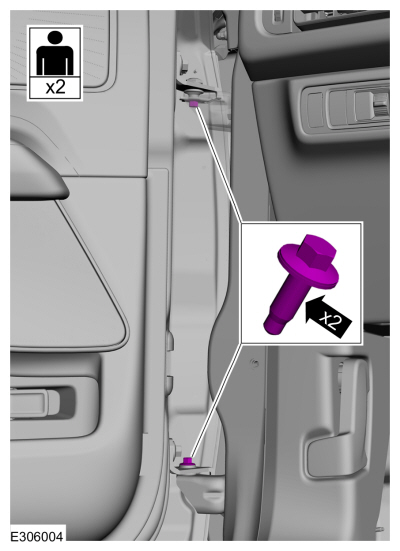

Remove the door hinge pivot bolts.
Torque:
22 lb.ft (30 Nm)
-
NOTE:
This step requires the aid of another technician.

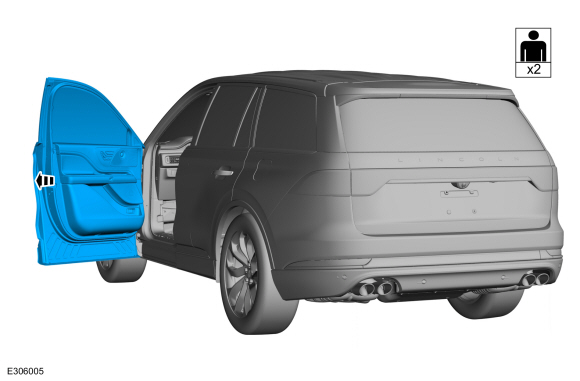

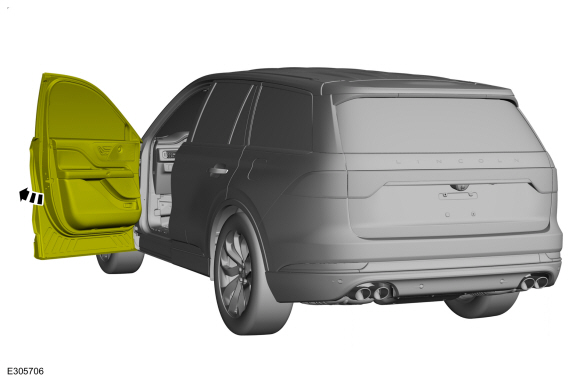

Remove the door.
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Check the door-to-body alignment. Align the door as necessary.
Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
Adjustment
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
All alignments
Open the rear door...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Open the door...
Other information:
Removal
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation).
Remove the screws and the air inlet door actuator.
Disconnect the electrical connector...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B123A:11
Left Front Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test C
BCM
B123A:15
Left Front Turn Indicator:Circuit Short To Battery Or Open
GO to Pinpoint Test C
BCM
B123B:11
Right Front Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test C
BCM
B123B:15
Right Front Turn Indicator:Circuit Short To Battery Or Open
GO to Pinpoint Test C
BCM
B1247:11
Left Rear Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B1247:15
Left Rear Turn Indicator:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B1248:11
Right Rear Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test D
BCM
B1248:15
Right Rear Turn Indicator:Circuit Short To Battery or Open
GO to Pinpoint Test D
BCM
B1265:01
Left Rear Turn Lamp Feedback:General Electrical Failure
GO to Pinpoint Test G
BCM
B1266:01
Right Rear Turn Lamp Feedback:General Electrical Failure
GO to Pinpoint Test G
BCM
B1497:01
Left Front Turn Lamp Feedback:General Electrical Failure
GO to Pinpoint Test G
BCM
B1498:01
Right Front Turn Lamp Feedback:General Electrical Failure
GO to Pinpoint Test G
BCM
B1D35:11
Hazard Switch:Circuit Short to Ground
GO to Pinpoint Test F
DDM
B1D06:11
Left Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test E
DDM
B1D06:15
Left Turn Indicator:Circuit Short To Battery Or Open
GO to Pinpoint Test E
PDM
B1D07:11
Right Turn Indicator:Circuit Short To Ground
GO to Pinpoint Test E
PDM
B1D07:15
Right Turn Indicator:Circuit Short To Battery Or Open
GO to Pinpoint Test E
SCCM
B124C:96
Turn Indicator Stalk Switch Pack:Component Internal Failure
GO to Pinpoint Test H
SCCM
B124C:9E
Turn Indicator Stalk Switch Pack:Stuck On
GO to Pinpoint Test H
Symptom Chart(s)
Symptom Chart: Turn Signal and Hazard Lamps
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
