Lincoln Aviator: Body Closures / Removal and Installation - Fuel Filler Door
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Open the fuel filler door.
-

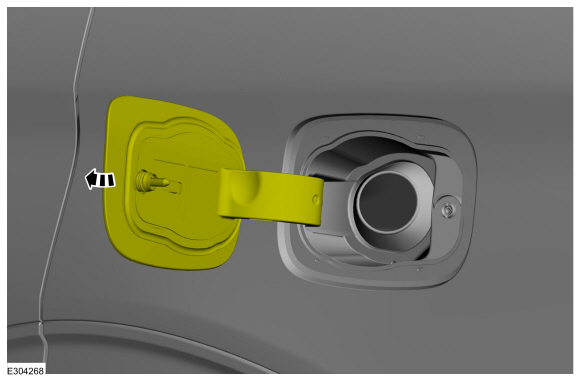

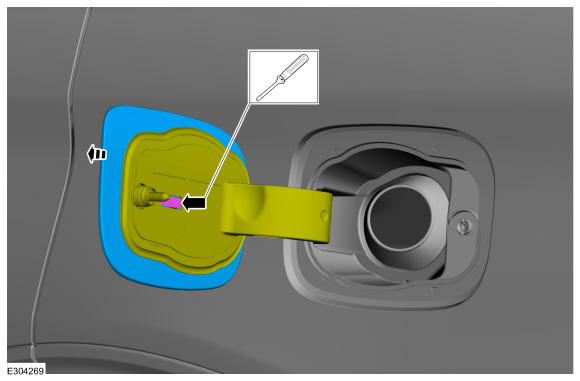

Using a screwdriver, pry the retaining tab back and slide the fuel filler door from the fuel filler door hinge.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Open the door...
Special Tool(s) /
General Equipment
Flat Headed Screw Driver
Knife
Removal
NOTE:
Removal steps in this procedure may contain installation details...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
BCM
B1314:11
White Lighting (Reflective Controls) Illumination Output: Circuit Short To Ground
GO to Pinpoint Test I
BCM
B1314:15
White Lighting (Reflective Controls) Illumination Output: Circuit Short To Battery or Open
GO to Pinpoint Test I
BCM
B1315:11
Backlighting (Non Reflective Controls) Illumination Output: Circuit Short To Ground
GO to Pinpoint Test C
BCM
B1315:15
Backlighting (Non Reflective Controls) Illumination Output: Circuit Short To Battery or Open
GO to Pinpoint Test C
DCME
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMF
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMG
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DCMH
B1170:11
Back Light: Circuit Short To Ground
GO to Pinpoint Test J
DDM
B12FF:11
Rear Door Switch Illumination: Circuit Short To Ground
GO to Pinpoint Test G
DDM
B12FF:15
Rear Door Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test G
DDM
U2010:11
Switch Illumination: Circuit Short to Ground
GO to Pinpoint Test E
DDM
U2010:15
Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test E
PDM
B12FF:11
Rear Door Switch Illumination: Circuit Short To Ground
GO to Pinpoint Test H
PDM
B12FF:15
Rear Door Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test H
PDM
U2010:11
Switch Illumination: Circuit Short to Ground
GO to Pinpoint Test F
PDM
U2010:15
Switch Illumination: Circuit Short To Battery or Open
GO to Pinpoint Test F
Symptom Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the steering column upper shaft.
Refer to: Steering Column Upper Shaft (211-04 Steering Column, Removal and Installation).
Remove the cowl panel...
