Lincoln Aviator: Exterior Trim and Ornamentation / Removal and Installation - Front Door Moulding
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH door shown, RH door similar.
-
NOTE:
Do not use excessive force when removing retainers, to avoid damage to moulding.

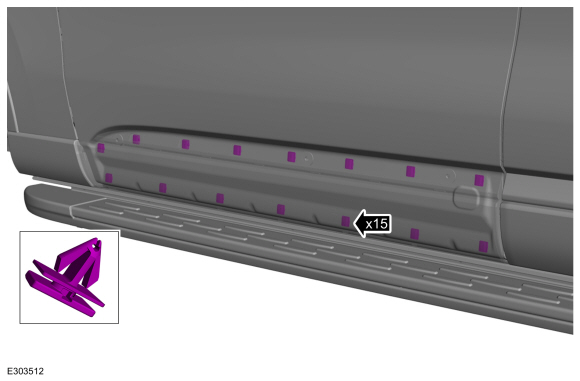

Using a non-marring trim tool, disengage the retainers attaching moulding to the door.
-

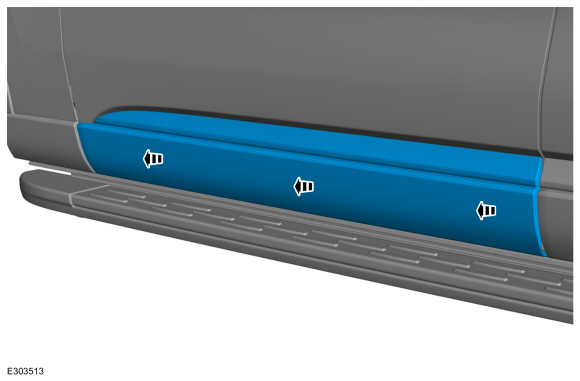

Remove the moulding.
Installation
-
To install, reverse the removal procedure.
