Lincoln Aviator: Exterior Lighting / Removal and Installation - Front Fog Lamp

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Remove the front bumper cover.
    Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

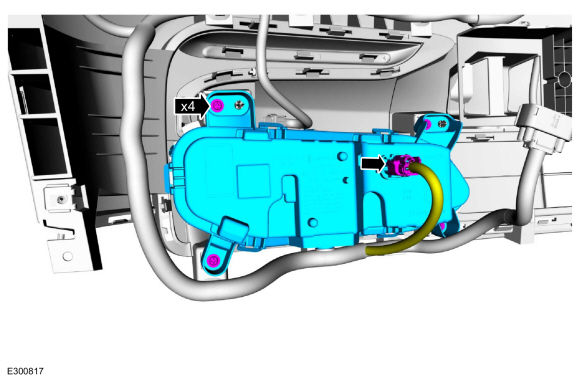

  1. Disconnect the electrical connector, remove the screws and the front fog lamp assembly.
    Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Adjust the front fog lamp.
    Refer to: Front Fog Lamp Adjustment (417-01 Exterior Lighting, General Procedures).
