Lincoln Aviator: Exterior Lighting / Removal and Installation - Front Turn Signal Lamp

Removal and Installation - Front Fog Lamp

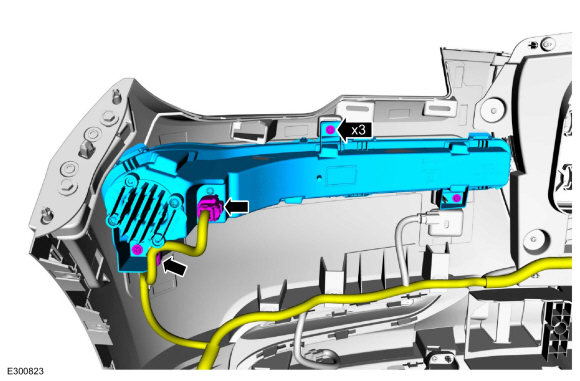

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: LH side shown, RH side similar. Remove the front bumper cover...

Removal and Installation - Headlamp Assembly

Removal NOTE: Removal steps in this procedure may contain installation details. NOTE: LH side shown, RH side similar. Remove the front bumper cover...
