Lincoln Aviator: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Module
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Disconnect the hands-free liftgate actuation module electrical connectors.
-

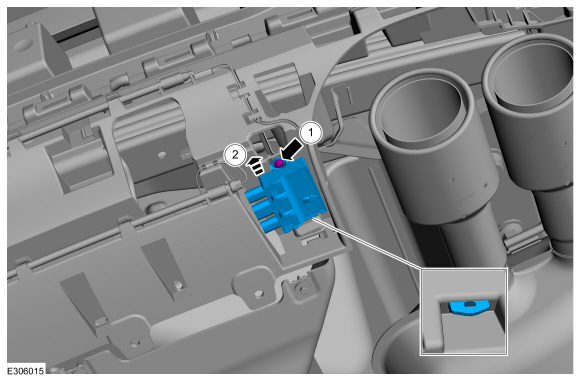

Remove the following items:
-
Remove the bolt.
Torque:
19 lb.in (2.2 Nm)
-
Remove the hands-free liftgate actuation module.
Прививки от столбняка в Москве
clinicamir.ru.
Installation
-
To install, reverse the removal procedure.
