Lincoln Aviator: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Lower Sensor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear bumper cover.
Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
-
Remove the following items:
-

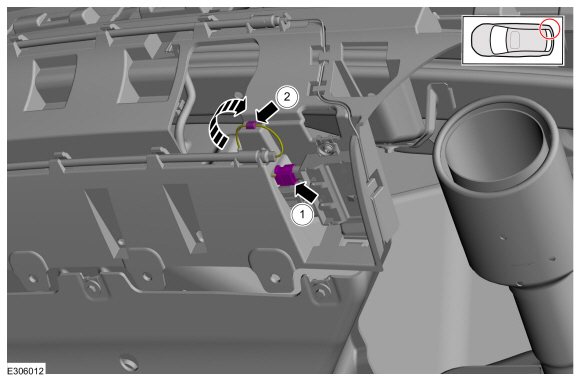

Disconnect the hands-free liftgate actuation lower sensor electrical connector.
-
Release the tabs and route the electrical wiring.
-

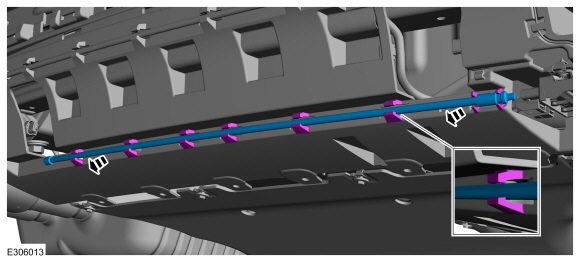

Pull gently and remove the hands-free liftgate actuation lower sensor.
Installation
-
To install, reverse the removal procedure.
