Lincoln Aviator: High Voltage Battery, Mounting and Cables / Removal and Installation - High Voltage High Current Fuse - Plug-In Hybrid Electric Vehicle (PHEV)
Removal
WARNING:
To prevent the risk of high-voltage shock, always follow
precisely all warnings and service instructions, including instructions
to depower the system. The high-voltage system utilizes approximately
450 volts DC, provided through high-voltage cables to its components and
modules. The high-voltage cables and wiring are identified by orange
harness tape or orange wire covering. All high-voltage components are
marked with high-voltage warning labels with a high-voltage symbol.
Failure to follow these instructions may result in serious personal
injury or death.
-
WARNING:
Before beginning any service procedure in this
section, refer to Safety Warnings in section 100-00 General Information.
Failure to follow this instruction may result in serious personal
injury.
Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
-
Remove the high voltage battery.
Refer to: High Voltage Battery - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, Removal and Installation).
-

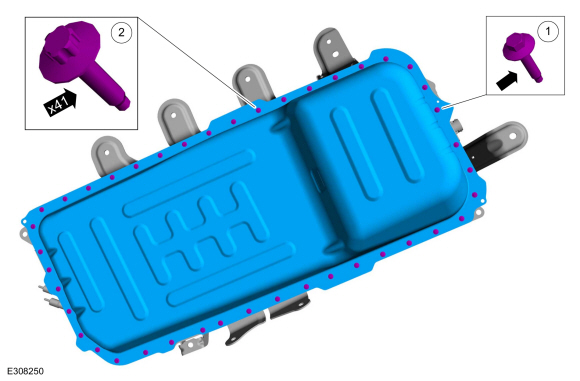

Remove the fasteners and the high voltage battery cover.
-

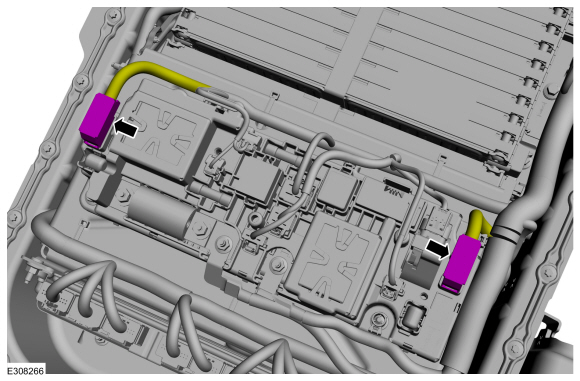

Disconnect the electrical connectors.
-

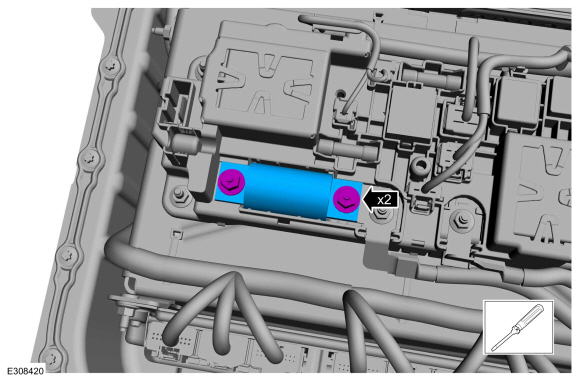

Remove the nuts and the high current fuse.
Torque:
93 lb.in (10.5 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTE:

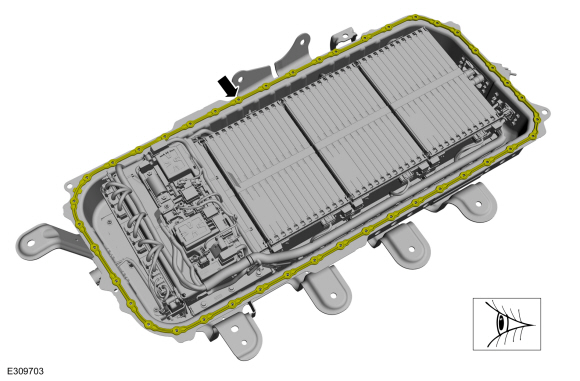

Make sure the correct position of seal, replace with new seal if necessary.
-
The fasteners must be installed by hand before final tightening.

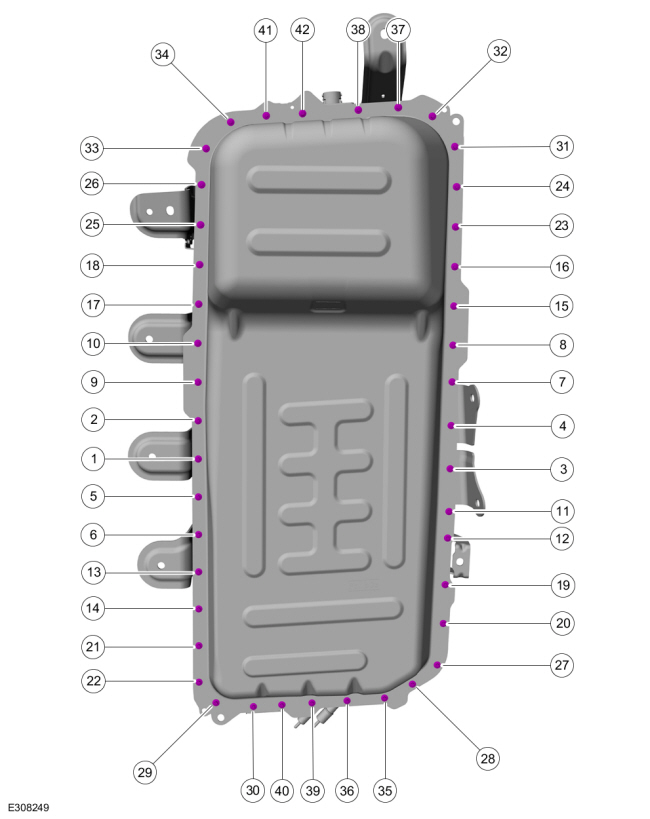

Tighten the fasteners in sequence shown in 2 stages.
Torque:
Stage 1:
53 lb.in (6 Nm)
Stage 2:
80 lb.in (9 Nm)
-
Check the high voltage battery pack for leaks.
Refer to: High Voltage Battery Leak Test - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, General Procedures).
-
Install the high voltage battery.
Refer to: High Voltage Battery - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, Removal and Installation).
