Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Front End Body Panels / Removal and Installation - Hood

Lincoln Aviator: Front End Body Panels / Removal and Installation - Hood

Removal

NOTE: Removal steps in this procedure may contain installation details.

On both sides.

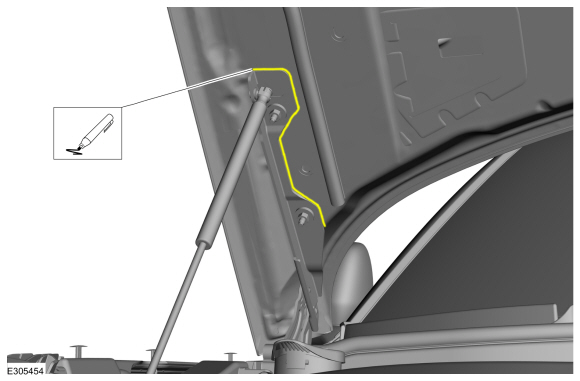

Index-mark the hood hinge location to aid in hood installation.

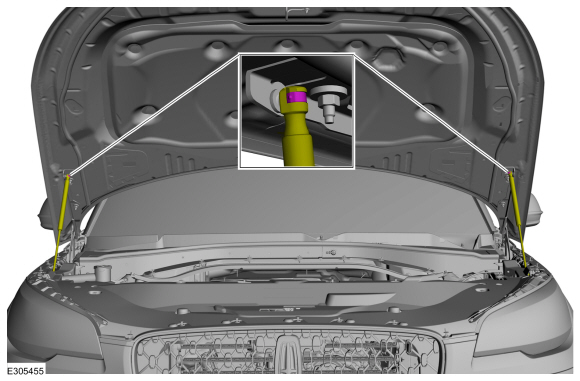

Remove the clips and the hood struts.

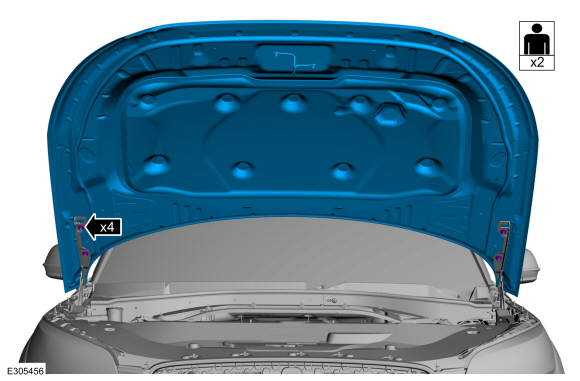

Remove the nuts and the hood.
Torque: 18 lb.ft (25 Nm)

NOTE: This step is only necessary when installing a new component.

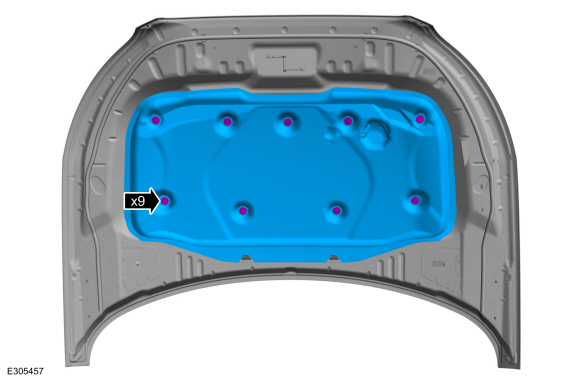

Remove the pin-type retainers and the hood insulation.

NOTE: This step is only necessary when installing a new component.

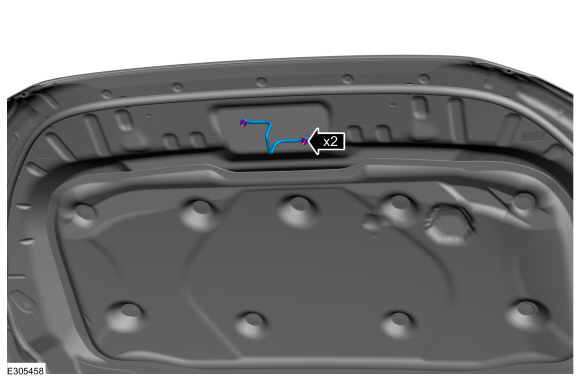

Remove the nuts and the hood striker.
Torque: 80 lb.in (9 Nm)

NOTE: This step is only necessary when installing a new component.

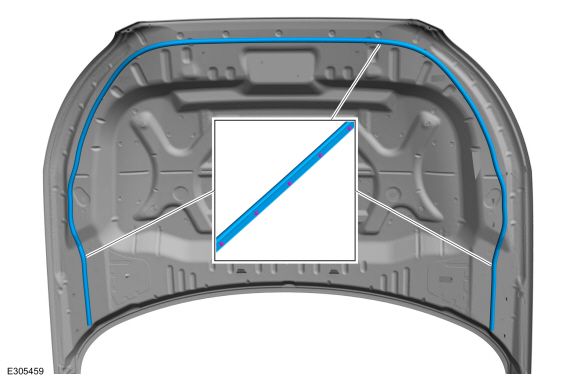

Remove the pin-type retainers and the weatherstrip.

Installation

To install, reverse the removal procedure.

Check the hood alignment. Align the hood as necessary.
Refer to: Hood Alignment (501-03 Body Closures, General Procedures).
