Lincoln Aviator 2020-2024 Service Manual / Body and Paint / Body and Paint / Front Seats / Removal and Installation - Front Seat Power Lumbar Assembly - Vehicles Without: Multi-Contour Seats

Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Power Lumbar Assembly - Vehicles Without: Multi-Contour Seats

Removal

NOTE: Driver seat shown, passenger seat similar.

  1. Remove the front seat.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
  1. Remove the front seat backrest panel.
    Refer to: Front Seat Backrest Panel (501-10A Front Seats, Removal and Installation).

Seats with 2-way power lumbar

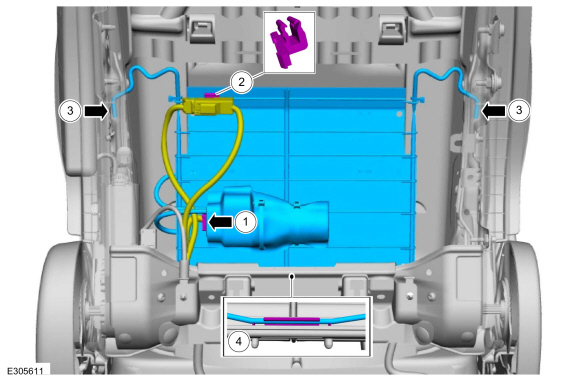

  1. Remove the front seat power lumbar assembly.
    1. Disconnect the electrical connector.
    1. Detach the retainer and position the heated seat electrical connector aside.
    1. Detach the upper J-hooks.
    1. Detach the lower retainers.

Seats with 4-way power lumbar

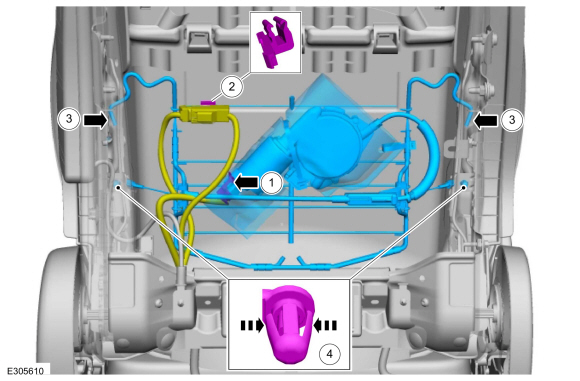

  1. Remove the front seat power lumbar assembly.
    1. Disconnect the electrical connector.
    1. Detach the retainer and position the heated seat electrical connector aside.
    1. Detach the upper J-hooks.
    1. Detach the lower retainer.

Installation

  1. To install, reverse the removal procedure.
