Lincoln Aviator: Front Seats / Removal and Installation - Front Seat Power Lumbar Assembly - Vehicles With: Multi-Contour Seats
Removal
NOTE:
Driver seat shown, passenger seat similar.
Power lumbar assembly
-
Remove the SCMG.
Refer to: Driver Multi-Contour Seat Module [SCMG] (501-10A Front Seats, Removal and Installation).
-

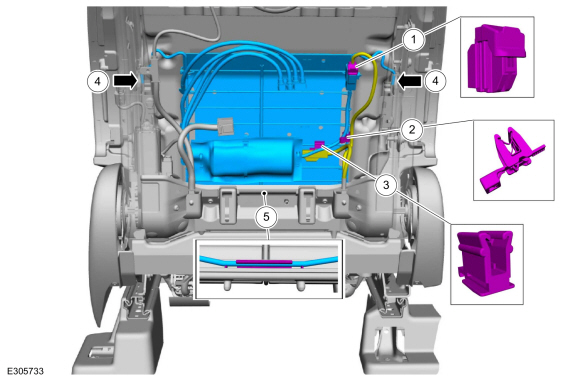

Remove the front seat power lumbar assembly.
-
Disconnect the electrical connector.
-
Detach the wiring harness retainer.
-
Detach the retainer and position the electrical connector aside.
-
Detach the upper J-hooks.
-
Detach the lower retainer.
Backrest side bolster
-
Remove the front seat backrest cover.
Refer to: Front Seat Backrest Cover - Vehicles With: Multi-Contour Seats (501-10A Front Seats, Removal and Installation).
-

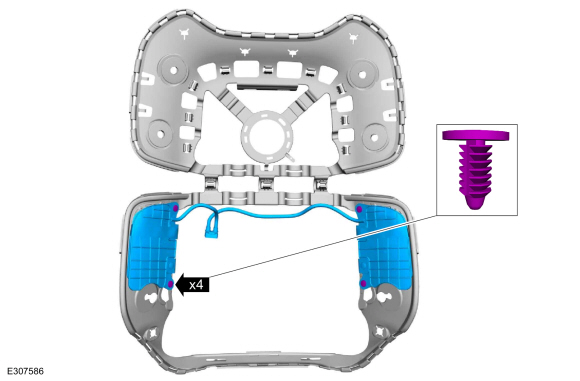

Detach the retainers and remove the front seat backrest side bolster.
Installation
-
To install, reverse the removal procedure.
