Lincoln Aviator: Horn / Removal and Installation - Horn
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the front bumper cover.
Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).
-

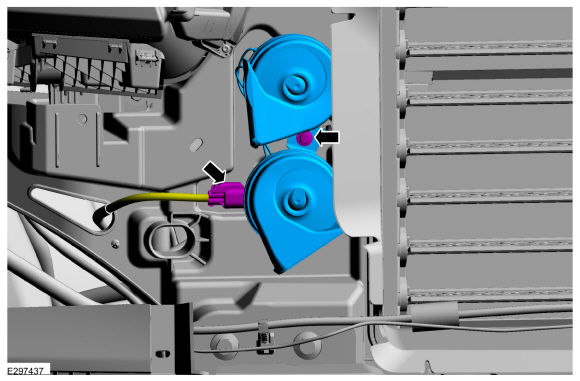

Disconnect the electrical connector, remove the bolt and the horn assembly.
Torque:
106 lb.in (12 Nm)
Installation
-
To install, reverse the removal procedure.
