Lincoln Aviator: Interior Trim and Ornamentation / Removal and Installation - Liftgate Trim Panel
Special Tool(s) /
General Equipment
Removal
-

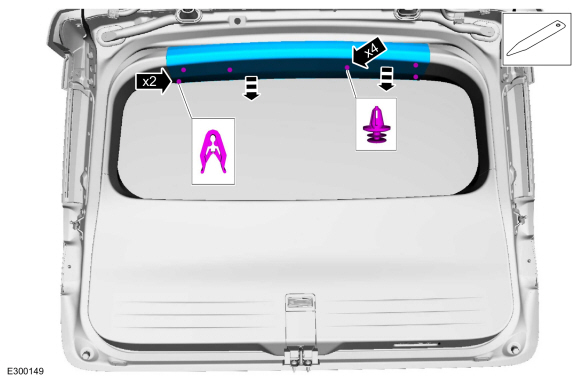

Release the clips and remove the liftgate center upper trim panel.
Use the General Equipment: Interior Trim Remover
-

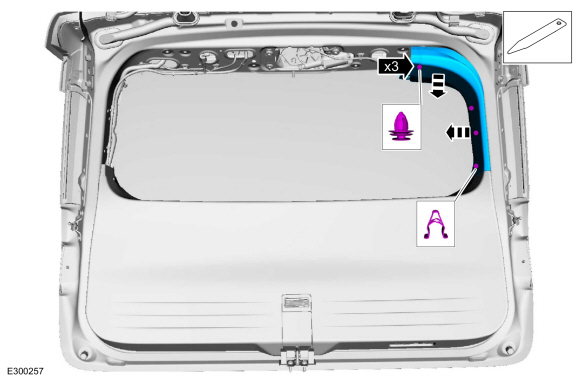

Release the clips and remove the liftgate RH upper trim panel.
Use the General Equipment: Interior Trim Remover
-

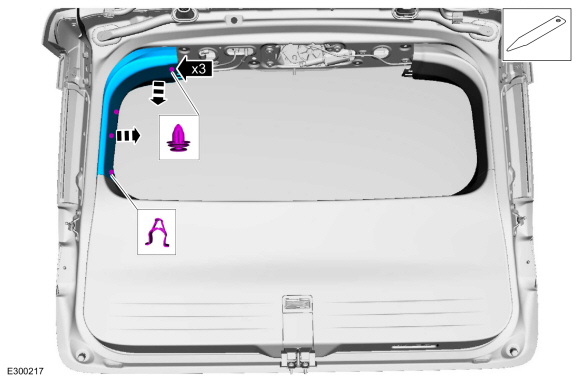

Release the clips and remove the LH upper trim panel.
Use the General Equipment: Interior Trim Remover
-

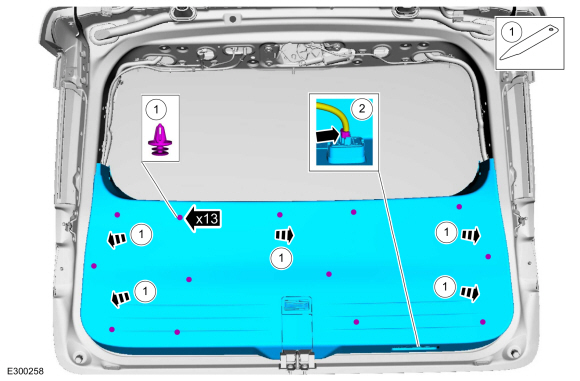

Remove the liftgate lower trim panel.
-
Release the clips.
Use the General Equipment: Interior Trim Remover
-
If equipped.
Disconnect the liftgate door lock control switch electrical connector.
Installation
-
NOTE:
Transfer parts as necessary.
To install, reverse the removal procedure.
