Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Park Lock Pawl Solenoid
Removal
-
Remove the transmission fluid pan, gasket and filter.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).
-

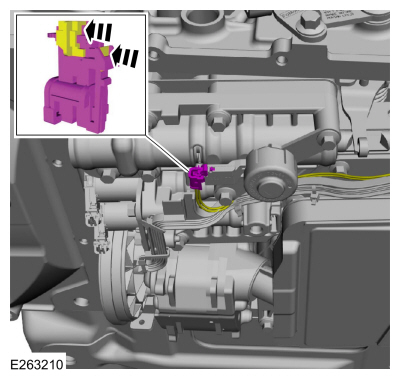

Slide the plastic lock to the unlock position. While
pressing the plastic tab, disconnect the electrical connector.
-

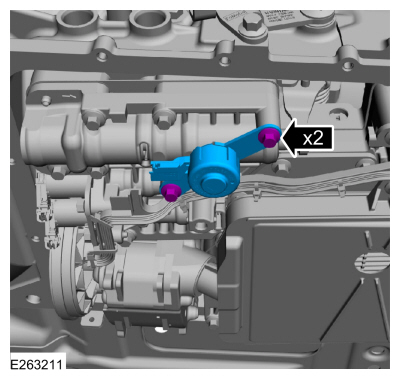

Remove the bolts and the park lock pawl solenoid.
Installation
-
Install the park lock pawl solenoid and the bolts.
Torque:
106 lb.in (12 Nm)
-

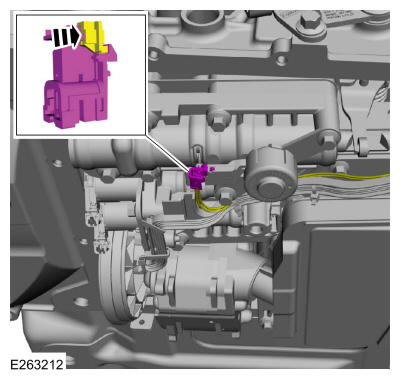

Connect the internal wiring harness electrical connector.
-
Slide the plastic lock to the locked position.
-
Install the transmission fluid pan, gasket and filter.
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).
Refer to: Transmission Fluid Pan, Gasket and Filter (307-01B Automatic Transmission - 10-Speed Automatic Transmission – 10R80 MHT, Removal and Installation).
