Lincoln Aviator 2020-2025 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Rear Door Check Arm

Lincoln Aviator: Body Closures / Removal and Installation - Rear Door Check Arm

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH similar.

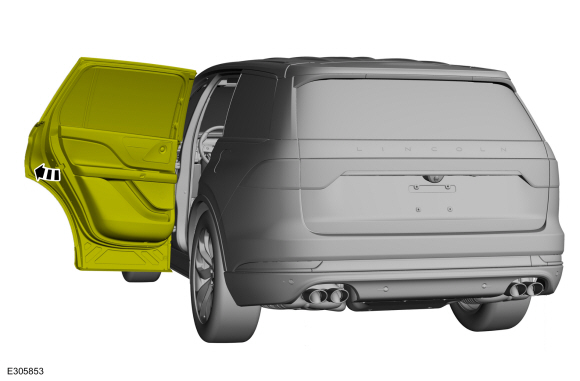

  1. Open the door.

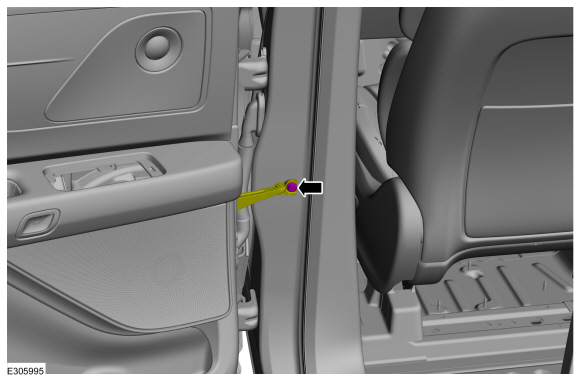

  1. Remove the check arm bolt.
    Torque: 18 lb.ft (25 Nm)

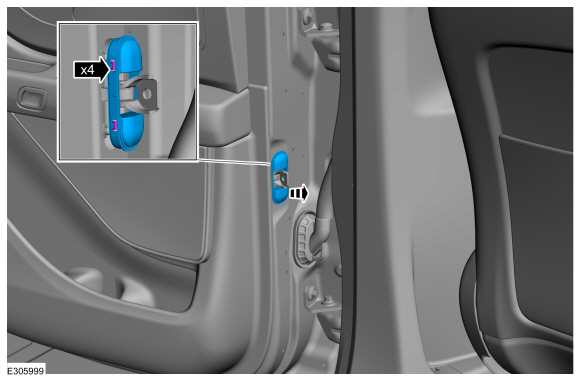

  1. Remove the rear door check arm cover.

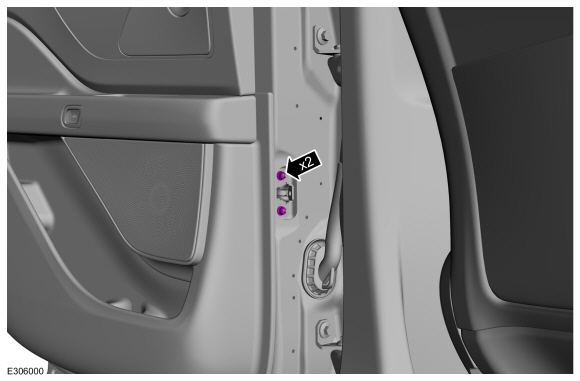

  1. Remove the nuts.
    Torque: 80 lb.in (9 Nm)
  1. Remove the rear door speaker. Refer to: Rear Door Speaker (415-00 Information and Entertainment System - General Information, Removal and Installation).

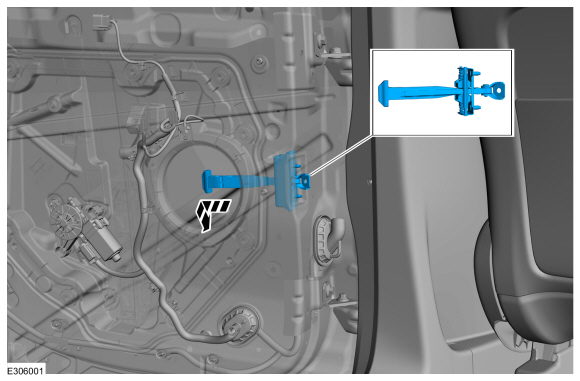

  1. Remove the check arm assembly.

Installation

  1. To install, reverse the removal procedure.
