Lincoln Aviator: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Regulator Motor
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
For rear door window regulator motors that are
non-functional it may be necessary to remove the rear door window
regulator motor prior to securing the rear door window glass.
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
NOTICE:
Damage to the rear door window glass may occur if not secured.

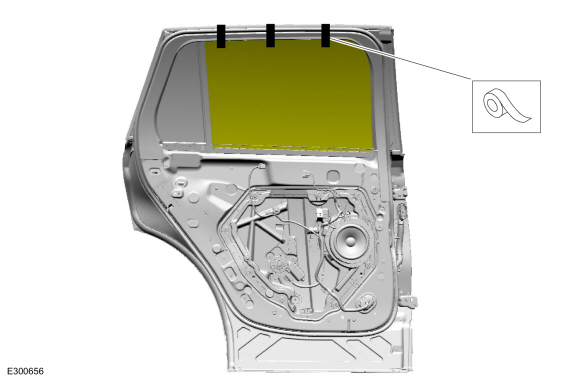

Secure the rear door window glass with tape.
-

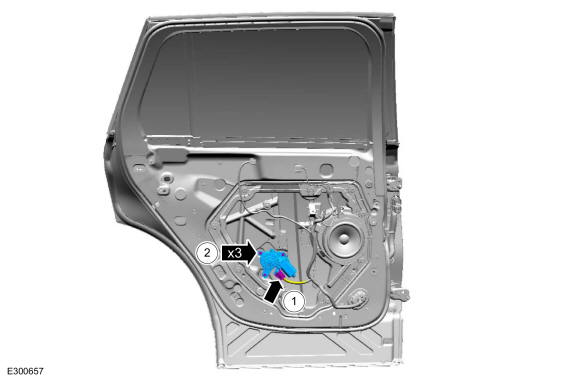

Remove the rear door window regulator motor.
-
Disconnect the rear door window regulator motor electrical connector.
-
Remove the bolts and the rear door window regulator motor.
Installation
-
To install, reverse the removal procedure.
-
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Special Tool(s) /
General Equipment
Punch
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
For rear door window regulator motors that are
non-functional it will be necessary to remove the rear door window
regulator motor prior to removing the rear door window regulator...
Other information:
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
PCM
P0116:00
Engine Coolant Temperature Sensor 1 Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test DL
PCM
P0116:00
Engine Coolant Temperature Sensor 1 Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test DX
PCM
P0117:00
Engine Coolant Temperature Sensor 1 Circuit Low: No Sub Type Information
GO to Pinpoint Test DX
PCM
P0118:00
Engine Coolant Temperature Sensor 1 Circuit High: No Sub Type Information
GO to Pinpoint Test DX
PCM
P0119:00
Engine Coolant Temperature Sensor 1 Circuit Intermittent/Erratic: No Sub Type Information
GO to Pinpoint Test DL
PCM
P0119:00
Engine Coolant Temperature Sensor 1 Circuit Intermittent/Erratic: No Sub Type Information
GO to Pinpoint Test DX
PCM
P011E:00
Engine Coolant Temperature 1 / Ambient Air Temperature Correlation: No Sub Type Information
GO to Pinpoint Test DX
PCM
P0125:00
Insufficient Coolant Temp For Closed Loop Fuel Control: No Sub Type Information
GO to Pinpoint Test DL
PCM
P0125:00
Insufficient Coolant Temp For Closed Loop Fuel Control: No Sub Type Information
GO to Pinpoint Test DX
PCM
P0128:00
Coolant Thermostat (Coolant Temp Below Thermostat Regulating Temperature): No Sub Type Information
GO to Pinpoint Test DL
PCM
P0128:00
Coolant Thermostat (Coolant Temp Below Thermostat Regulating Temperature): No Sub Type Information
GO to Pinpoint Test DX
PCM
P017C:00
Cylinder Head Temperature Sensor Circuit Low: No Sub Type Information
GO to Pinpoint Test DL
PCM
P017D:00
Cylinder Head Temperature Sensor Circuit High: No Sub Type Information
GO to Pinpoint Test DL
PCM
P017E:00
Cylinder Head Temperature Sensor Circuit Intermittent/Erratic: No Sub Type Information
GO to Pinpoint Test DL
PCM
P101F:00
Cylinder Head Temperature Sensor 1 Out Of Self Test Range: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1021:00
Cylinder Head Temperature Sensor 2 Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1022:00
Cylinder Head Temperature Sensor 2 Circuit Low: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1023:00
Cylinder Head Temperature Sensor 2 Circuit High: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1024:00
Cylinder Head Temperature Sensor 2 Circuit Intermittent/Erratic: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1025:00
Cylinder Head Temperature Sensor 2 Out Of Self Test Range: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1026:00
Engine Coolant Temperature 1 / Cylinder Head Temperature 2 Correlation: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1116:00
Engine Coolant Temperature Sensor Out Of Self Test Range: No Sub Type Information
GO to Pinpoint Test DX
PCM
P1117:00
Engine Coolant Temperature Sensor Circuit Intermittent: No Sub Type Information
GO to Pinpoint Test DX
PCM
P111B:00
Engine Coolant Warm-Up Not Detected: No Sub Type Information
GO to Pinpoint Test DX
PCM
P1285:00
Cylinder Head Over Temperature Condition: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1288:00
Cylinder Head Temperature Sensor Out Of Self Test Range: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1289:00
Cylinder Head Temperature Sensor Circuit High: No Sub Type Information
GO to Pinpoint Test DL
PCM
P128A:00
Cylinder Head Temperature Sensor Circuit Intermittent/Erratic: No Sub Type Information
GO to Pinpoint Test DL
PCM
P1290:00
Cylinder Head Temperature Sensor Circuit Low: No Sub Type Information
GO to Pinpoint Test DL
Global Customer Symptom Code (GCSC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
Item
Description
1
Internal wiring harness retaining bolt
2
Internal wiring harness
3
Park lock pawl solenoid
4
Solenoid retaining plate bolts
5
Solenoid retaining plate
6
TCC solenoid
7
LPC solenoid
8
Shift solenoid retaining plate bolts
9
Shift solenoid retaining plate
10
SSD
11
SSE
12
SSB
13
SSC
14
SSF
15
SSA
16
TFT
17
Valve channel plate bolts
18
Valve channel plate
19
Lower-to-upper valve body bolts
20
Lower valve body
21
Upper valve body
22
Valve body dowel pins
Lower Valve Body
1
Valve body separator plate bolts
2
Valve body separator plate
3
TCC damper
4
LPC damper assembly
5
Check valve assemblies
6
Check balls (quantity 5)
7
LPC anti-backflow valve assembly
8
TCC priority valve assembly
9
Park lock pawl valve
10
A clutch control valve
11
SSA
12
F clutch control valve
13
SSF
14
C clutch control valve
15
SSC
16
B clutch control valve
17
SSB
18
E clutch control valve
19
SSE
20
D clutch control valve
21
SSD
22
Shift solenoid retainers
Upper Valve Body
1
Lube control valve assembly
2
Plug and spring assembly
3
C clutch latch valve assembly
4
B clutch latch valve assembly
5
F clutch latch valve assembly
6
A clutch latch valve assembly
7
Plug and spring assembly
8
TCC regulator valve assembly
9
Main regulator valve assembly
