Lincoln Aviator: Wipers and Washers / Removal and Installation - Rear Window Wiper Pivot Arm
Special Tool(s) /
General Equipment
Removal
-
Remove the rear spoiler.
Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).
-

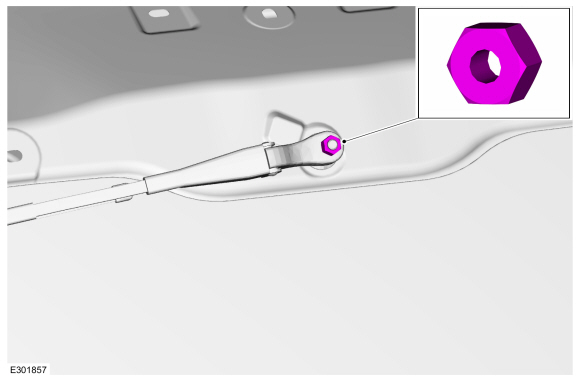

Remove the rear window wiper pivot arm nut.
-

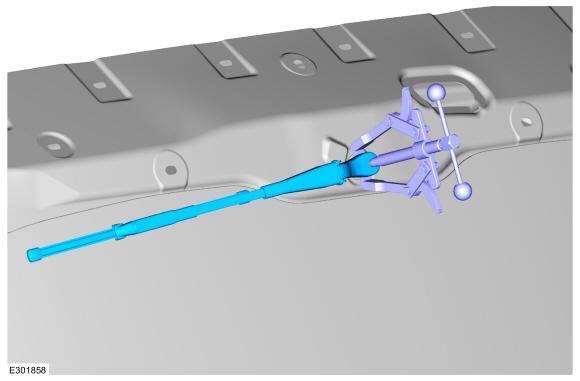

Remove the rear window wiper pivot arm.
Use the General Equipment: Two Leg Puller
Installation
-
Verify the windshield wiper motor is in the PARK position.
-

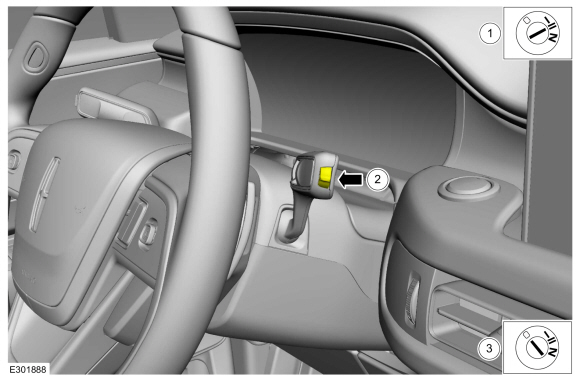

Turn the ignition ON.
-
Operate the switch ON then OFF to cycle the rear windshield wiper motor.
-
Turn the ignition OFF.
-

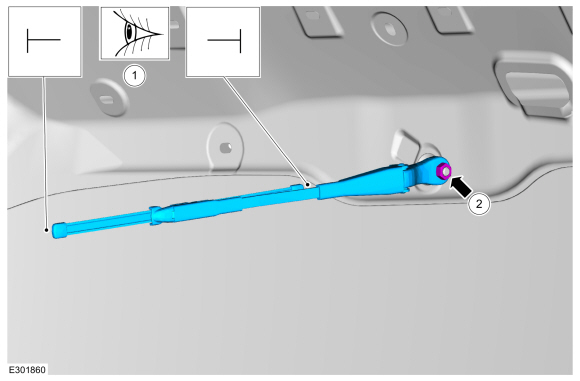

Install the wiper pivot arm.
-
Align the wiper blade with the marks on the glass.
-
Install the rear window wiper pivot arm nut.
Torque:
106 lb.in (12 Nm)
-
Install the rear spoiler.
Refer to: Rear Spoiler (501-08 Exterior Trim and Ornamentation, Removal and Installation).
