Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Removal and Installation - Remote Keyless Entry (RKE) Exterior Sounder
Removal
-
Remove the air cleaner intake pipe.
Refer to: Air Cleaner Intake Pipe (303-12 Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
-
Remove the CAC outlet pipe.
Refer to: Charge Air Cooler (CAC) Outlet Pipe (303-12 Intake Air Distribution and Filtering - 3.0L EcoBoost/3.0L EcoBoost – Hybrid (BQ), Removal and Installation).
-

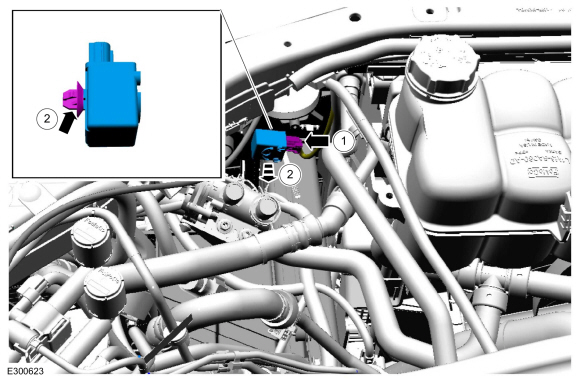

Remove the RKE exterior sounder.
-
Disconnect the RKE exterior sounder electrical connector.
-
Remove the RKE exterior sounder.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
Remove the rear door window control switch bezel assembly...
Other information:
I..
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices.REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
PCM
P0087:00
Fuel Rail/System Pressure - Too Low (Bank 1): No Sub Type Information
GO to Pinpoint Test DD
PCM
P0088:00
Fuel Rail/System Pressure - Too High (Bank 1): No Sub Type Information
GO to Pinpoint Test DD
PCM
P0181:00
Fuel Temperature Sensor A Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test DD
PCM
P0182:00
Fuel Temperature Sensor A Circuit Low: No Sub Type Information
GO to Pinpoint Test DD
PCM
P0183:00
Fuel Temperature Sensor A Circuit High: No Sub Type Information
GO to Pinpoint Test DD
PCM
P018B:00
Fuel Pressure Sensor B Circuit Range/Performance: No Sub Type Information
GO to Pinpoint Test DD
PCM
P018C:00
Fuel Pressure Sensor B Circuit Low: No Sub Type Information
GO to Pinpoint Test DD
PCM
P018D:00
Fuel Pressure Sensor B Circuit High: No Sub Type Information
GO to Pinpoint Test DD
PCM
P0192:00
Fuel Rail Pressure Sensor Circuit Low (Bank 1): No Sub Type Information
GO to Pinpoint Test DD
PCM
P0193:00
Fuel Rail Pressure Sensor Circuit High (Bank 1): No Sub Type Information
GO to Pinpoint Test DD
Global Customer Symptom Code (GCSC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices...
Categories
The front outboard and rear safety restraints
in the vehicle are combination lap and
shoulder belts.
Insert the belt tongue into the proper
buckle (the buckle closest to the direction
the tongue is coming from) until you hear
a snap and feel it latch. Make sure that
you securely fasten the tongue in the
buckle.

To unfasten, press the release button
and remove the tongue from the buckle.
read more
