Lincoln Aviator: Roof Opening Panel / Removal and Installation - Roof Opening Panel Glass

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This procedure is for the sliding glass panel only.

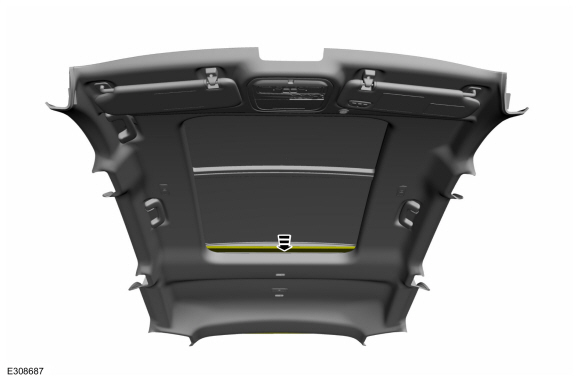

  1. Place the roof opening panel shield to the fully OPEN position.
  1. On both sides.

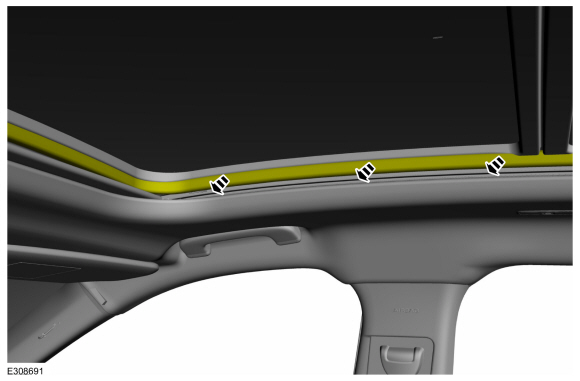

    Detach part of the roof opening panel seal from the roof opening panel frame as necessary.
  1. On both sides.

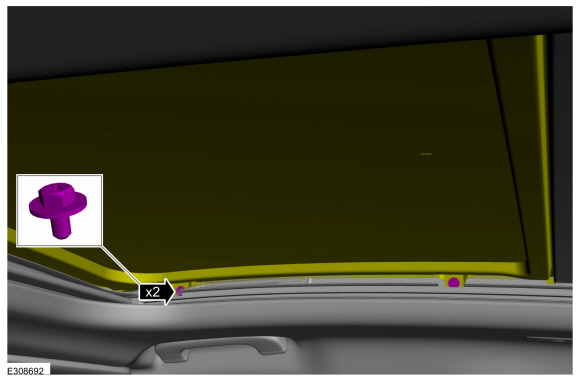

    Remove the roof opening panel glass screws.
    Torque: 53 lb.in (6 Nm)

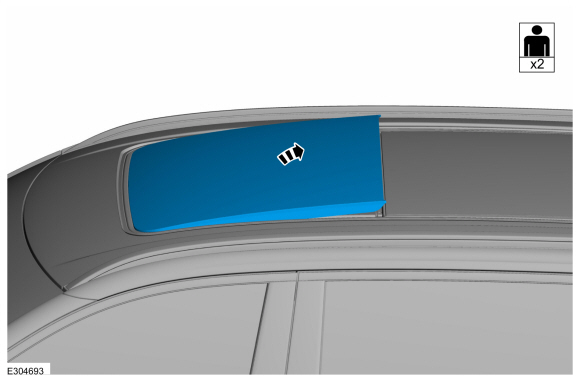

  1. With the help of an assistant
    Remove the roof opening panel glass.
mostbet promo code

Installation

  1. To install, reverse the removal procedure.
  1. Align the roof opening panel glass.
    Refer to: Roof Opening Panel Alignment (501-17 Roof Opening Panel, General Procedures).
  1. Carry out the roof opening panel initialization.
    Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
