Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Single Seat Backrest Cover - Vehicles With: Second Row Captain Chairs
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) seat shown, RH (right hand) seat similar.
-
Remove the second row seat.
Refer to: Second Row Seat - Vehicles With: Second Row Captain Chairs (501-10B Second Row Seats, Removal and Installation).
-
Remove the second row single seat armrest.
Refer to: Second Row Single Seat Armrest - Vehicles With: Second Row Captain Chairs (501-10B Second Row Seats, Removal and Installation).
-
Remove the second row seat head restraint guide sleeve.
Refer to: Second Row Seat Head Restraint Guide Sleeve (501-10B Second Row Seats, Removal and Installation).
-

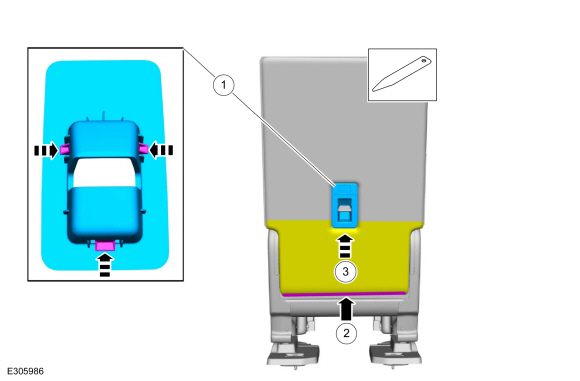

Release the retainers and remove the second row single seat easy entry seat fold switch bezel.
Use the General Equipment: Interior Trim Remover
-

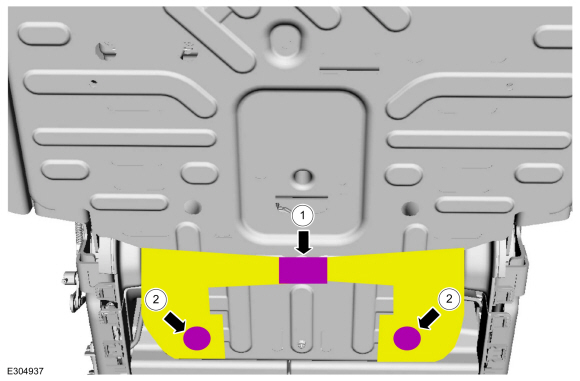

Remove the second row single seat center valance.
-
Release the retainer.
-
Release the retainer.
-

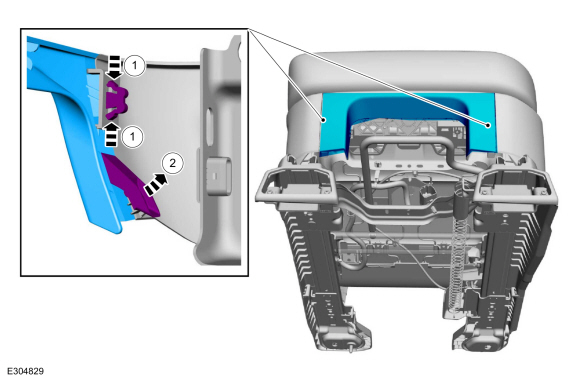

Remove the second row single seat inboard side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the side shield and pull outward.
-
Lift the side shield and pull outward.
-
Push the side shield forward.
-
-

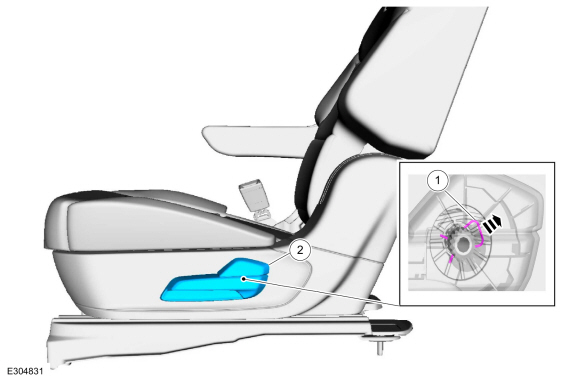

Remove the second row single seat recline handle retaining clip.
-
Remove the second row seat recline handle.
-

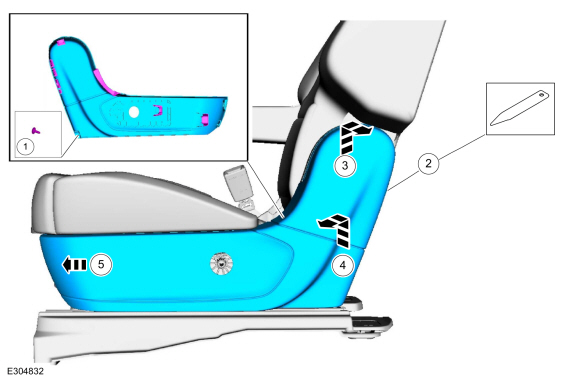

Remove the second row single seat outboard side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the side shield and pull outward.
-
Lift the side shield and pull outward.
-
Push the side shield forward.
-
-

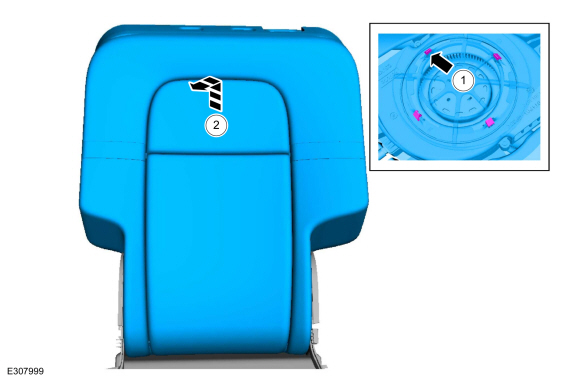

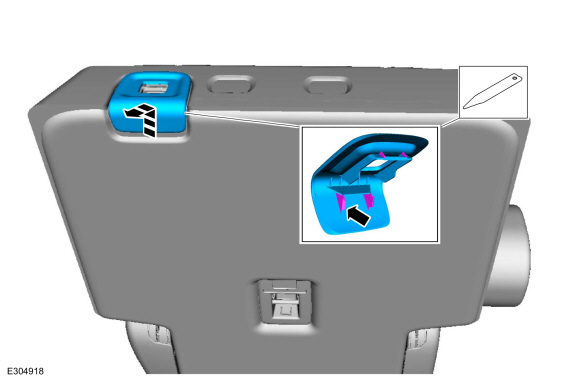

Remove the second row single seat backrest cover child safety seat tether anchor bezel.
Use the General Equipment: Interior Trim Remover
-
Release the second row single seat backrest cover lower J-clip.
-

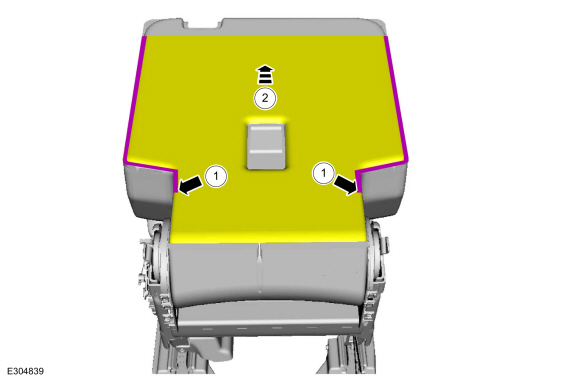

Lift the second row single seat backrest cover.
-
-
On both sides.
Unzip the second row single seat backrest cover.
-
Position the second row single seat backrest cover aside.
-
-
Release the hook-and-loop retainer.
-
Remove the pin-type retainers.
-

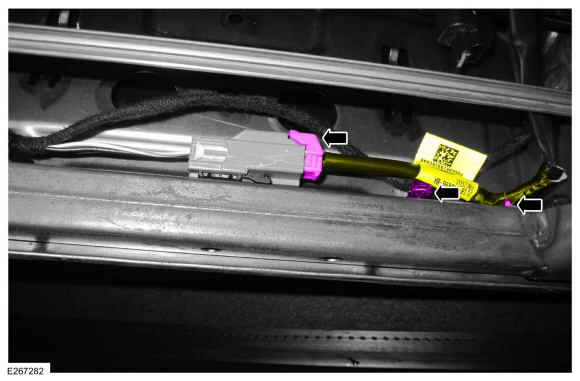

Disconnect the second row single seat backrest heater mat electrical connector and release the retainers.
-
-
Release the second row single seat backrest blower motor vent bag retaining clips
-
Remove the second row single seat backrest cover and foam.
-
NOTICE:
Use care when separating the seat backrest trim
cover from the hook-and-loop strips or the hook-and-loop strips may be
torn from the seat backrest foam.
NOTICE:
Use care when separating the seat backrest trim
cover from the hook-and arrow or the hook may be torn from the seat
backrest foam.
NOTE:
This step is only necessary when installing a new component.
Remove the second row single seat backrest cover.
-

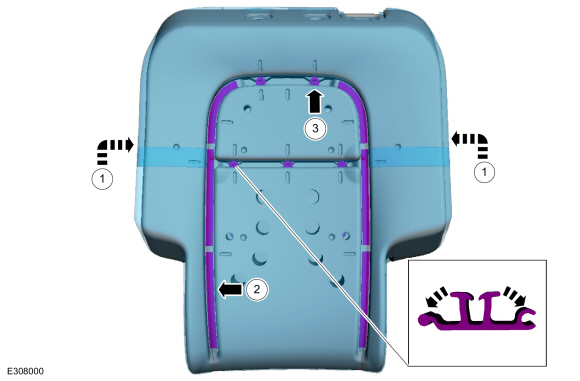

Invert the cover.
-
Release the hook-and-loop strips.
-
Release the hook-and-arrows.
Installation
-
To install, reverse the removal procedure.
