Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Single Seat Cushion Cover
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) seat shown, RH (right hand) seat similar.
-
Remove the second row seat.
Refer to: Second Row Seat (501-10B Second Row Seats, Removal and Installation).
-
-

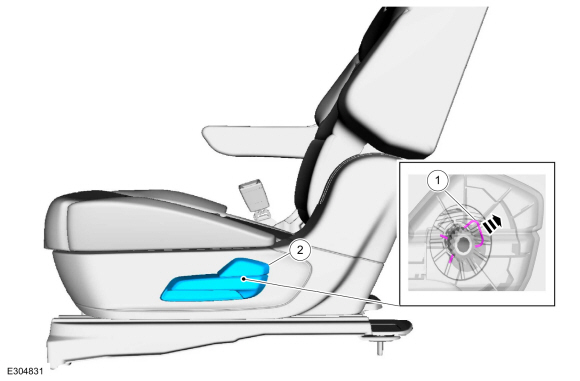

Remove the second row seat recline handle retaining clip.
-
Remove the second row seat recline handle.
-

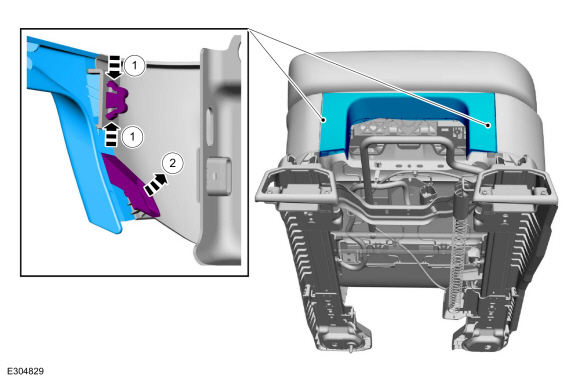

Remove the second row seat center valance.
-
Release the retainer.
-
Release the retainer.
-

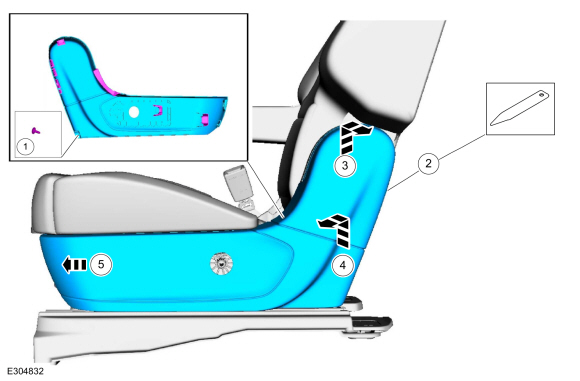

Remove the second row seat outboard side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the side shield and pull outward.
-
Lift the side shield and pull outward.
-
Push the side shield forward.
-

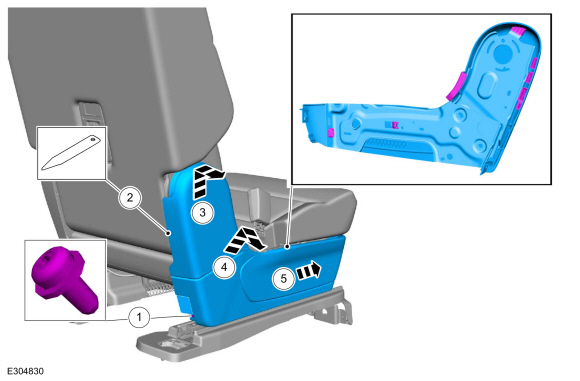

Remove the second row seat inboard side shield.
-
Remove the screw.
-
Detach the retainers.
Use the General Equipment: Interior Trim Remover
-
Lift the side shield and pull outward.
-
Lift the side shield and pull outward.
-
Push the side shield forward.
-
If equipped.

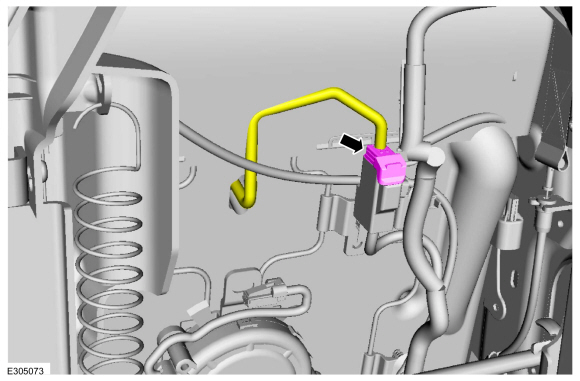

Disconnect the second row single seat cushion heater mat electrical connector.
-
-

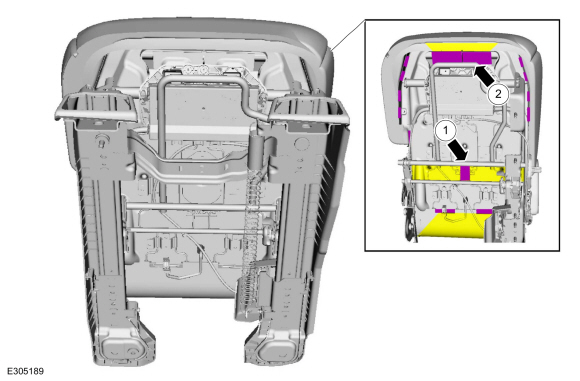

Release the second row single seat cushion cover hook-and-loop retainer.
-
Detach the second row single seat cushion cover J-clips.
-

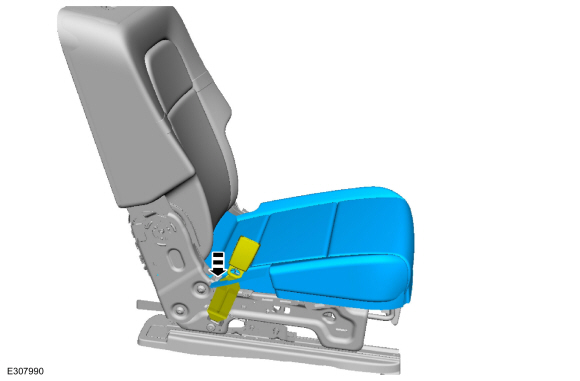

Position the seatbelt buckle through the second row single seat cushion cover.
-

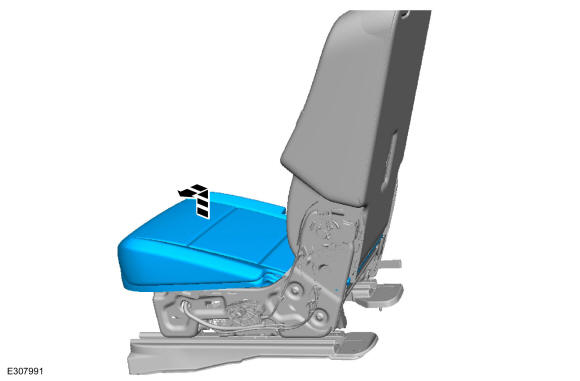

Remove the second row single seat cushion cover and foam as an assembly.
-
NOTICE:
Use care when separating the seat cushion trim cover
from the hook-and-loop strips or the hook-and-loop strips may be torn
from the seat cushion foam.
NOTICE:
Use care when separating the seat cushion trim cover
from the hook-and arrow or the hook may be torn from the seat cushion
foam.
NOTE:
This step is only necessary when installing a new component.

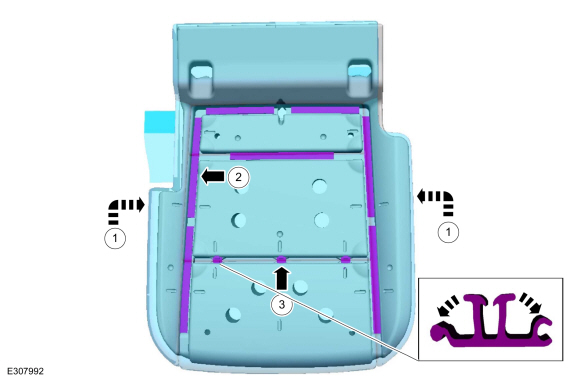

Remove the second row single seat cushion cover.
-
Invert the cover.
-
Release the hook-and-loop strips.
-
Release the hook-and-arrows.
Installation
-
To install, reverse the removal procedure.
