Lincoln Aviator: Second Row Seats / Removal and Installation - Second Row Single Seat Easy Entry Seat Fold Switch

Removal and Installation - Second Row Single Seat Cushion Cover - Vehicles With: Second Row Captain Chairs

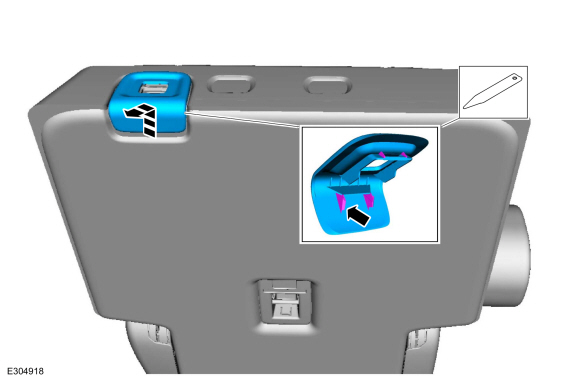

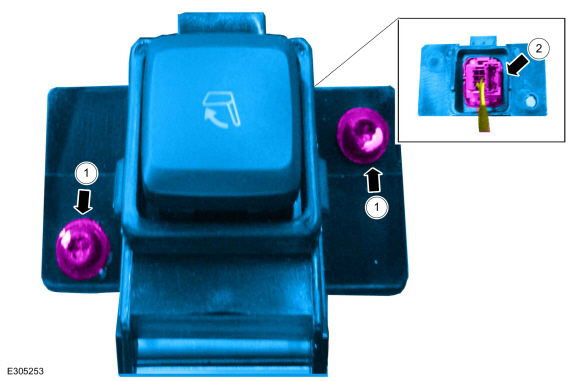

Special Tool(s) / General Equipment Interior Trim Remover Removal NOTE: LH (left hand) seat shown, RH (right hand) seat similar. Remove the second row seat...
