Lincoln Aviator 2020-2026 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Range (TR) Sensor

Lincoln Aviator: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Transmission Range (TR) Sensor

Special Tool(s) / General Equipment

	307-783 Installer, Roll Pin
Rubber Mallet
Punch

Materials

Name	Specification
Motorcraft® MERCON® ULV Automatic Transmission Fluid XT-12-QULV	WSS-M2C949-A, MERCON® ULV

Removal

Remove the main control valve body.
Refer to: Main Control Valve Body (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).

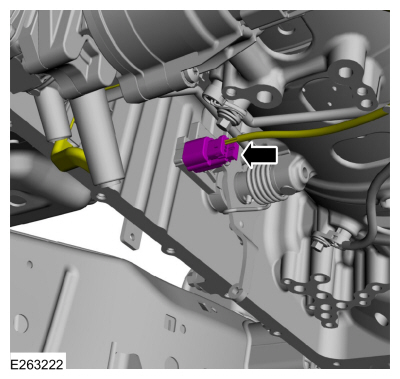

Disconnect the TR sensor electrical connector and position the transmission wiring harness aside.

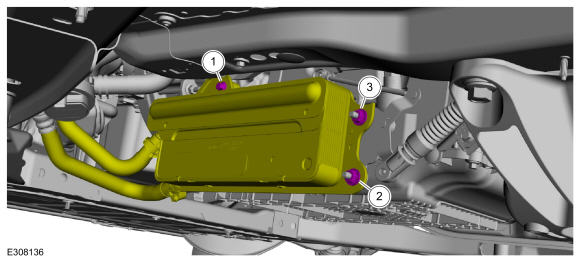

Remove the bolt, nuts and position aside the transmission fluid cooler.

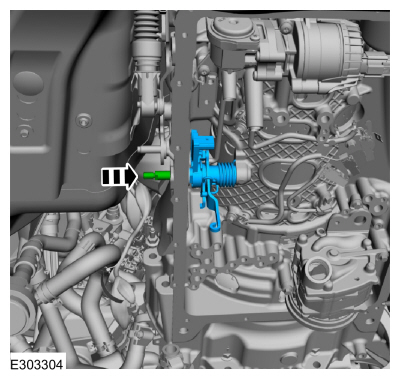

Disconnect the manual park overide lever.

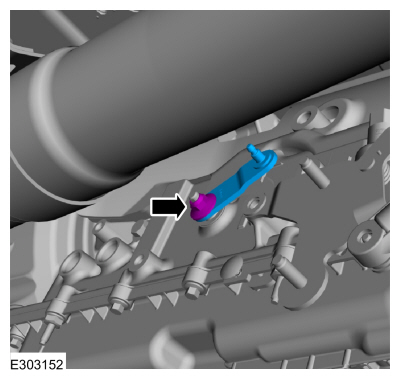

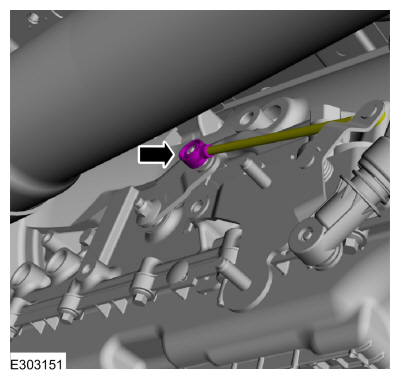

Remove the nut and the manual park overide lever.

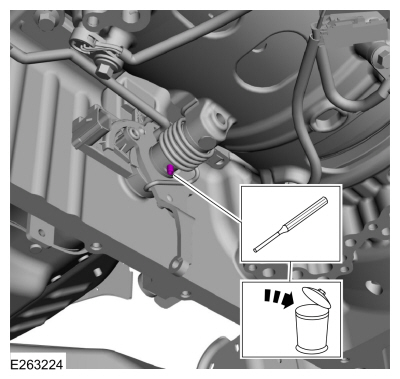

Using a punch, remove and discard the manual shaft-to-TR sensor roll pin (7G100).
Use the General Equipment: Punch

Loosen the detent spring bolt and the detent spring enough to remove the tension from the TR sensor.

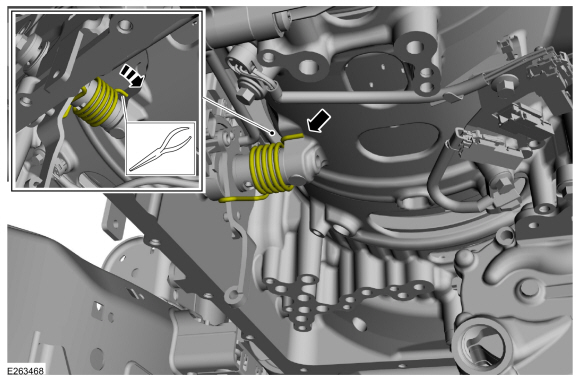

Release the tension from the park return spring.

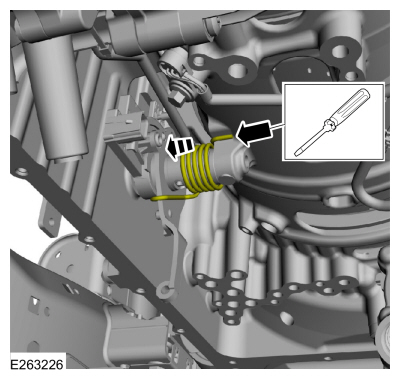

- Slide the end of the park return spring off the transmission case.

Remove the manual shaft from the TR sensor.

Remove the TR sensor (7H557).

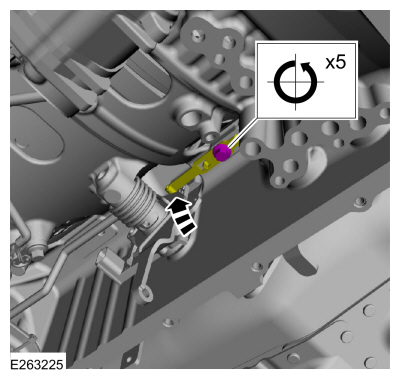

1. Rotate the TR sensor.

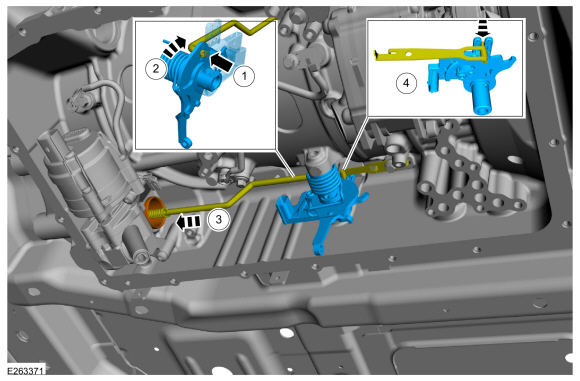

1. Disconnect the park pawl actuator rod and remove the TR sensor.

Installation

Install the TR sensor.
1. Connect the park pawl actuator rod to the TR sensor.
1. Rotate the TR sensor.
1. Position the park pawl actuator rod into the park pawl sleeve.

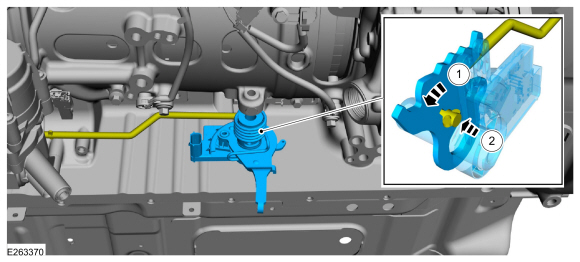

1. Align the TR sensor to the detent spring.

Slide the manual shaft into the TR sensor.

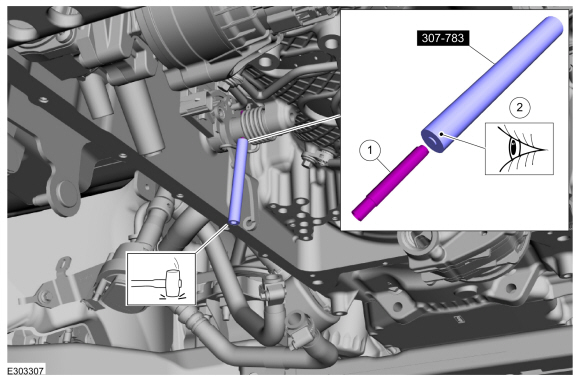

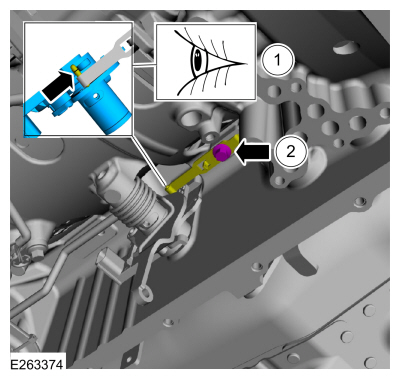

Using the dimpled end of the special tool, install the new manual shaft-to-TR sensor roll pin flush with the shaft.
1. New roll pin
1. Dimpled end of special tool
  Use Special Service Tool: 307-783 Installer, Roll Pin.
  Use the General Equipment: Rubber Mallet

1. Align the detent spring in the center of the TR sensor.
1. Torque: 97 lb.in (11 Nm)

Slide the end of the park return spring onto the transmission case.

Install the manual park overide lever and nut.
Torque: 106 lb.in (12 Nm)

Connect the manual park overide lever.

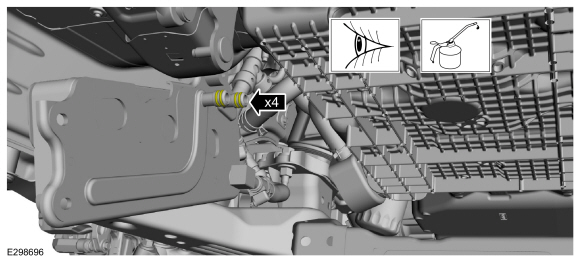

Inspect the transmission fluid cooler O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals.
Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A, ) (MERCON® ULV)

NOTICE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.
Install the transmission fluid cooler and loosely install the bolt and the nuts by hand.

NOTICE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

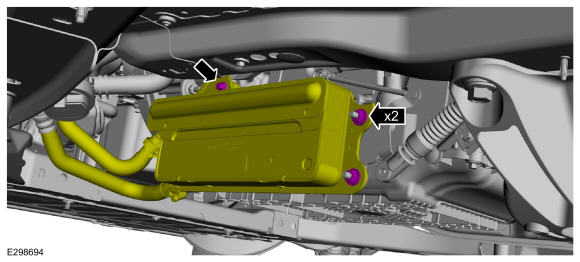

Tighten the bolt and nuts in the sequence shown.
Torque: 18 lb.ft (25 Nm)

Connect the TR sensor electrical connector.

Install the main control valve body.
Refer to: Main Control Valve Body (307-01A Automatic Transmission - 10-Speed Automatic Transmission – 10R60, Removal and Installation).
