Lincoln Aviator: Automatic Transmission External Controls - 10-Speed Automatic Transmission – 10R60 / Removal and Installation - Upshift Paddle Switch
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the steering wheel.
Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
Refer to: Steering Wheel - Vehicles With: Adaptive Steering (211-04 Steering Column, Removal and Installation).
-

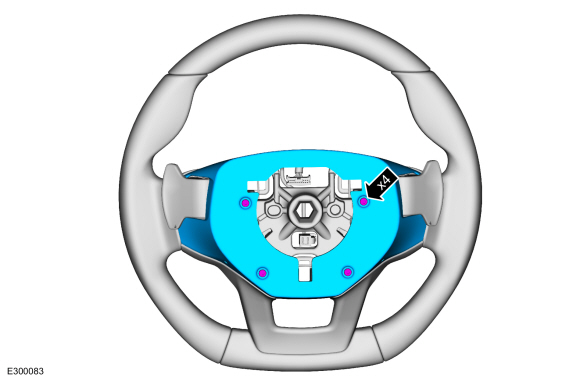

Remove the bolts and the steering wheel rear cover.
-
On both sides.

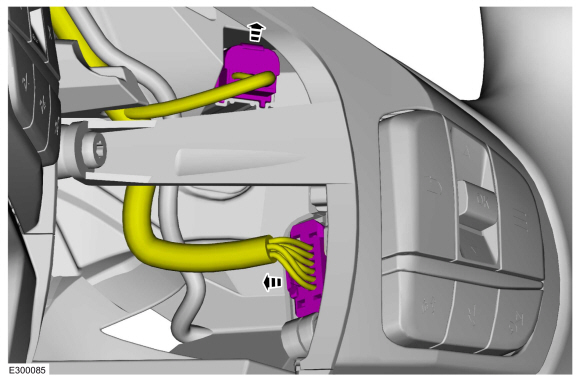

Disconnect the electrical connectors.
-

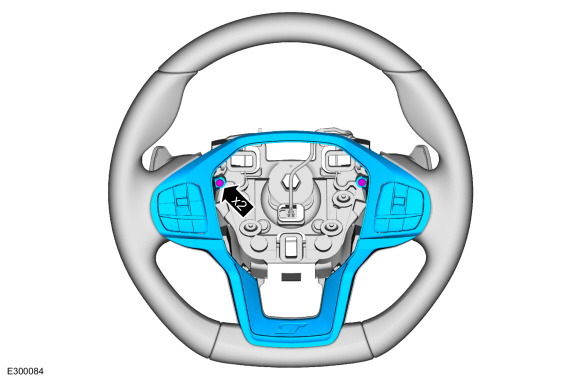

Remove the bolts and the steering wheel bezel.
-

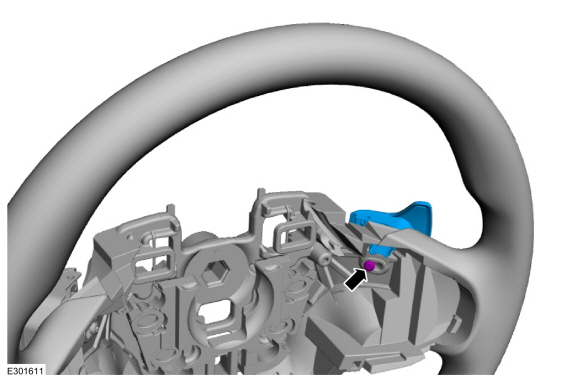

Remove the bolt and the upshift paddle switch.
Installation
-
To install, reverse the removal procedure.
