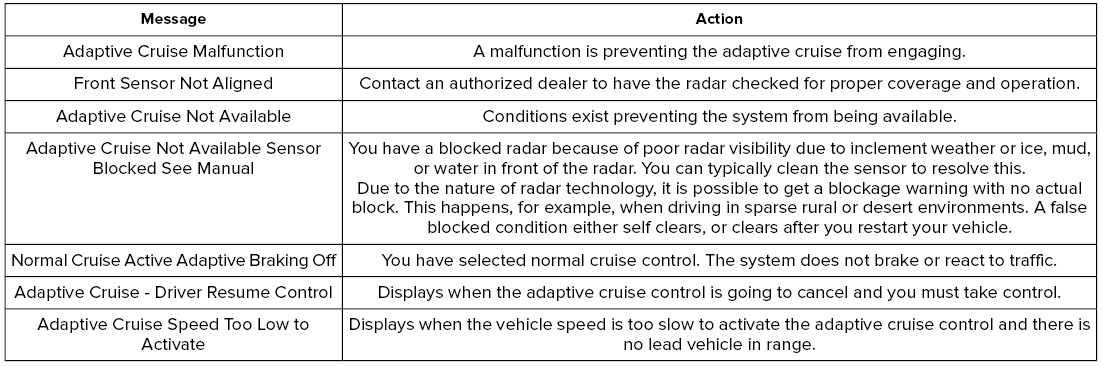

Lincoln Aviator: Adaptive Cruise Control / Adaptive Cruise Control – Troubleshooting
Adaptive Cruise Control – Information Messages - Vehicles With: Adaptive
Cruise Control With Lane Centering
Note: Depending on your vehicle options
and instrument cluster type, not all messages
display or are available.
Note: The system could abbreviate or
shorten certain messages depending upon
which cluster type you have.

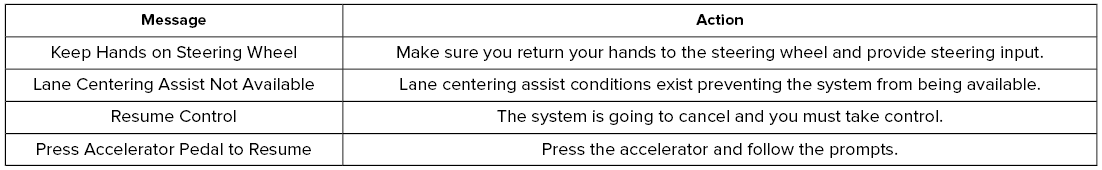

Adaptive Cruise Control – Information Messages - Vehicles With: Adaptive
Cruise Control With Stop and Go
Note: Depending on your vehicle options
and instrument cluster type, not all messages
display or are available.
Note: The system could abbreviate or
shorten certain messages depending upon
which cluster type you have.

Adaptive Cruise Control – Information Messages - Vehicles With:
Intelligent Adaptive Cruise Control
Note: Depending on your vehicle options
and instrument cluster type, not all messages
display or are available.
Note: Certain messages may be abbreviated
or shortened depending upon which cluster
type you have.

You can set a permanent speed tolerance
that is above or below the detected speed
limit.
Use the touchscreen to select the following:
Select Settings...
Other information:
Removal
NOTE:
Removal steps may contain installation details.
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
Remove the bolts and the duct section.
Torque:
25 lb...
Diagnostic Trouble Code (DTC) Chart
Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation).
Diagnostic Trouble Code Chart
Module
DTC
Description
Action
IPMB
B1303:13
Park Assist Switch:Circuit Open
GO to Pinpoint Test D
IPMB
B1303:9E
Park Assist Switch:Stuck On
GO to Pinpoint Test D
IPMB
B1B36:08
Right Front Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test I
IPMB
B1B36:96
Right Front Outer Sensor: Component Internal Failure
GO to Pinpoint Test N
IPMB
B1B36:98
Right Front Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
IPMB
B1B38:08
Right Front Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test J
IPMB
B1B38:96
Right Front Inner Sensor: Component Internal Failure
GO to Pinpoint Test N
IPMB
B1B38:98
Right Front Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
IPMB
B1B40:08
Left Front Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test K
IPMB
B1B40:96
Left Front Outer Sensor: Component Internal Failure
GO to Pinpoint Test N
IPMB
B1B40:98
Left Front Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
IPMB
B1B42:08
Left Front Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test L
IPMB
B1B42:96
Left Front Inner Sensor: Component Internal Failure
GO to Pinpoint Test N
IPMB
B1B42:98
Left Front Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
IPMB
B1B44:08
Right Rear Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test E
IPMB
B1B44:96
Right Rear Outer Sensor: Component Internal Failure
GO to Pinpoint Test M
IPMB
B1B44:98
Right Rear Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
IPMB
B1B46:08
Right Rear Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test F
IPMB
B1B46:96
Right Rear Inner Sensor: Component Internal Failure
GO to Pinpoint Test M
IPMB
B1B46:98
Right Rear Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
IPMB
B1B48:08
Left Rear Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test G
IPMB
B1B48:96
Left Rear Outer Sensor: Component Internal Failure
GO to Pinpoint Test M
IPMB
B1B48:98
Left Rear Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
IPMB
B1B50:08
Left Rear Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test H
IPMB
B1B50:96
Left Rear Inner Sensor: Component Internal Failure
GO to Pinpoint Test M
IPMB
B1B50:98
Left Rear Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
IPMB
B1B57:11
Front Sensors Power Circuit: Circuit Short To Ground
GO to Pinpoint Test B
IPMB
B1B58:11
Rear Sensors Power Circuit: Circuit Short To Ground
GO to Pinpoint Test C
IPMB
U0428:00
Invalid Data Received From Steering Angle Sensor Module:No Sub Type Information
GO to Pinpoint Test Z
PAM
B1303:13
Park Assist Switch:Circuit Open
GO to Pinpoint Test D
PAM
B1303:9E
Park Assist Switch:Stuck On
GO to Pinpoint Test D
PAM
B1B36:08
Right Front Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test I
PAM
B1B36:1F
Right Front Outer Sensor:Circuit Intermittent
GO to Pinpoint Test I
PAM
B1B36:31
Right Front Outer Sensor:No Signal
GO to Pinpoint Test I
PAM
B1B36:96
Right Front Outer Sensor: Component Internal Failure
GO to Pinpoint Test N
PAM
B1B36:98
Right Front Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
PAM
B1B38:08
Right Front Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test J
PAM
B1B38:1F
Right Front Inner Sensor:Circuit Intermittent
GO to Pinpoint Test J
PAM
B1B38:31
Right Front Inner Sensor:No Signal
GO to Pinpoint Test J
PAM
B1B38:96
Right Front Inner Sensor: Component Internal Failure
GO to Pinpoint Test N
PAM
B1B38:98
Right Front Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
PAM
B1B40:08
Left Front Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test K
PAM
B1B40:1F
Left Front Outer Sensor:Circuit Intermittent
GO to Pinpoint Test K
PAM
B1B40:31
Left Front Outer Sensor:No Signal
GO to Pinpoint Test K
PAM
B1B40:96
Left Front Outer Sensor: Component Internal Failure
GO to Pinpoint Test N
PAM
B1B40:98
Left Front Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
PAM
B1B42:08
Left Front Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test L
PAM
B1B42:1F
Left Front Inner Sensor:Circuit Intermittent
GO to Pinpoint Test L
PAM
B1B42:31
Left Front Inner Sensor:No Signal
GO to Pinpoint Test L
PAM
B1B42:96
Left Front Inner Sensor: Component Internal Failure
GO to Pinpoint Test N
PAM
B1B42:98
Left Front Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test O
PAM
B1B44:08
Right Rear Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test E
PAM
B1B44:1F
Right Rear Outer Sensor:Circuit Intermittent
GO to Pinpoint Test E
PAM
B1B44:31
Right Rear Outer Sensor:No Signal
GO to Pinpoint Test E
PAM
B1B44:96
Right Rear Outer Sensor: Component Internal Failure
GO to Pinpoint Test M
PAM
B1B44:98
Right Rear Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
PAM
B1B46:08
Right Rear Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test F
PAM
B1B46:1F
Right Rear Inner Sensor:Circuit Intermittent
GO to Pinpoint Test F
PAM
B1B46:31
Right Rear Inner Sensor:No Signal
GO to Pinpoint Test F
PAM
B1B46:96
Right Rear Inner Sensor: Component Internal Failure
GO to Pinpoint Test M
PAM
B1B46:98
Right Rear Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
PAM
B1B48:08
Left Rear Outer Sensor:Bus Signal/Message Failure
GO to Pinpoint Test G
PAM
B1B48:1F
Left Rear Outer Sensor:Circuit Intermittent
GO to Pinpoint Test G
PAM
B1B48:31
Left Rear Outer Sensor:No Signal
GO to Pinpoint Test G
PAM
B1B48:96
Left Rear Outer Sensor: Component Internal Failure
GO to Pinpoint Test M
PAM
B1B48:98
Left Rear Outer Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
PAM
B1B50:08
Left Rear Inner Sensor:Bus Signal/Message Failure
GO to Pinpoint Test H
PAM
B1B50:1F
Left Rear Inner Sensor:Circuit Intermittent
GO to Pinpoint Test H
PAM
B1B50:31
Left Rear Inner Sensor:No Signal
GO to Pinpoint Test H
PAM
B1B50:96
Left Rear Inner Sensor: Component Internal Failure
GO to Pinpoint Test M
PAM
B1B50:98
Left Rear Inner Sensor:Component Or System Over Temperature
GO to Pinpoint Test P
PAM
B1B57:11
Front Sensors Power Circuit: Circuit Short To Ground
GO to Pinpoint Test B
PAM
B1B58:11
Rear Sensors Power Circuit: Circuit Short To Ground
GO to Pinpoint Test C
PAM
U0100:00
Lost Communication With ECM/PCM "A": No Sub Type Information
GO to Pinpoint Test R
PAM
U0121:00
Lost Communication With Anti-Lock Brake System (ABS) Control Module: No Sub Type Information
GO to Pinpoint Test S
PAM
U0131:00
Lost Communication With Power Steering Control Module: No Sub-Type Information
GO to Pinpoint Test T
PAM
U0138:00
Lost Communication with All Terrain Control Module:No Sub Type Information
GO to Pinpoint Test U
PAM
U0140:00
Lost Communication With Body Control Module: No Sub Type Information
GO to Pinpoint Test V
PAM
U0146:00
Lost Communication With Gateway "A": No Sub Type Information
GO to Pinpoint Test W
PAM
U0155:00
Lost Communication With Instrument Panel Cluster (IPC) Control Module: No Sub Type Information
GO to Pinpoint Test X
PAM
U0164:00
Lost Communication With HVAC Control Module: No Sub Type Information
GO to Pinpoint Test Y
PAM
U0212:00
Lost Communication With Steering Column Control Module: No Sub Type Information
GO to Pinpoint Test AB
PAM
U0252:00
Lost Communication With Lighting Control Module- Rear "B": No Sub Type Information
GO to Pinpoint Test AC
PAM
U0293:00
Lost Communication with Hybrid/EV Powertrain Control Module:No Sub Type Information
GO to Pinpoint Test R
PAM
U0300:57
Internal Control Module Software Incompatibility:Invalid/Incompatible Software Component
GO to Pinpoint Test AG
PAM
U0401:00
Invalid Data Received from ECM/PCM A:No Sub Type Information
GO to Pinpoint Test R
PAM
U0415:00
Invalid Data Received from Anti-Lock Brake System (ABS) Control Module "A":No Sub Type Information
GO to Pinpoint Test S
PAM
U0420:00
Invalid Data Received from Power Steering Control Module "A":No Sub Type Information
GO to Pinpoint Test T
PAM
U0422:00
Invalid Data Received From Body Control Module:No Sub Type Information
GO to Pinpoint Test V
PAM
U0423:82
Invalid Data Received from Instrument Panel
Cluster Control Module:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test X
PAM
U0424:00
Invalid Data Received From HVAC Control Module:No Sub Type Information
GO to Pinpoint Test Y
PAM
U0424:82
Invalid Data Received From HVAC Control Module:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test Y
PAM
U0485:82
Invalid Data Received From Radio:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test AA
PAM
U0553:82
Invalid Data Received From Lighting Control
Module-Rear "B":Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test AC
PAM
U0554:00
Invalid Data Received From Accessory Protocol Interface Module:No Sub Type Information
GO to Pinpoint Test AD
PAM
U0554:82
Invalid Data Received From Accessory
Protocol Interface Module:Alive/Sequence Counter Incorrect/Not Updated
GO to Pinpoint Test AD
PAM
U0594:00
Invalid Data Received From Hybrid/EV Powertrain Control Module:No Sub Type Information
GO to Pinpoint Test R
PAM
U1000:00
Solid State Driver Protection Active -Driver Disabled:No Sub Type Information
GO to Pinpoint Test AE
PAM
U2024:41
Control Module Cal-Config Data:General Checksum Failure
GO to Pinpoint Test AF
PAM
U2100:00
Initial Configuration Not Complete:No Sub Type Information
GO to Pinpoint Test AF
PAM
U2101:00
Control Module Configuration Incompatible:No Sub Type Information
GO to Pinpoint Test AF
PAM
U3000:44
Control Module:Data Memory Failure
GO to Pinpoint Test AG
PAM
U3000:45
Control Module:Program Memory Failure
GO to Pinpoint Test AG
PAM
U3000:46
Control Module:Calibration/Parameter Memory Failure
GO to Pinpoint Test AG
PAM
U3000:49
Control Module:Internal Electronic Failure
GO to Pinpoint Test AG
Symptom Chart(s)
Symptom Chart: Parking Aid
Condition
Possible Sources
Actions
A module does not communicate with the diagnostic scan tool
Fuse
Wiring, terminals or connectors
PAM
IPMB
REFER to: Communications Network (418-00 Module Communications Network, Diagnosis and Testing)...
