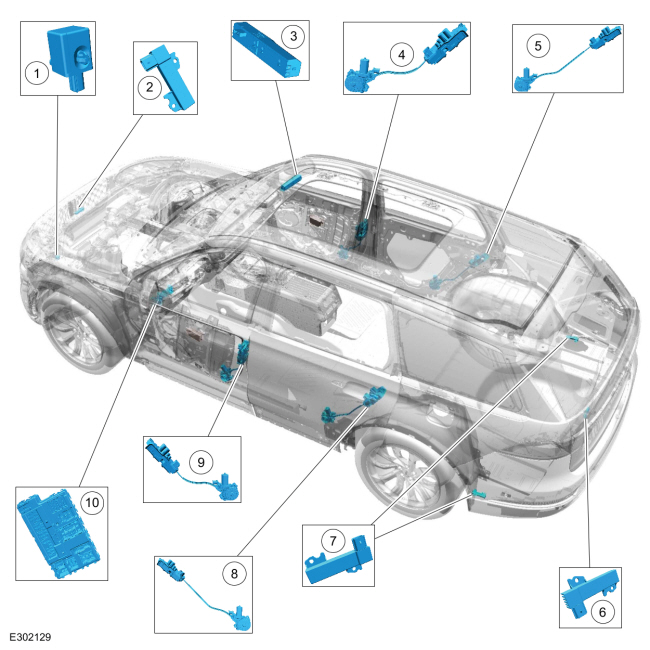

Lincoln Aviator: Handles, Locks, Latches and Entry Systems / Description and Operation - Handles, Locks, Latches and Entry Systems - Component Location
NOTE:
Shown with optional door cinch motors.
| Item |
Description |
| 1 |
Exterior sounder |
| 2 |
Approach detection antenna |
| 3 |
RTM
|
| 4 |
DCMF
|
| 5 |
DCMH
|
| 6 |
Keyless entry rear antenna |
| 7 |
Keyless entry door antennas |
| 8 |
DCMG
|
| 9 |
DCME
|
| 10 |
BCM
|
Overview
NOTE:
The Phone As A Key feature can also be used to lock/unlock
the vehicle. Refer to section 419-01C for information regarding this
feature...
Other information:
System Operation
System Diagram
E344777
