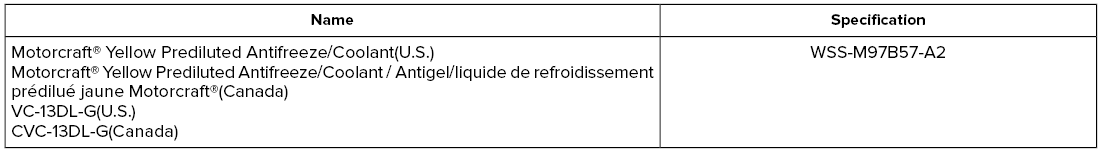

Lincoln Aviator: Capacities and Specifications - Excluding: Plug-In Hybrid Electric Vehicle (PHEV) / Engine Coolant

Automatic Transmission

Note: Only use MERCON® ULV transmission fluid for automatic transmissions that require MERCON® ULV transmission fluid. The use of any other fluid could cause transmission damage...

Engine Oil

An oil that displays this symbol conforms to current engine, emission system and fuel economy performance standards of ILSAC. We recommend Motorcraft® motor oil for your vehicle...
