Special Tool(s) / General Equipment

412-001 (T71P-19703-B)
Remover, Compressor Pulley

Activation

Remove the A/C compressor. Refer to Air Conditioning A/C Compressor procedure in Group 412.

NOTE: If equipped with spring rubber clutch.

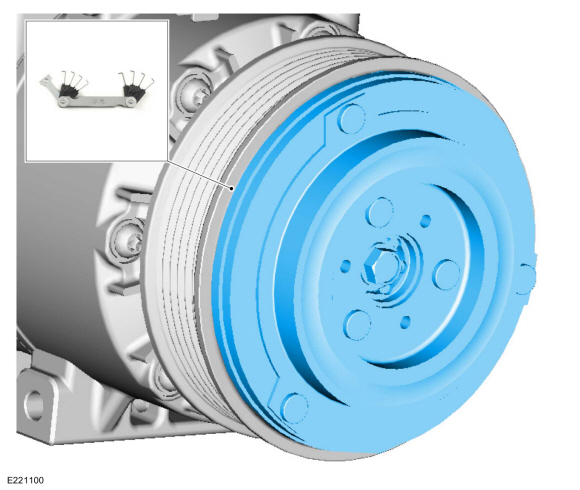

Using the universal clutch holding tool, hold the clutch and remove the A/C clutch disc and hub bolt.

- For fixed compressor
  Torque: 177 lb.in (20 Nm)
- For EVDC compressor
  Torque: 128 lb.in (14.5 Nm)

NOTE: If equipped with spring plate clutch.

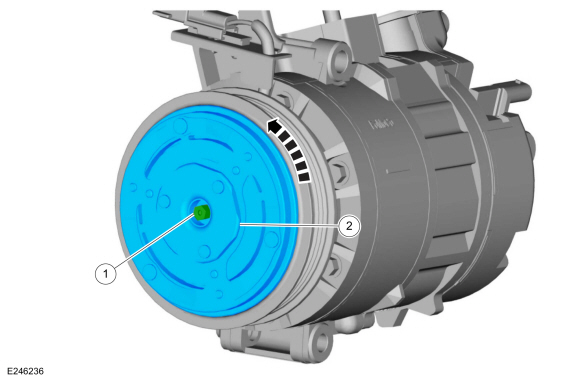

- Hold the A/C compressor shaft.
- Rotate the A/C clutch hub counter clockwise to remove.
- For fixed compressor
  Torque: 177 lb.in (20 Nm)
- For EVDC compressor
  Torque: 128 lb.in (14.5 Nm)

NOTE: Replacing the snap ring is only necessary when installing a new component.

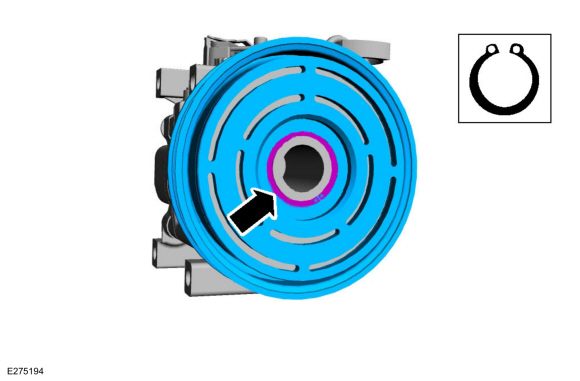

Remove the A/C compressor pulley snap ring.

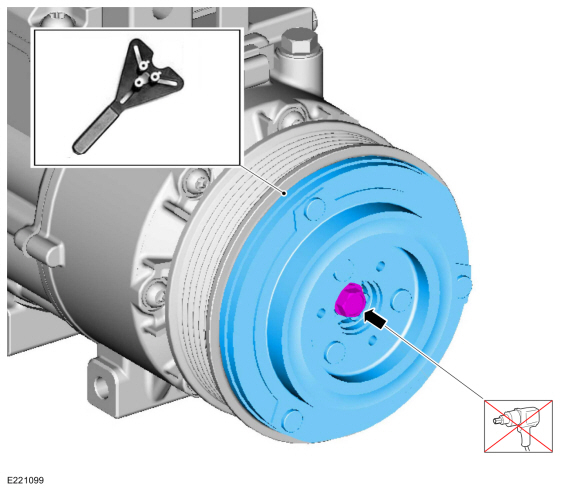

NOTE: Do not use air tools. Damage to the A/C clutch pulley or A/C compressor may result.
Remove the A/C compressor pulley.

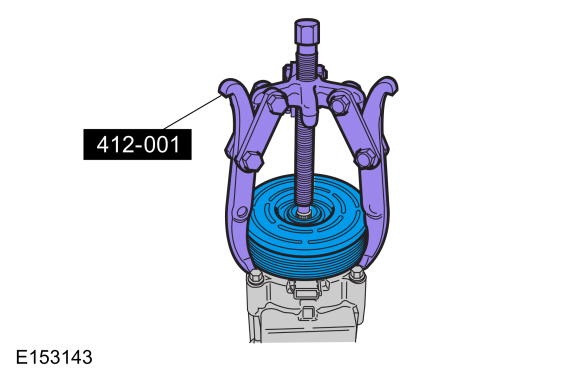

Install Special Service Tool: 412-001 (T71P-19703-B) Remover, Compressor Pulley.

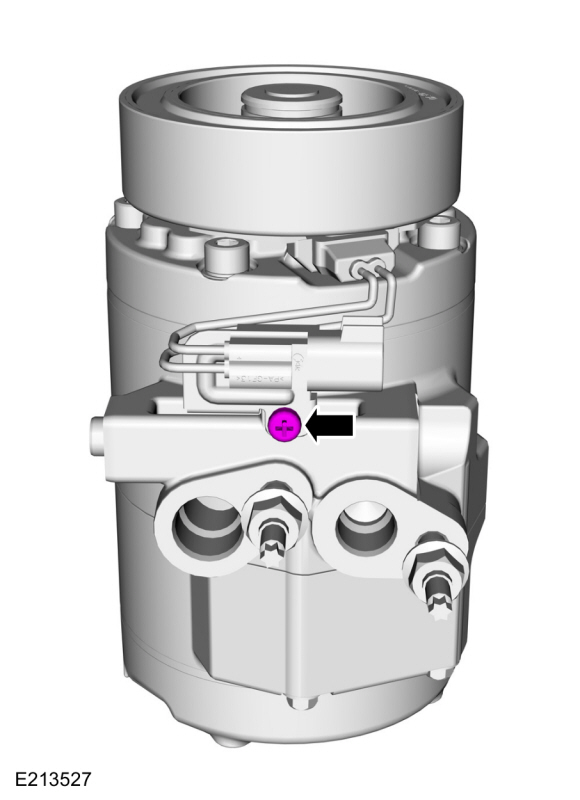

Remove the A/C clutch field coil electrical connector retainer.
Torque: 35 lb.in (4 Nm)

NOTE: Replacing the snap ring is only necessary when installing a new component.

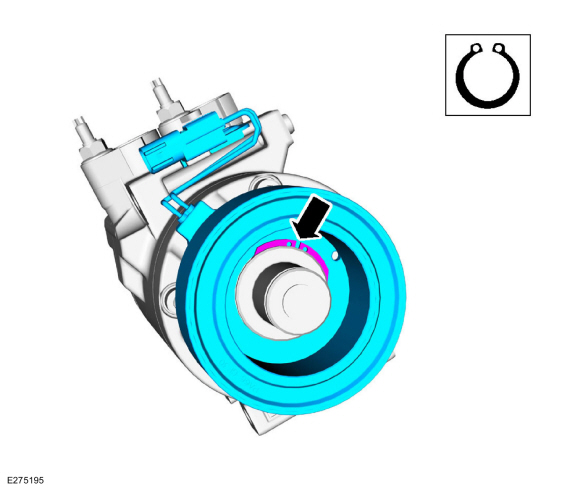

Remove the A/C clutch field coil snap ring, and remove the clutch field coil.

- Visually inspect the A/C clutch disc and hub, compressor pulley and clutch field coil for damage.
- Inspect for physical damage, including cracked or melted components or discoloration due to excessive heat.
- Inspect for excessive wear, including grooving in the A/C clutch disc and hub or the compressor pulley that is more than fingernail depth.
- Inspect for roughness in the A/C compressor pulley bearing.

To install, reverse the steps in this procedure.

NOTE: Spring plate clutch similar.
Measure and adjust the clutch air gap by removing or adding clutch disc and hub spacers. Refer to Air Conditioning A/C Clutch Air Gap Adjustment procedure in Group 412.
