Lincoln Aviator: Vehicle Dynamic Suspension / General Procedures - Air Suspension System Depressurize and Pressurize
Pressure release
-

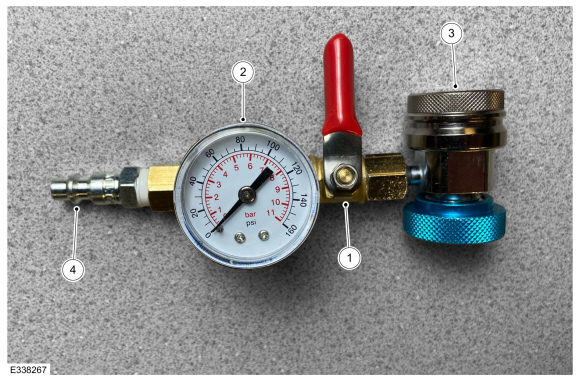

Assemble the following items:
-
Shut off valve
-
Pressure regulator with gauge
-
R-134a low side refrigerant line fitting
-
Air line male quick connect fitting
-
Shut off valve
.jpg) |
-
Position the vehicle on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

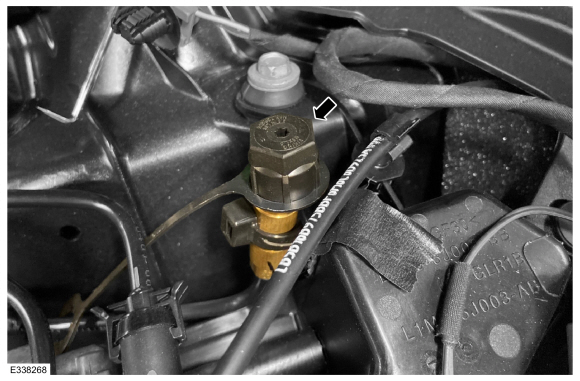

Typical air suspension service port.
.jpg) |
-

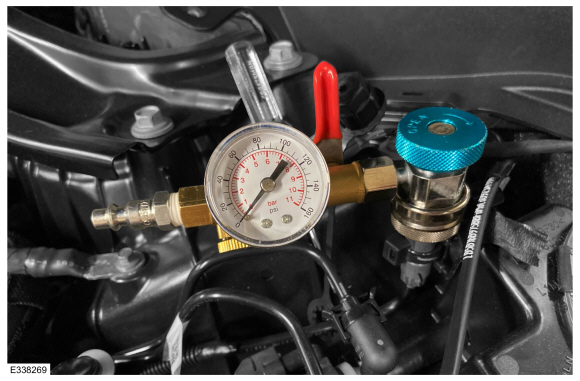

Typical hookup for depressurization.
.jpg) |
-

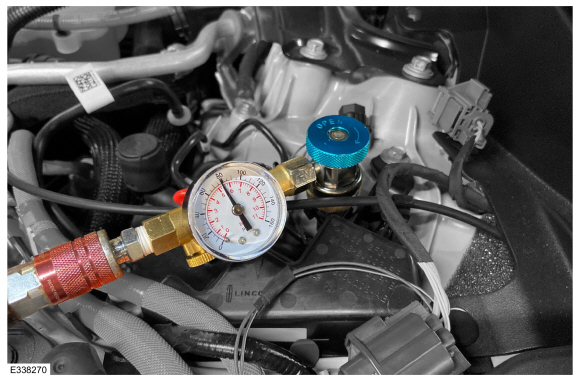

Typical hookup for pressurization.
.jpg) |
-
NOTICE: Shop air source must not contain lubrication. Air must be free of moisture and lubrication or air suspension system damage will occur.
NOTE: Monitor the pressure gauge during the filling process as adjustments will be required to maintain the pressure.
Connect a scan tool and follow the FDRS Pressurization and Depressurization procedure.
