Lincoln Aviator: Rear Drive Axle/Differential / General Procedures - Differential Fluid Level Check
Materials
Name |
Specification |
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant XY-75W85-QL |
WSS-M2C942-A
|
Check
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

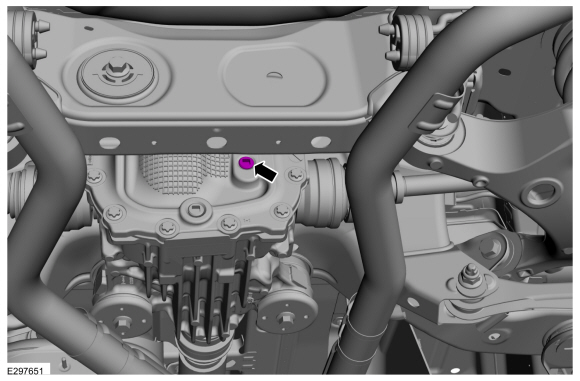

Remove the differential fluid fill plug.
-

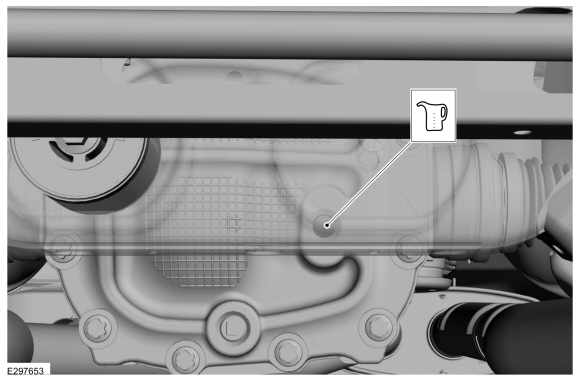

Check and top-off the differential with clean
differential gear lubricant. The differential gear lubricant level
should be to the bottom of the fluid fill plug opening.
Refer to: Specifications (205-02 Rear Drive Axle/Differential, Specifications).
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant
/ XY-75W85-QL
(WSS-M2C942-A)
-

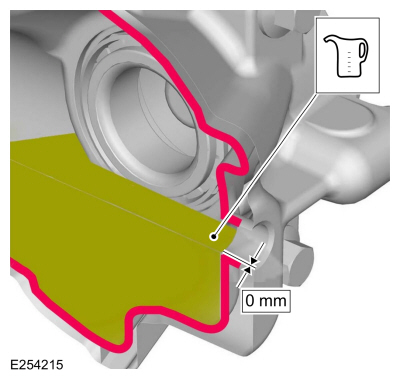

Ensure the RDU gear lubricant level to the bottom of the filler hole (as shown).
-
Install the differential fluid fill plug.
Torque:
25 lb.ft (34 Nm)
