Lincoln Aviator: Front Drive Axle/Differential / General Procedures - Differential Fluid Level Check
Materials
| Name |
Specification |
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL |
WSL-M2C192-A
|
Check
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting, Description and Operation).
-

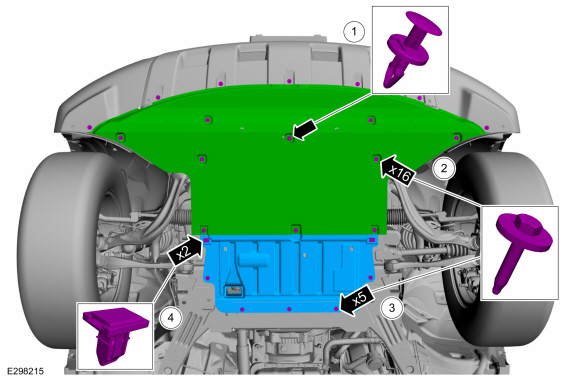

Remove the engine undershield.
-
Remove the pin-type retainer.
-
Remove the bolts and the radiator air deflector.
-
Remove the bolts.
-
Remove the retainers and the engine undershield.
-

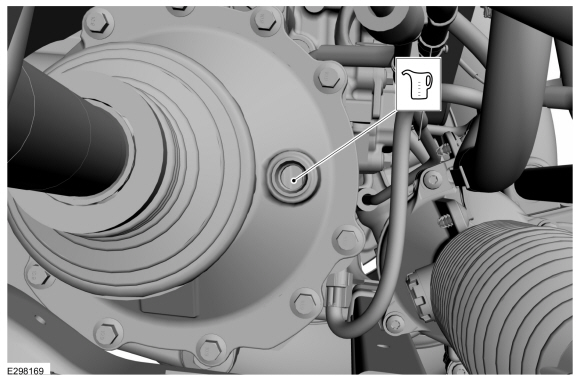

Remove the front differential fill plug.
-
Check and top off the differential with clean

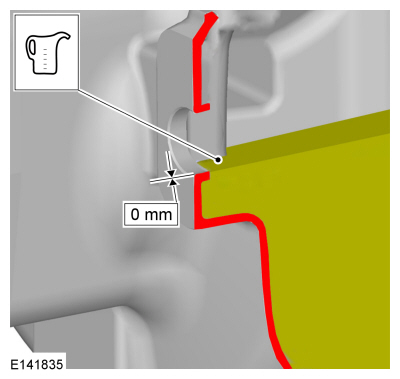

differential gear lubricant. The differential gear lubricant level
should be to the bottom of the filler hole.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant
/ XY-75W140-QL
(WSL-M2C192-A)
-
Ensure the front differential gear lubricant is filled to the bottom of the filler plug hole.
-

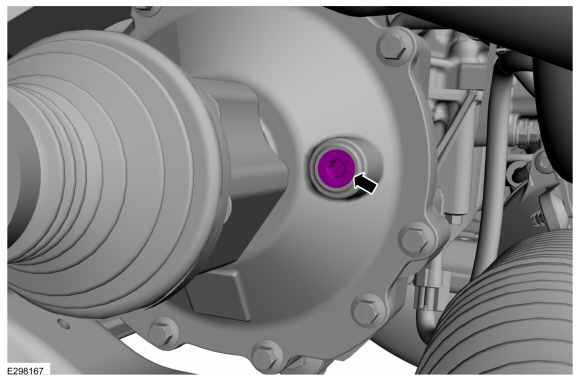

Install the front differential fill plug.
Torque:
30 lb.ft (40 Nm)
-
Install the engine undershield
-
Position the engine undershield and install the pin-type retainer.
-
Install the bolts.
-
Install the radiator air deflector and the bolts.
-
Install the radiator air deflector retainers.
Materials
Name
Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-A
Draining
With the vehicle in NEUTRAL, position it on a hoist...
Removal
Remove the front driveshaft.
Refer to: Front Driveshaft (205-01 Driveshaft, Removal and Installation).
Drain the front differential fluid...
