Lincoln Aviator: Suspension System - General Information / General Procedures - Front Toe Adjustment
Special Tool(s) /
General Equipment
Adjustment
NOTE:
Make sure that the vehicle is standing on a level surface.
NOTE:
Before carrying out a toe adjustment, check the tires for
the correct pressure. Inspect the tires for incorrect wear or damage.
Inspect the suspension for wear or damage.
-

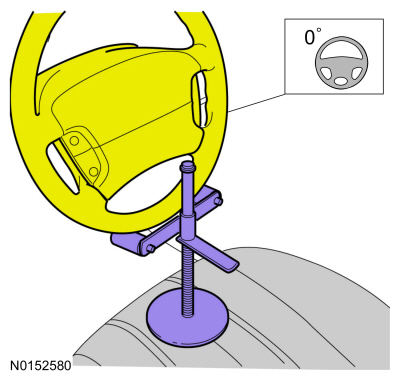

Steering wheel in straight ahead position.
-
Using alignment equipment and the manufacturer's instructions, check the front toe setting on both sides.
Use the General Equipment: Wheel Alignment System
-
-
On both sides.

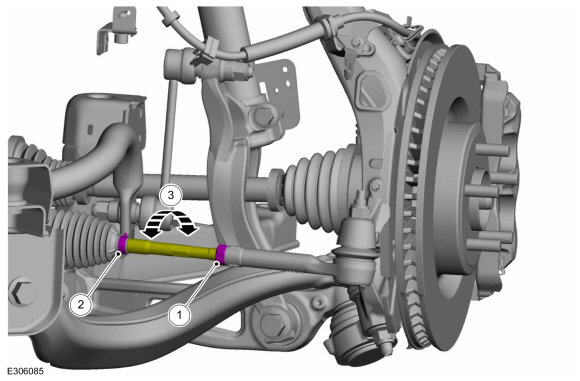

Loosen the outer tie rod end jamb nut.
Torque:
35 lb.ft (48 Nm)
-
On both sides.
Position aside the steering gear boot clamp.
-
NOTE:
Do not allow the steering gear bellows to twist when the inner tie rod is rotated.
Rotate the inner tie-rods an equal amount in either a
clockwise or a counterclockwise direction to adjust the toe setting on
both sides.
-
Recheck the toe settings and adjust as necessary.
